Hexagonal nut DIN 934 V2A 6 | 5.2 | 10
morepic-1 morepic-2

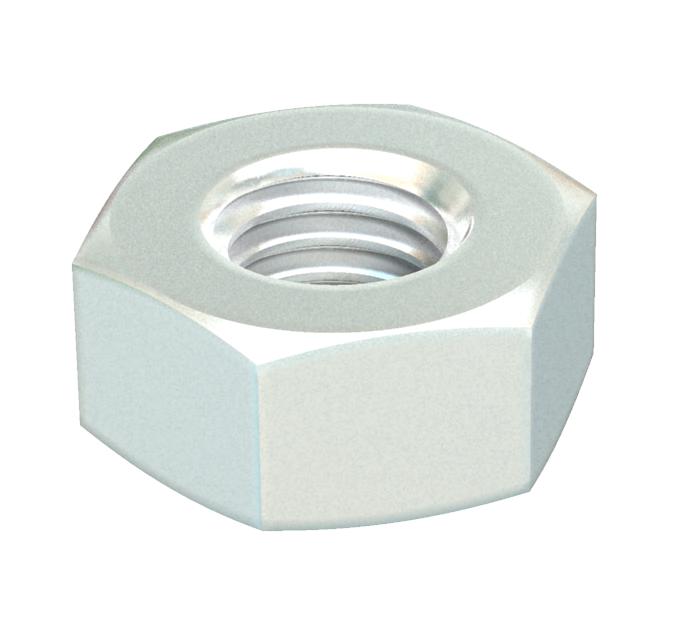

Hexagonal nut DIN 934 V2A

Item no. 3397068 | EAN 4012195297673

Product description
Product description
Hexagonal nut to DIN 934 with metric thread.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Dimension M6
Dimension d 6 mm
Dimension h 5,2 mm
Halogen-free yes
Left thread no
Material Stainless steel
Nut version Nut
Screw system nut Hexagon head
Self-locking no
Surface Bright, treated
Thread M6
Thread metric 6
Thread type Metric
WAF 10
With flange no
All types

All types

Types Dimension d Dimension h WAF Item no. Quantity SSU
HN M6 A2 6 mm 5.2 mm 10 3397068
100 piece
HN M8 A2 8 mm 6.8 mm 13 3397084
100 piece
HN M10 A2 10 mm 8.4 mm 17 3397106
100 piece
HN M12 A2 12 mm 10.8 mm 19 3397114
100 piece
Downloads

Download

Download

EU declaration of conformity HN M6 A2 / 3397068 , 0.05MB , pdf
Download
REACH Declaration of conformity HN M6 A2 / 3397068 , 0.12MB , pdf
Download
RoHS Declaration of conformity HN M6 A2 / 3397068 , 0.12MB , pdf
Download

HN M6 A2 / 3397068
