Hexagonal nut DIN 934 G 12 | 10.8 | 19

morepic-1

morepic-2

Hexagonal nut DIN 934 G

Item no. 3400123 | EAN 4012195298274

Item no. / Types

Dimension d

Dimension h

WAF

Product description

Product description

Hexagonal nut to DIN 934 with metric thread.

Technical data

Technical data

Dimension	M12
Dimension d	12 mm
Dimension h	10,8 mm
Halogen-free	yes
Left thread	no
Material	Steel
Nut version	Nut
Resistance grade	8.8

Screw system nut	Hexagon head
Self-locking	no
Surface	Electrogalvanized
Thread	M12
Thread metric	12
Thread type	Metric
WAF	19
With flange	no

All types

All types

Types	Dimension d	Dimension h	WAF	Item no.	Quantity	SSU
HN M4 G	4 mm	3.2 mm	7	3400042	piece	100 piece
HN M5 G	5 mm	4.7 mm	8	3400050	piece	100 piece
HN M6 G	6 mm	5.2 mm	10	3400069	piece	100 piece
HN M8 G	8 mm	6.8 mm	13	3400085	piece	100 piece
HN M10 G	10 mm	8.4 mm	17	3400107	piece	100 piece
HN M12 G	12 mm	10.8 mm	19	3400123	piece	100 piece

Downloads

Data sheet HN M12 G / 3400123 , 0.15MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity HN M12 G / 3400123 , 0.05MB , pdf

Download

REACH Declaration of conformity HN M12 G / 3400123 , 0.12MB , pdf

Download

RoHS Declaration of conformity HN M12 G / 3400123 , 0.12MB , pdf

Download

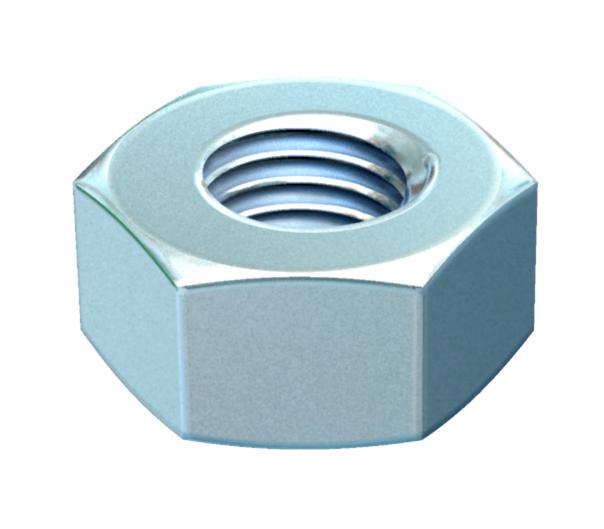

Product graphic HN M12 G / 3400123, 22.73 kB, jpg

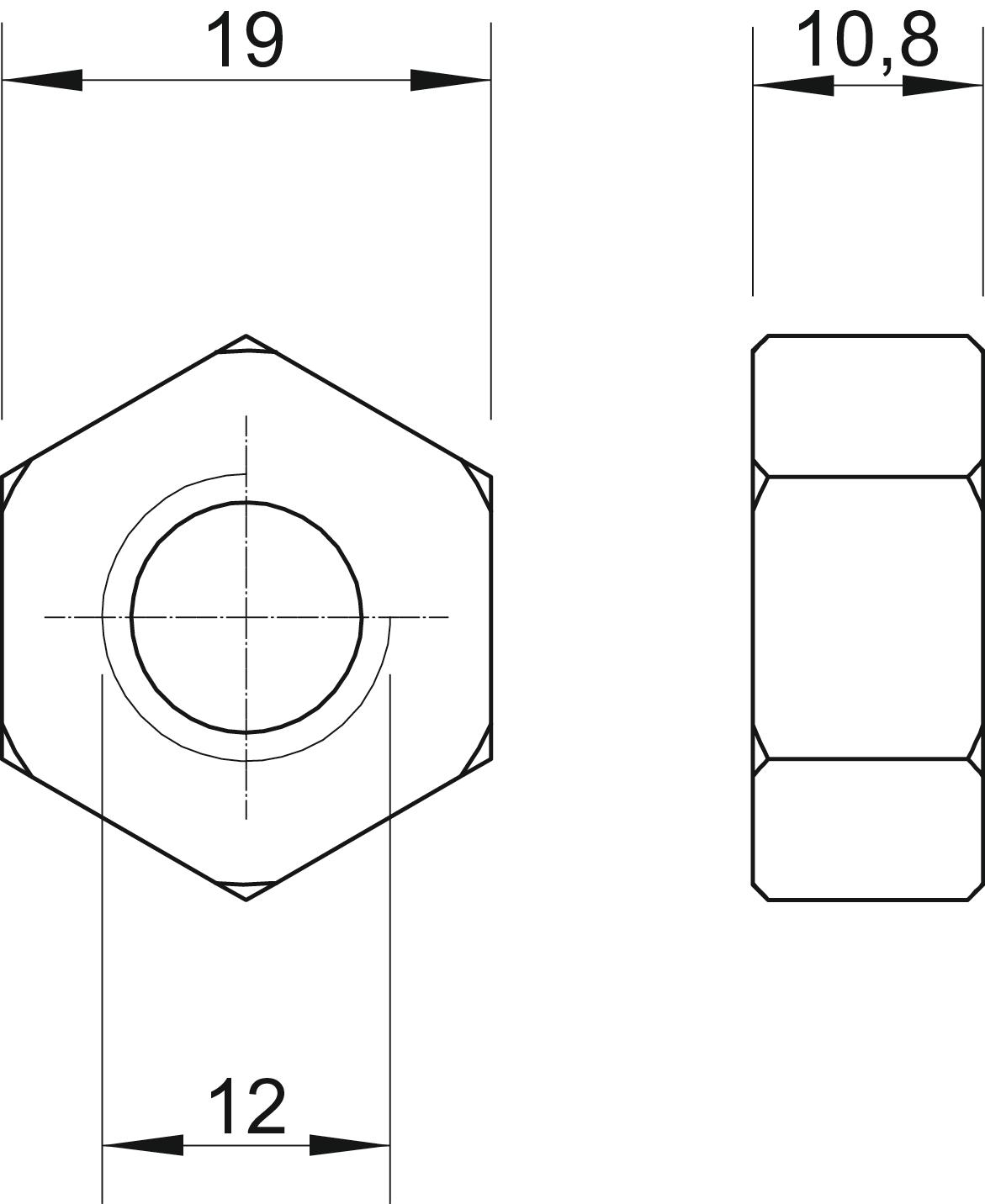

Scale drawing HN M12 G / 3400123, 59.82 kB, jpg

HN M12 G / 3400123

3400123_KSTP1.stp, 47.52 kB
