Hexagonal M6 F 6 | 12 | 10 | 6 | Steel
morepic-1 morepic-2

Hexagonal M6 F

Item no. 3156494 | EAN 4012195255857

6 mm
10
6
Steel
Product description

Product description

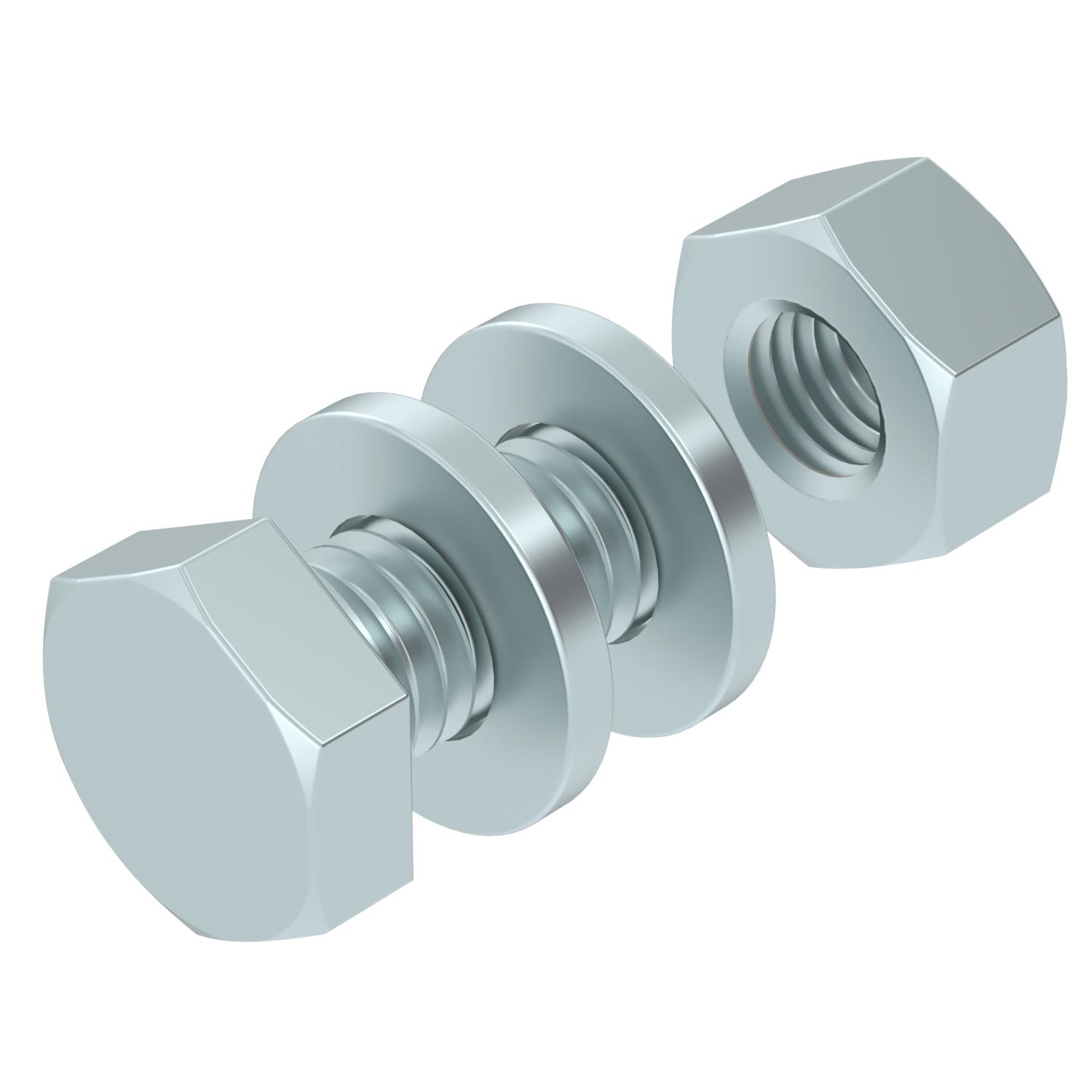

Hexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Dimension M6x12
Dimension d 6 mm
Dimension L 12 mm
Full thread yes
Length 12 mm
Material Steel
Resistance grade 5.6
Surface Hot galvanized
Thread M 6 x 12
Thread increase 1 mm
Thread metric 6
WAF 10
With nut yes
With washer yes
All types

All types

Types Dimension d Dimension L WAF Thread metric Material Item no. Quantity SSU
SKS 6x12 F 6 mm 12 mm 10 6 Steel 3156494
100 piece
SKS 6x20 F 6 mm 20 mm 10 6 Steel 3156516
100 piece
SKS 6x30 F 6 mm 30 mm 10 6 Steel 3156524
100 piece
