Hexagonal bolt M8 F 8 | 16 | 13 | 8 | Steel
morepic-1 morepic-2

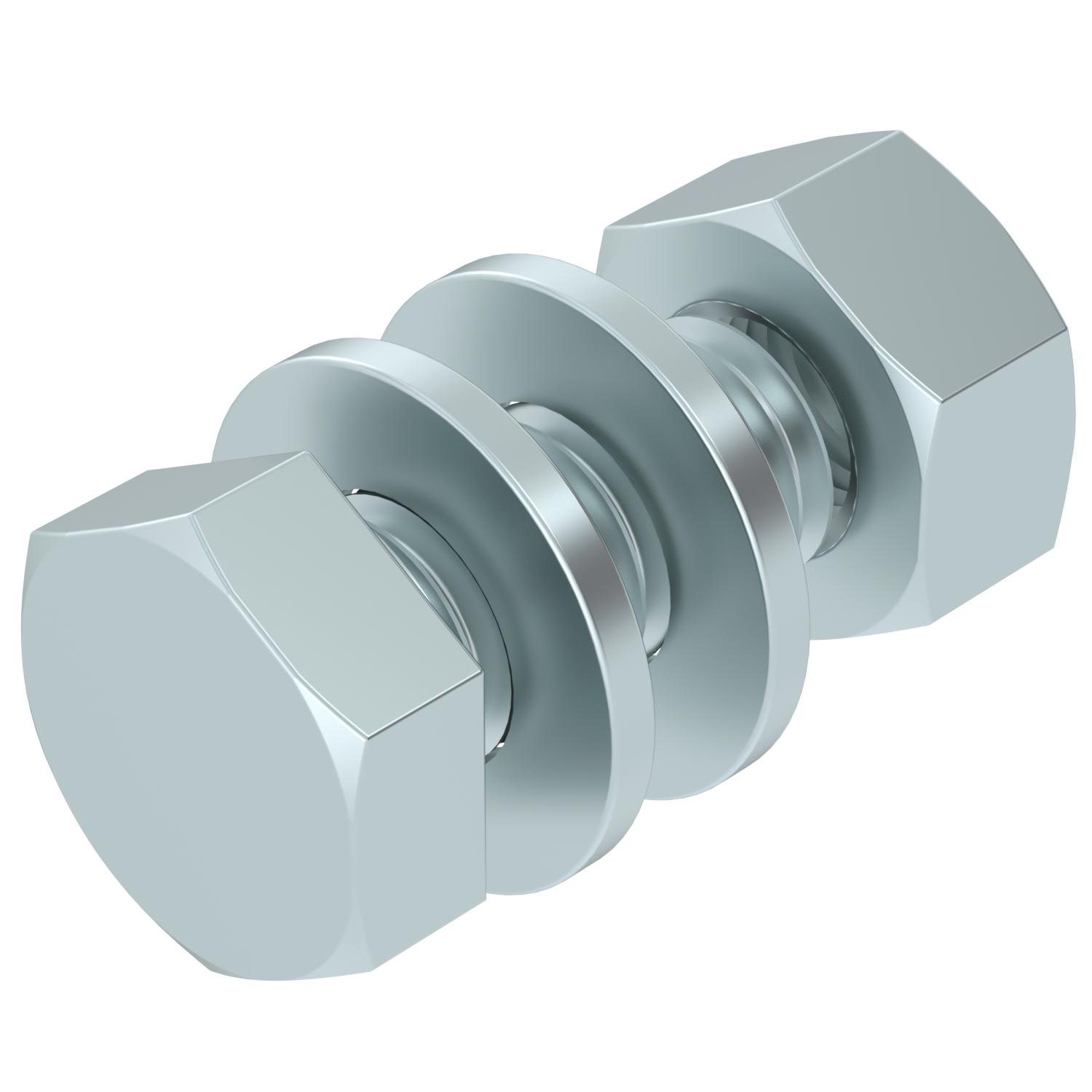

Hexagonal bolt M8 F

Item no. 3158624 | EAN 4012195256571

8 mm
13
8
Steel
Product description
Product description
Hexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour zinc
Dimension M8x16
Dimension d 8 mm
Dimension L 16 mm
Full thread yes
Length 16 mm
Material Steel
Resistance grade 8.8
Surface Hot galvanized
Thread M 8 x 16
Thread increase 1,25 mm
Thread metric 8
WAF 13
With nut yes
With washer yes
All types

All types

Types Dimension d Dimension L WAF Thread metric Material Item no. Quantity SSU
SKS 8x16 F 8 mm 16 mm 13 8 Steel 3158624
50 piece
SKS 8x20 F 8 mm 20 mm 13 8 Steel 3158632
50 piece
SKS 8x30 F 8 mm 30 mm 13 8 Steel 3158640
50 piece
