Hexagonal bolt M12 F 12 | 130 | 19 | 12 | Steel

morepic-1

morepic-2

Hexagonal bolt M12 F

Item no. 6408478 | EAN 4012196479535

Item no. / Types

Dimension d	12 mm

Dimension L

WAF	19

Thread metric	12

Material	Steel

Product description

Product description

Hexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.

Technical data

Technical data

Colour	zinc
Dimension	M12x130
Dimension d	12 mm
Dimension L	130 mm
Dimension l	36 mm
Full thread	yes
Material	Steel
Resistance grade	8.8

Surface	Hot galvanized
Thread	M 12 x 130
Thread increase	1,75 mm
Thread metric	12
WAF	19
With nut	yes
With washer	yes

All types

All types

Types	Dimension d	Dimension L	WAF	Thread metric	Material	Item no.	Quantity	SSU
SKS 12x30 F	12 mm	30 mm	19	12	Steel	3163091	piece	20 piece
SKS 12x80 F	12 mm	80 mm	19	12	Steel	6418287	piece	20 piece
SKS 12x100 F	12 mm	100 mm	19	12	Steel	6418295	piece	20 piece
SKS 12x110 F	12 mm	110 mm	19	12	Steel	6418317	piece	20 piece
SKS 12x130 F	12 mm	130 mm	19	12	Steel	6408478	piece	20 piece

Downloads

Data sheet SKS 12x130 F / 6408478 , 0.14MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity SKS 12x130 F / 6408478 , 0.22MB , pdf

REACH Declaration of conformity SKS 12x130 F / 6408478 , 0.12MB , pdf

Download

RoHS Declaration of conformity SKS 12x130 F / 6408478 , 0.12MB , pdf

Download

Selection aid Auswahlhilfe Kabelrinnen, schraubbar , 2.17MB , pdf

Selection aid Auswahlhilfe Kabelrinnen, Magic , 0.25MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

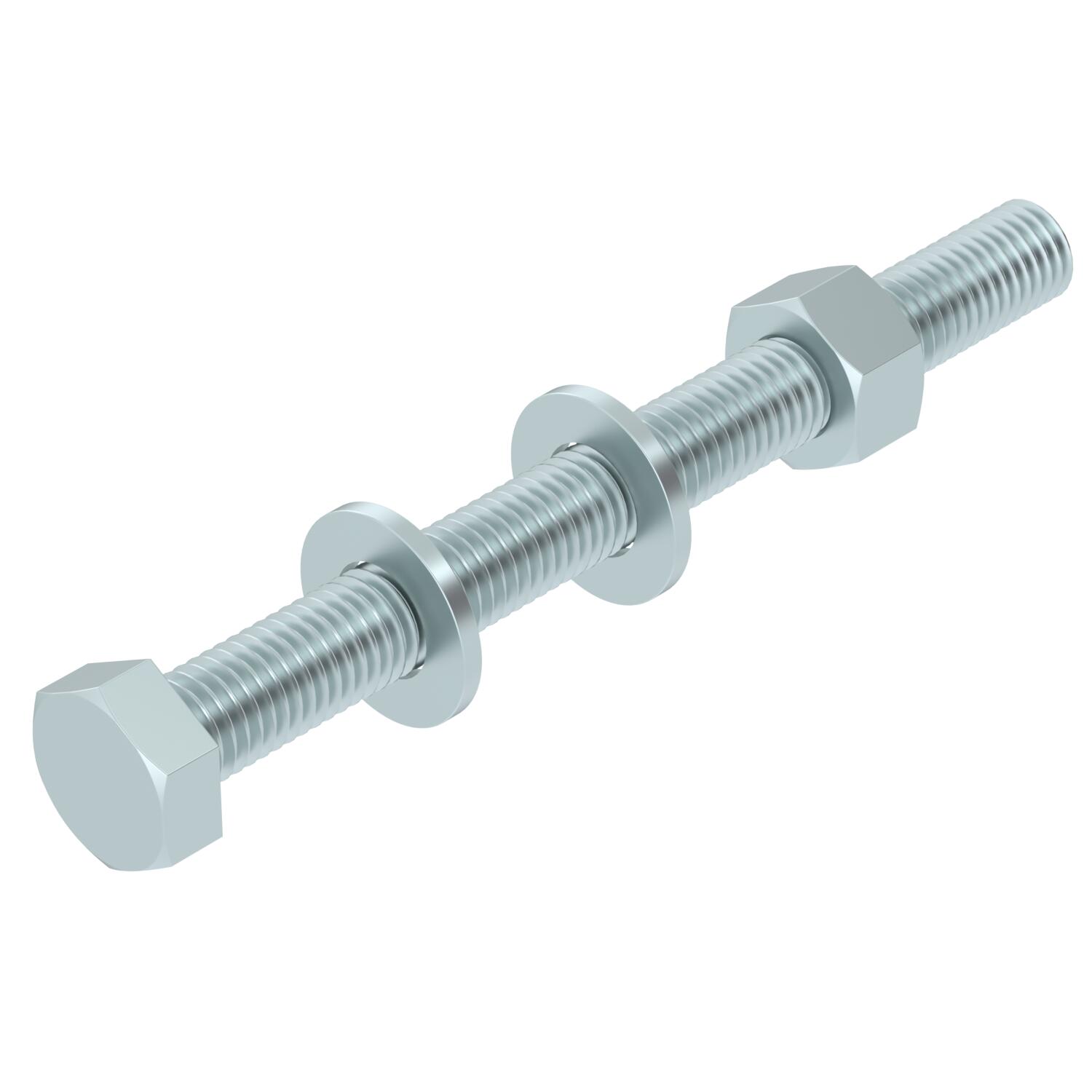

Product graphic SKS 12x130 F / 6408478, 52.83 kB, jpg

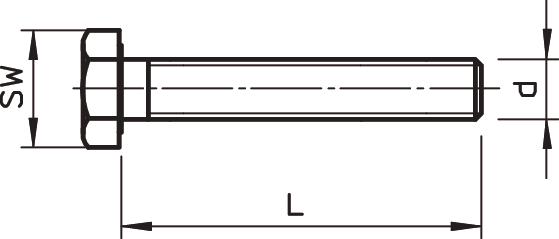

Scale drawing SKS 12x130 F / 6408478, 12.49 kB, jpg

SKS 12x130 F / 6408478

6408478_KSTP1.stp, 72.25 kB
