- Product description
-

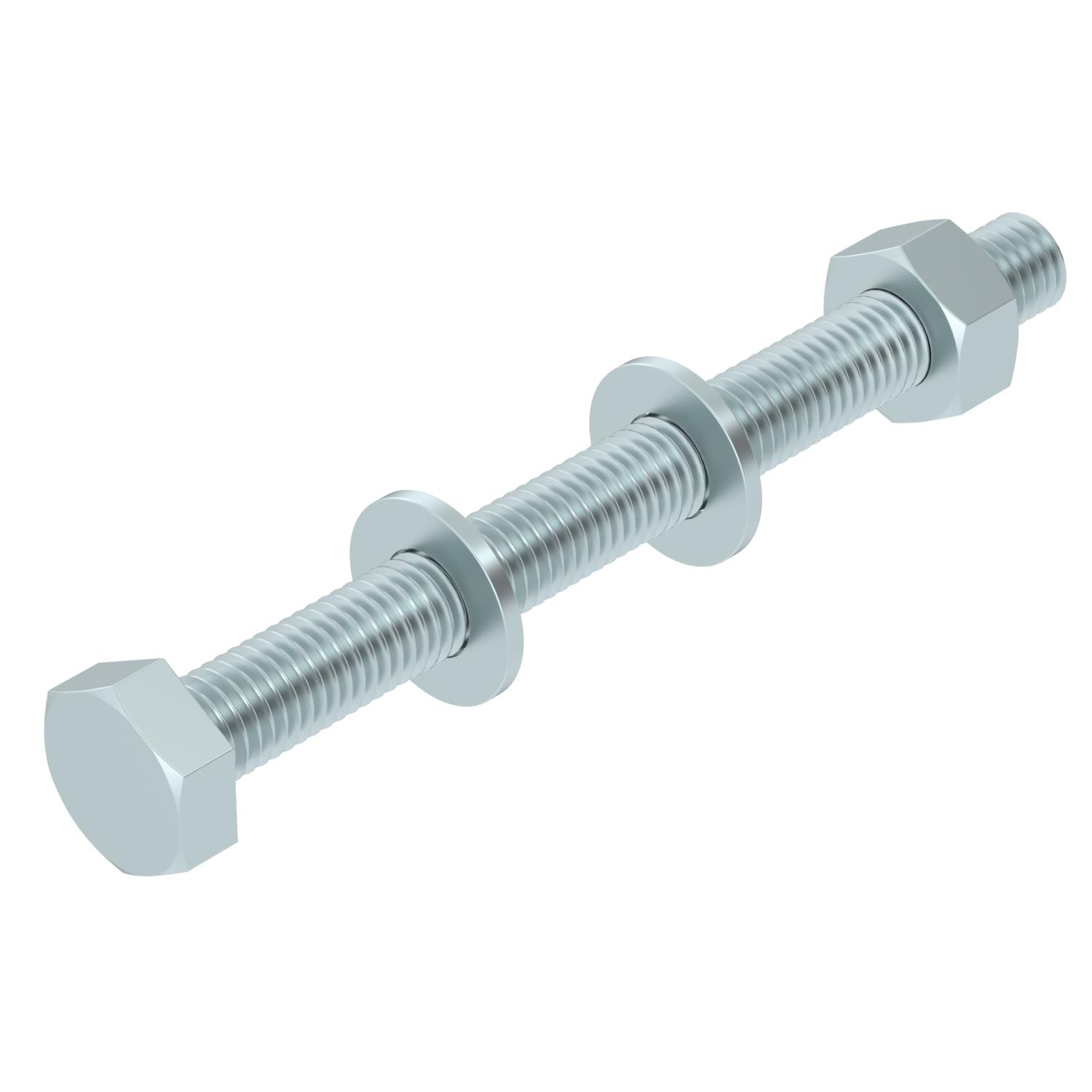

Product descriptionHexagonal bolt for mounting trapezoidal fastening TPB 100, with shaft and thread, including hexagonal nut and 2 washers.
- Technical data
-
Technical data

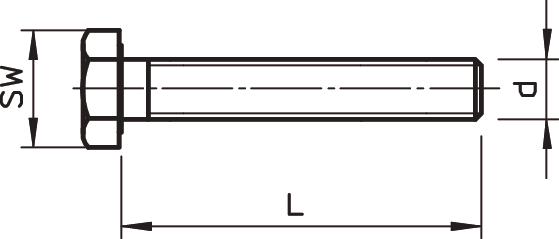

Colour zinc Dimension M10x110 Dimension d 10 mm Dimension l 30 mm Dimension L 110 mm Full thread yes Length 110 mm Material Steel Resistance grade 5.6 Surface Electrogalvanized Thread M10 Thread increase 1,5 mm Thread metric 10 WAF 17 With nut yes With washer yes - All types
- Downloads
-
Data sheet SKS 10x110 G / 6418244 , 0.14MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity SKS 10x110 G / 6418244 , 0.22MB , pdfREACH Declaration of conformity SKS 10x110 G / 6418244 , 0.12MB , pdfRoHS Declaration of conformity SKS 10x110 G / 6418244 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
