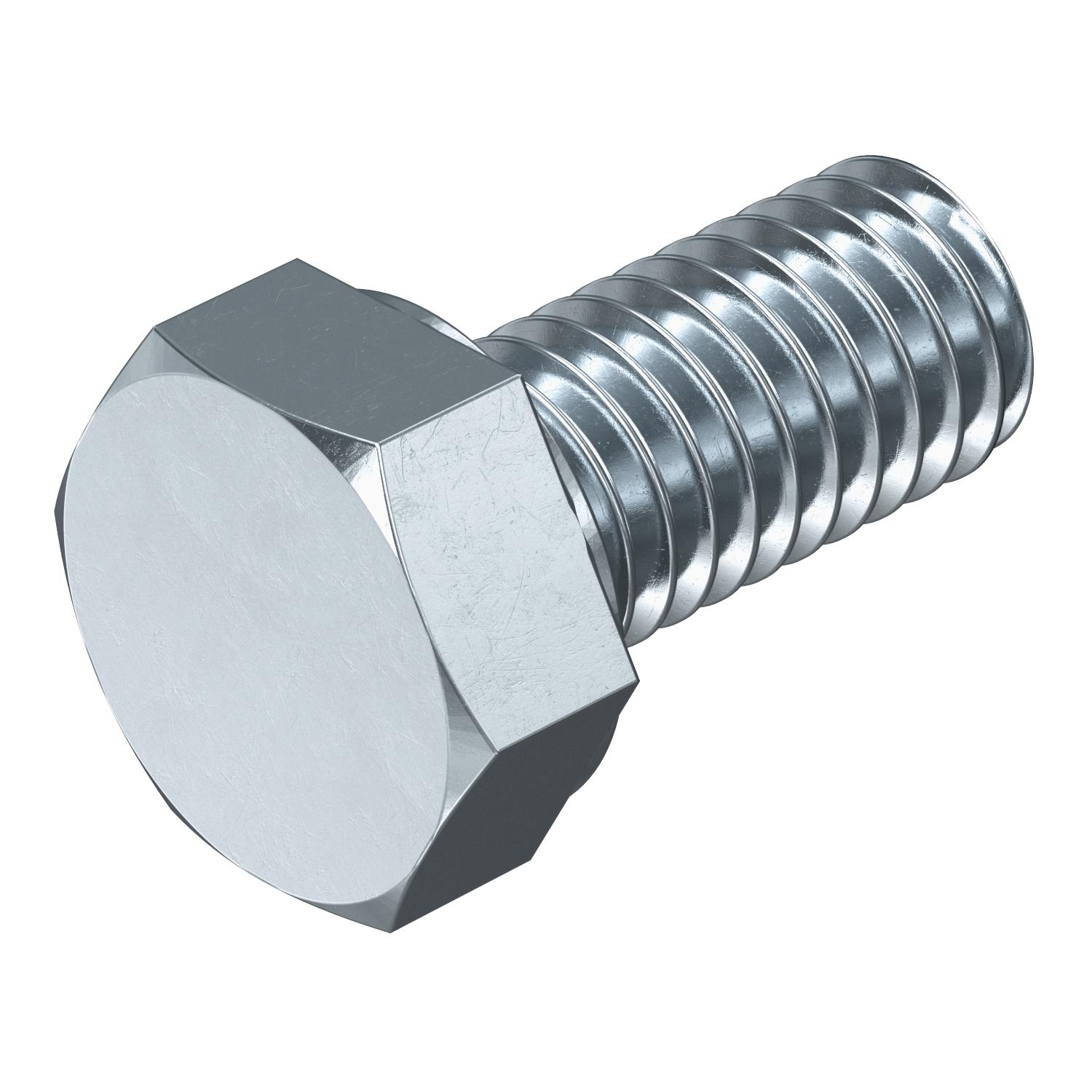

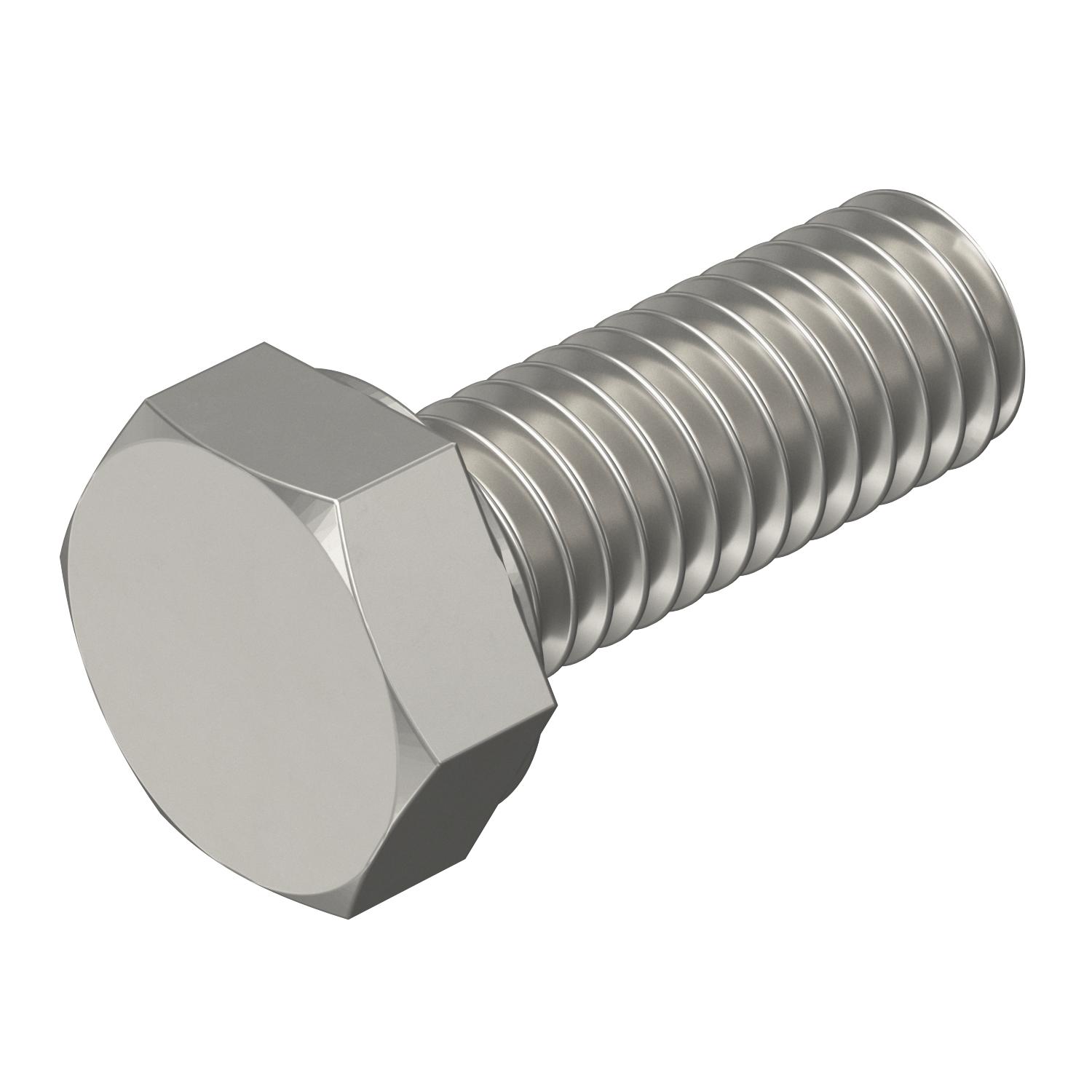

Hexagonal bolt DIN 933 A4

Item no. / Types

Dimension d

Dimension L

WAF

Thread metric

Material	Stainless steel

Product description

Product description

Hexagonal bolt according to DIN 933 with metric thread.

Technical data

All types

All types

Types	Dimension d	Dimension L	WAF	Thread metric	Material	Item no.	Quantity	SSU
HHS M6x16 A4	6 mm	16 mm	10	6	Stainless steel	3156016	piece	100 piece
HHS M6x20 A4	6 mm	20 mm	10	6	Stainless steel	3156018	piece	100 piece
HHS M6x25 A4	6 mm	25 mm	10	6	Stainless steel	3156019	piece	100 piece
HHS M6x30 A4	6 mm	30 mm	10	6	Stainless steel	3156020	piece	100 piece
HHS M6x35 A4	6 mm	35 mm	10	6	Stainless steel	3156021	piece	100 piece
HHS M6x40 A4	6 mm	40 mm	10	6	Stainless steel	3156022	piece	100 piece
HHS M8x20 A4	8 mm	20 mm	13	8	Stainless steel	3156024	piece	100 piece
HHS M8x25 A4	8 mm	25 mm	13	8	Stainless steel	3156025	piece	100 piece
HHS M8x30 A4	8 mm	30 mm	13	8	Stainless steel	3156026	piece	100 piece
HHS M8x40 A4	8 mm	40 mm	13	8	Stainless steel	3156027	piece	100 piece
HHS M8x50 A4	8 mm	50 mm	13	8	Stainless steel	3156028	piece	100 piece
HHS M12x40 A4	12 mm	40 mm	19	12	Stainless steel	3156029	piece	50 piece
HHS M10x20 A4	10 mm	20 mm	17	10	Stainless steel	3156031	piece	100 piece
HHS M10x30 A4	10 mm	30 mm	17	10	Stainless steel	3156032	piece	100 piece
HHS M10x40 A4	10 mm	40 mm	17	10	Stainless steel	3156033	piece	50 piece
HHS M10x50 A4	10 mm	50 mm	17	10	Stainless steel	3156034	piece	50 piece
HHS M10x60 A4	10 mm	60 mm	17	10	Stainless steel	3156035	piece	50 piece
HHS M12x30 A4	12 mm	30 mm	19	12	Stainless steel	3156036	piece	50 piece
HHS M12x50 A4	12 mm	50 mm	19	12	Stainless steel	3156037	piece	50 piece
