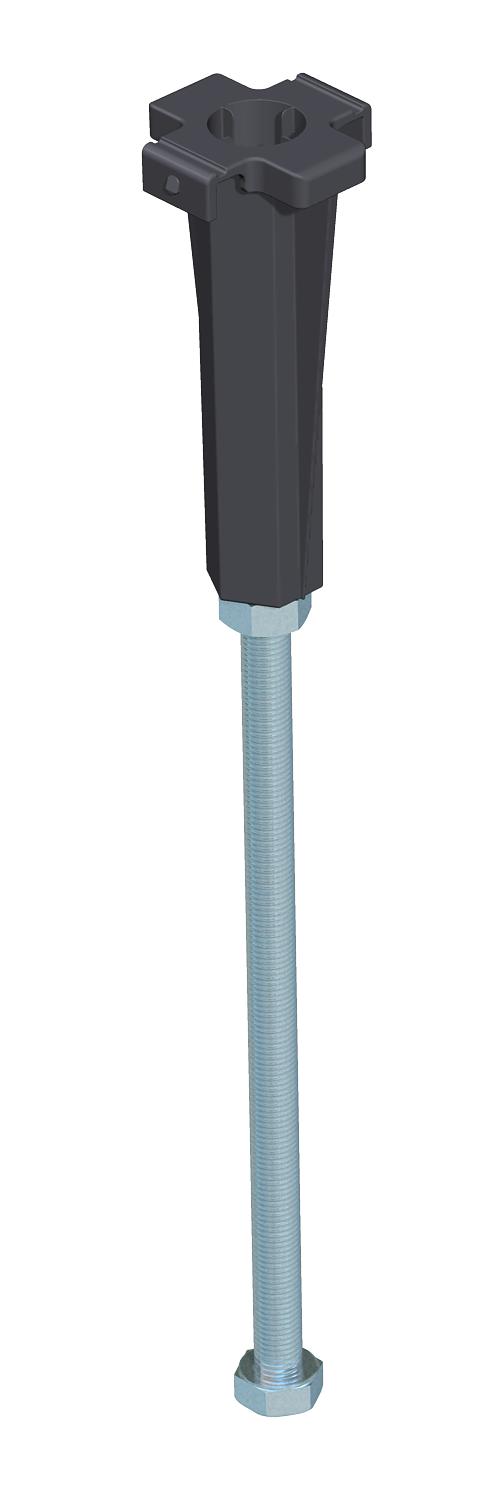

Height adjustment unit for lid butt support, trunking height 170-245 mm

Item no. 7424846 | EAN 4012195245148

7424846 / NE DSU2 17075

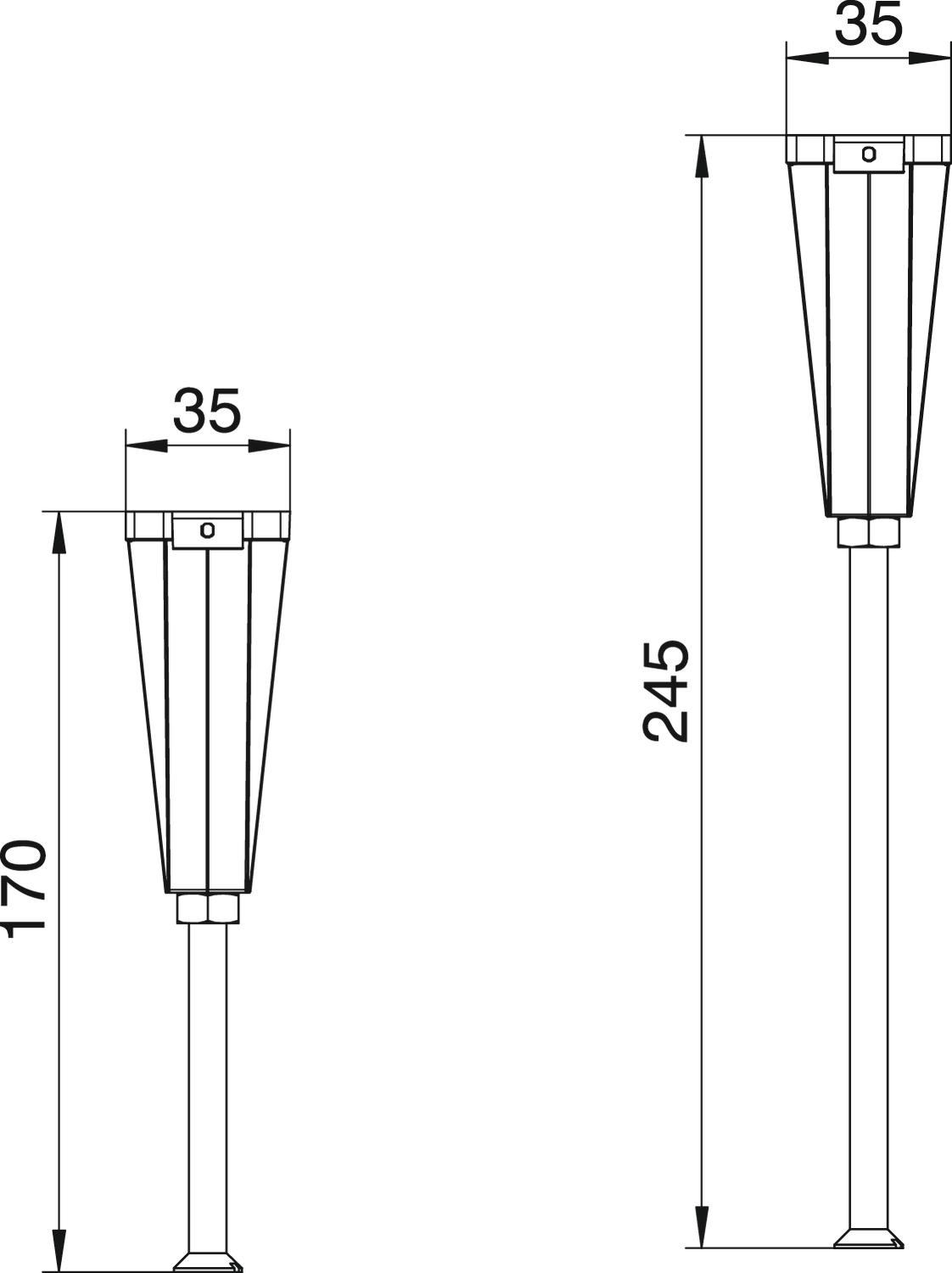

170 mm
245 mm
Product description

Product description

For central support of a lid butt support of nominal width 400, 500 or 600.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Accessories yes
Decouplable no
Device support to accept mounting boxes no
Duct height, min. 170 mm
Height-adjustment range, max. 245 mm
Height-adjustment range, min. 170 mm
Material Steel
Minimum screed height 40
Spare part no
Suitable for screed-flush closed underfloor ducts no
Surface Strip galvanized
Trunking height, max. 245 mm
Width 35 mm
All types

All types

Types Height-adjustment range, min. Height-adjustment range, max. Item no. Quantity SSU
NE DSU2 17075 170 mm 245 mm 7424846
3 piece
