Height adjustment unit

Item no. 7399923 | EAN 4012196331925

Item no. / Types

Width	36 mm

Height-adjustment range, min.

Height-adjustment range, max.

Product description

Product description

Height adjustment kit for IBK system components.

For levelling boxes, connectors and supports.

Technical data

Dimensions

Dimension h	150 mm
Height	150 mm
Height-adjustment range, max.	145 mm
Height-adjustment range, min.	75 mm

Length	92,5 mm
Material	Steel
Surface	Strip galvanized
Width	36 mm

All types

All types

Types	Width	Height-adjustment range, min.	Height-adjustment range, max.	Item no.	Quantity	SSU
IBNEV 110	36 mm	35 mm	105 mm	7399920	piece	10 piece
IBNEV 150	36 mm	75 mm	145 mm	7399923	piece	10 piece
IBNEV 190	36 mm	115 mm	185 mm	7399926	piece	10 piece
IBNEV 230	36 mm	155 mm	225 mm	7399929	piece	10 piece

Downloads

Data sheet IBNEV 150 / 7399923 , 0.15MB , pdf

Brochure IBK in-concrete duct system , 2.10MB , pdf

Catalogue Floor installation systems and Underfloor applications , 42.28MB , pdf

Mounting instructions Im-Beton-Kanalsystem IBK , 3.27MB , pdf

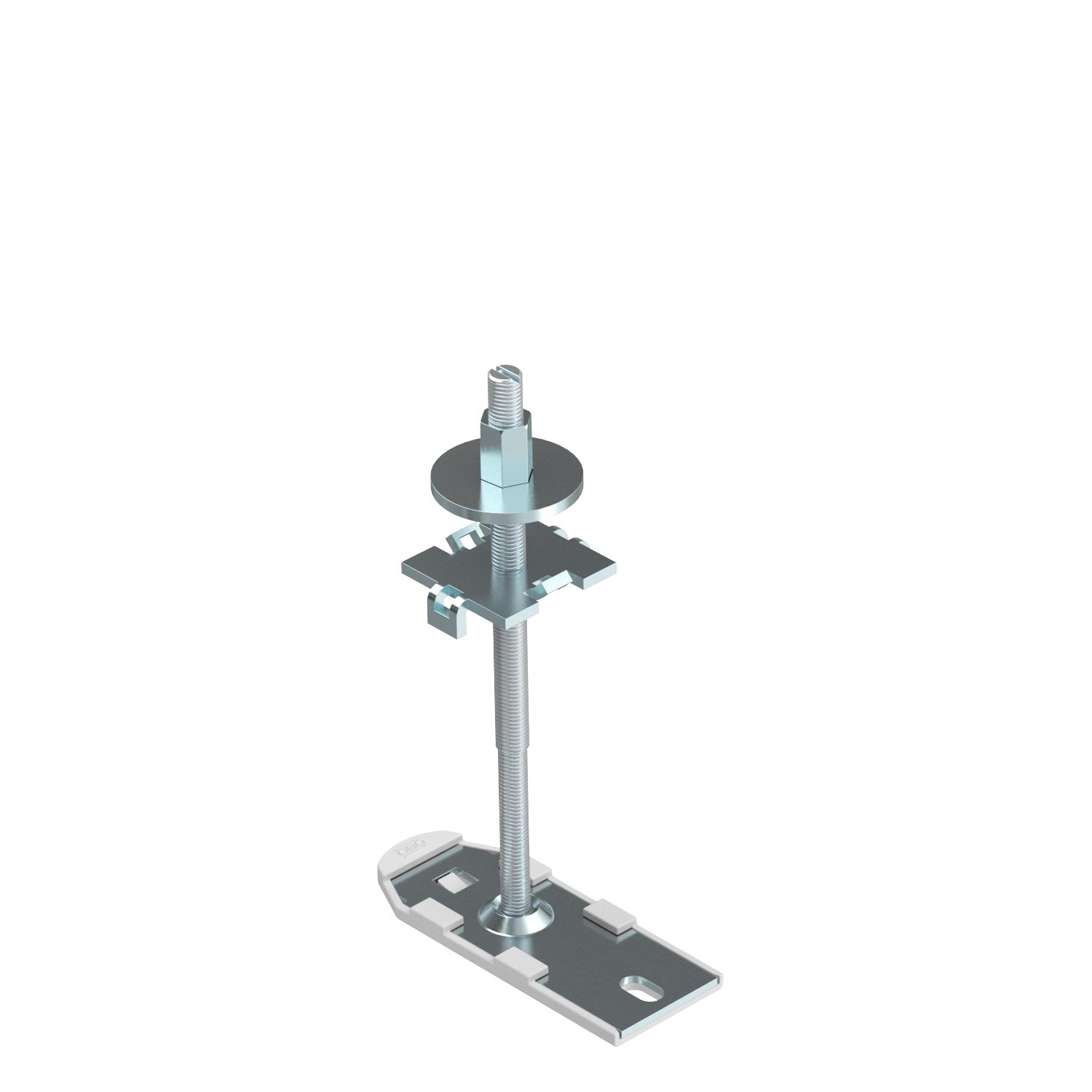

Product graphic IBNEV 150 / 7399923, 41.11 kB, jpg

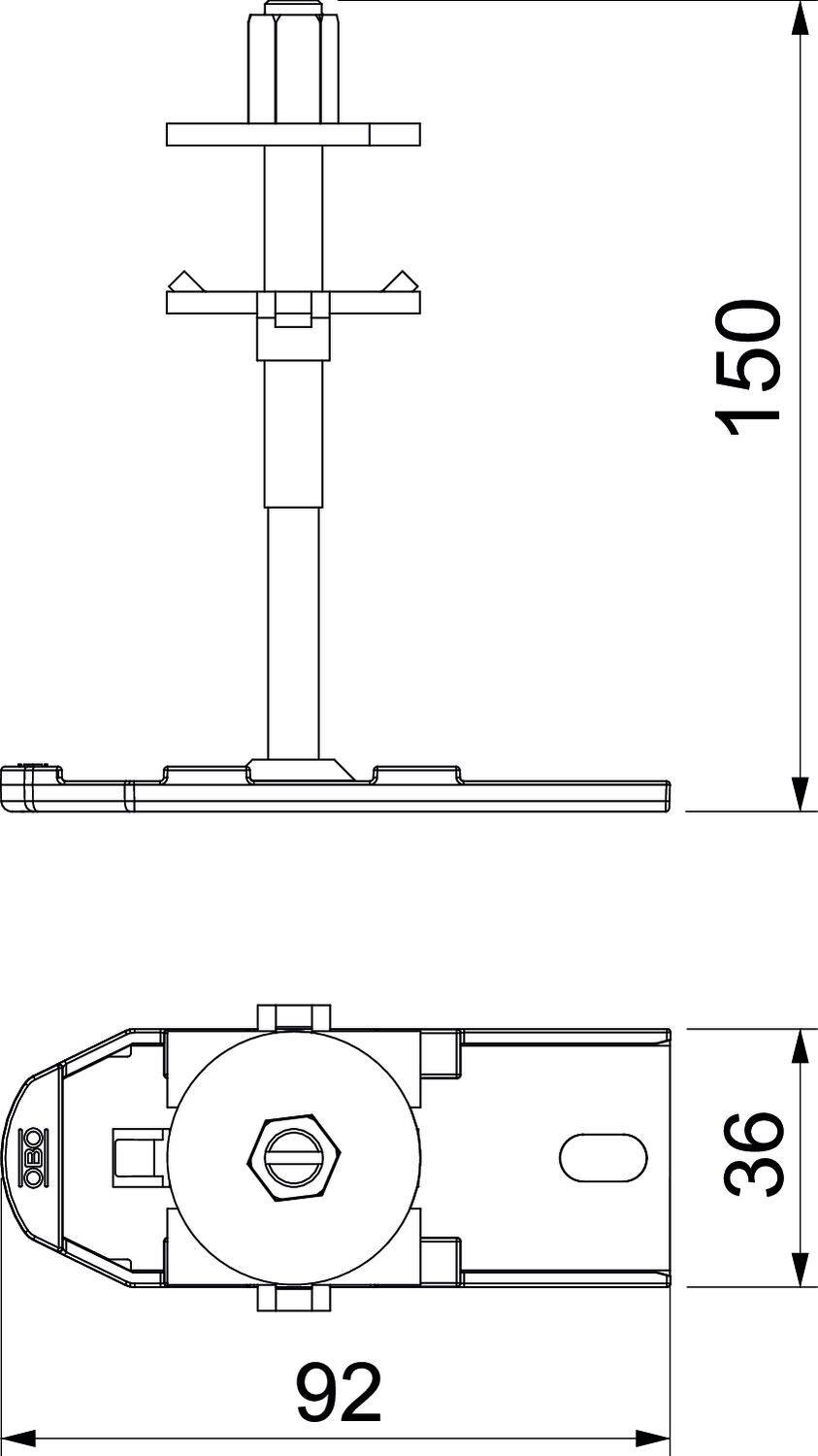

Scale drawing IBNEV 150 / 7399923, 57.43 kB, jpg
