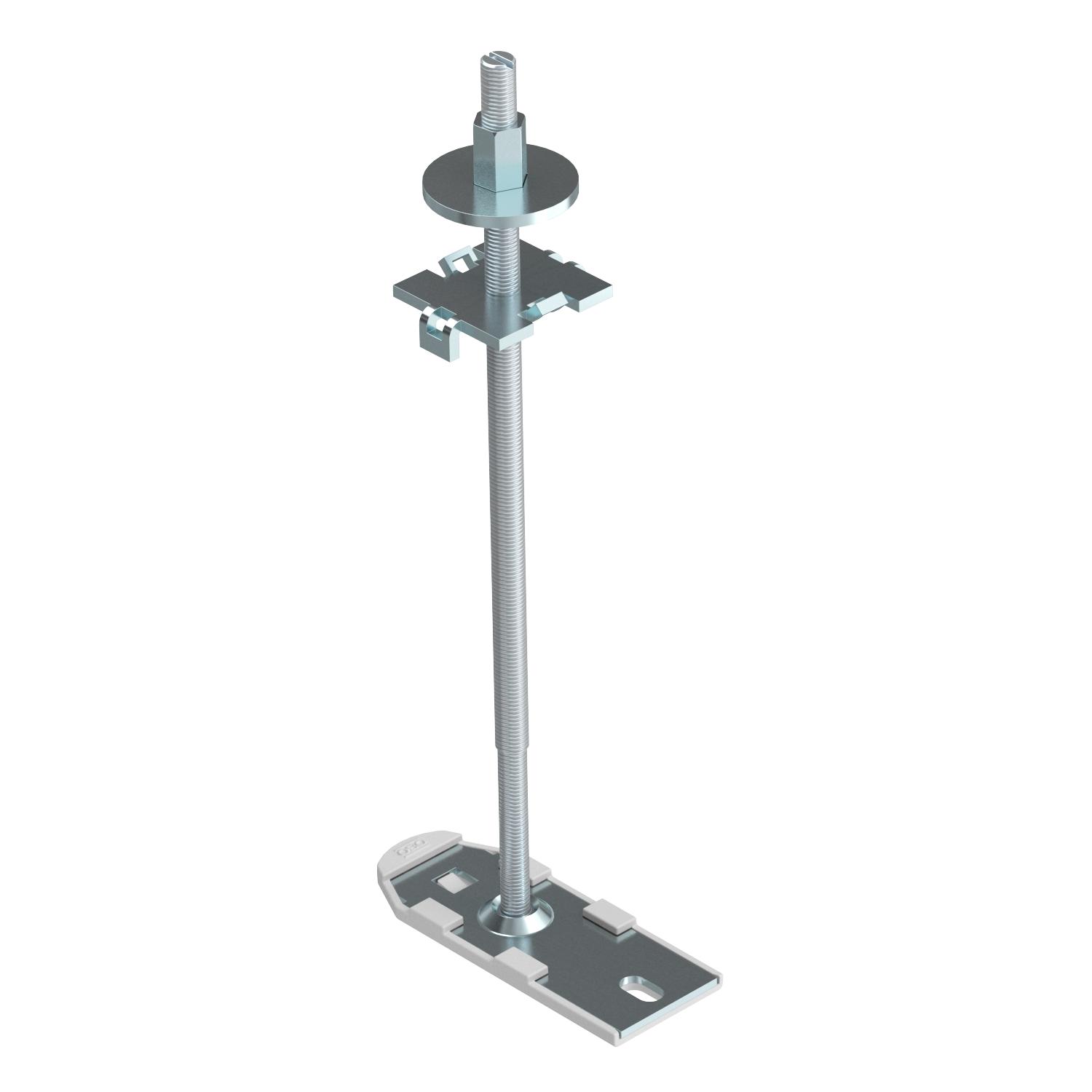

Height adjustment unit

Item no. 7399929 | EAN 4012196331963

36 mm
Product description
Product description
Height adjustment kit for IBK system components.

For levelling boxes, connectors and supports.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

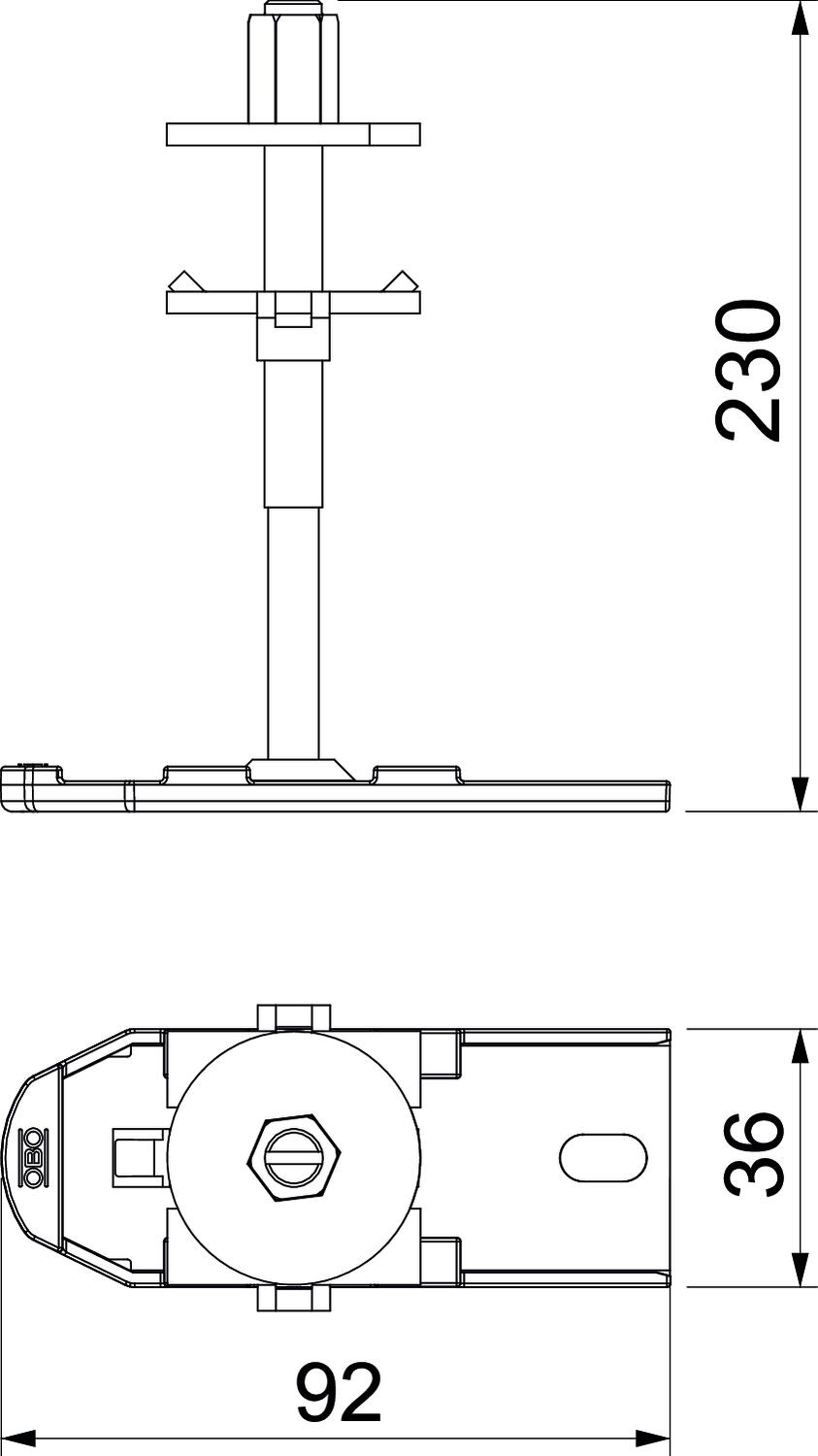

Dimensions

Dimension h 230 mm
Height 230 mm
Height-adjustment range, max. 225 mm
Height-adjustment range, min. 155 mm
Length 92,5 mm
Material Steel
Surface Strip galvanized
Width 36 mm
All types

All types

Types Width Height-adjustment range, min. Height-adjustment range, max. Item no. Quantity SSU

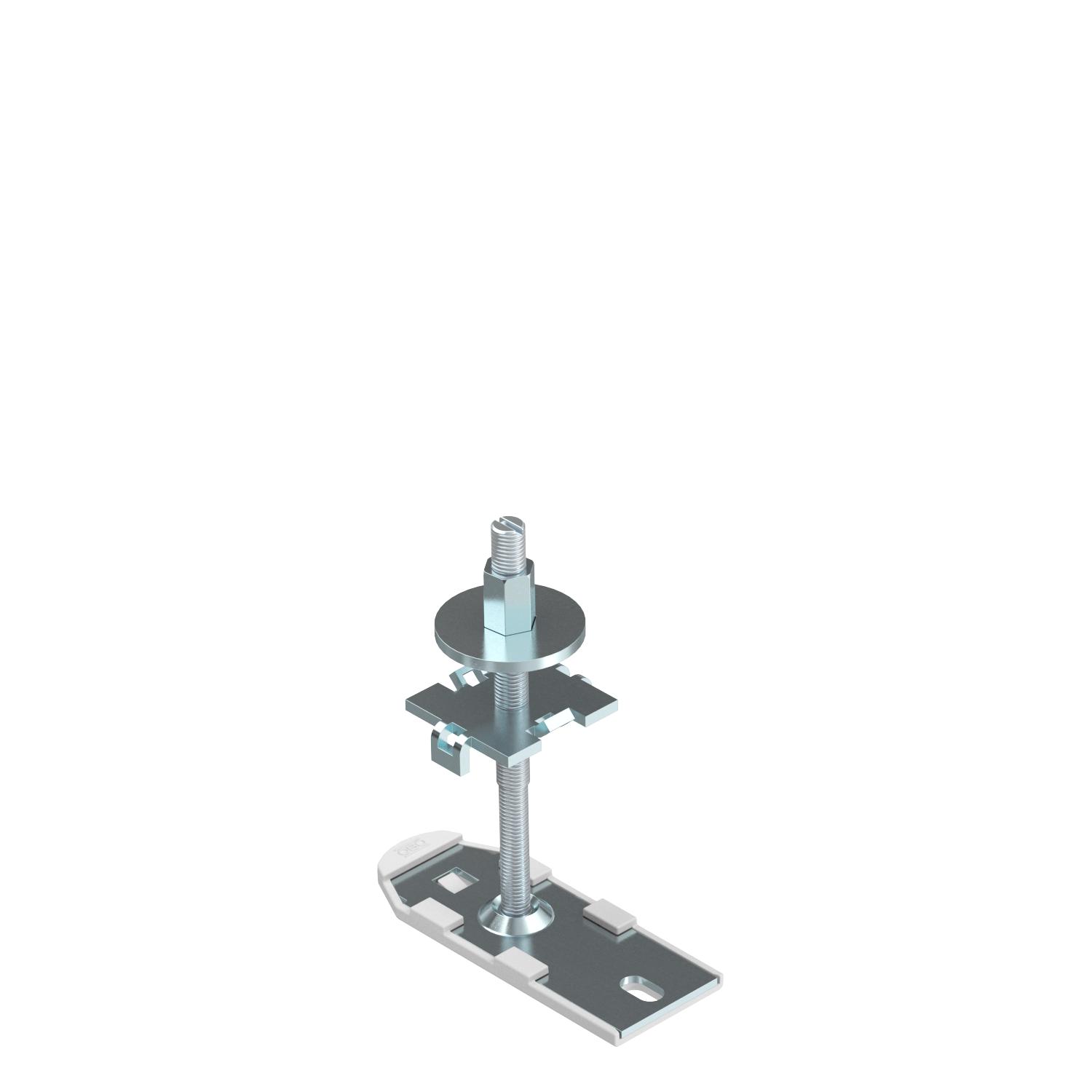

IBNEV 110 36 mm 35 mm 105 mm 7399920
10 piece
IBNEV 150 36 mm 75 mm 145 mm 7399923
10 piece
IBNEV 190 36 mm 115 mm 185 mm 7399926
10 piece
IBNEV 230 36 mm 155 mm 225 mm 7399929
10 piece
Downloads

Download

Download

IBNEV 230 / 7399929
Download
