Heavy mesh cable tray SGR 55 A2

Item no. / Types

Length	3000 mm

Width

Height	55 mm

Wire diameter	6 mm

Usable cross-section

Product description

Product description

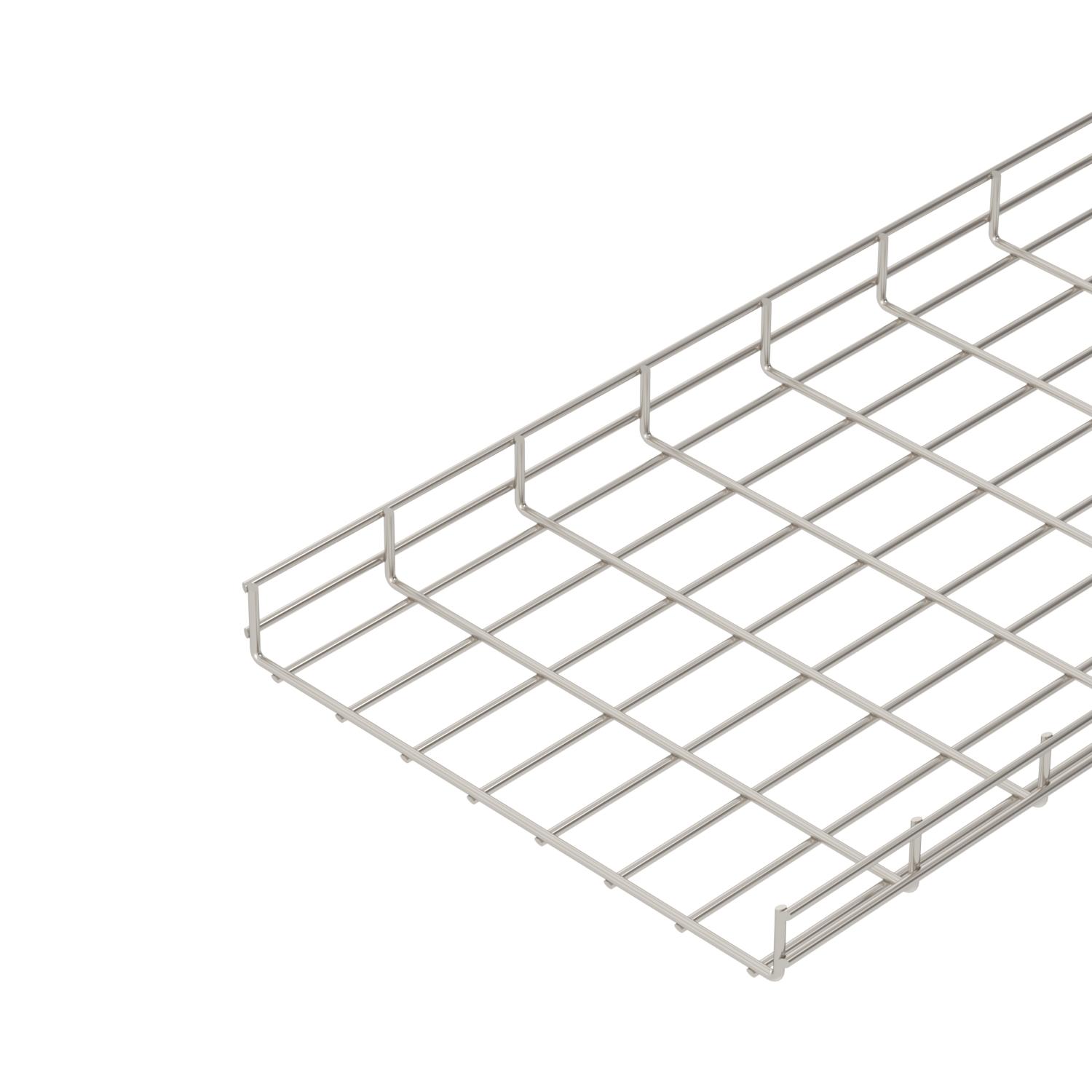

Mesh cable tray made of spot-welded steel wire of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Technical data

Connector version	Without connectors

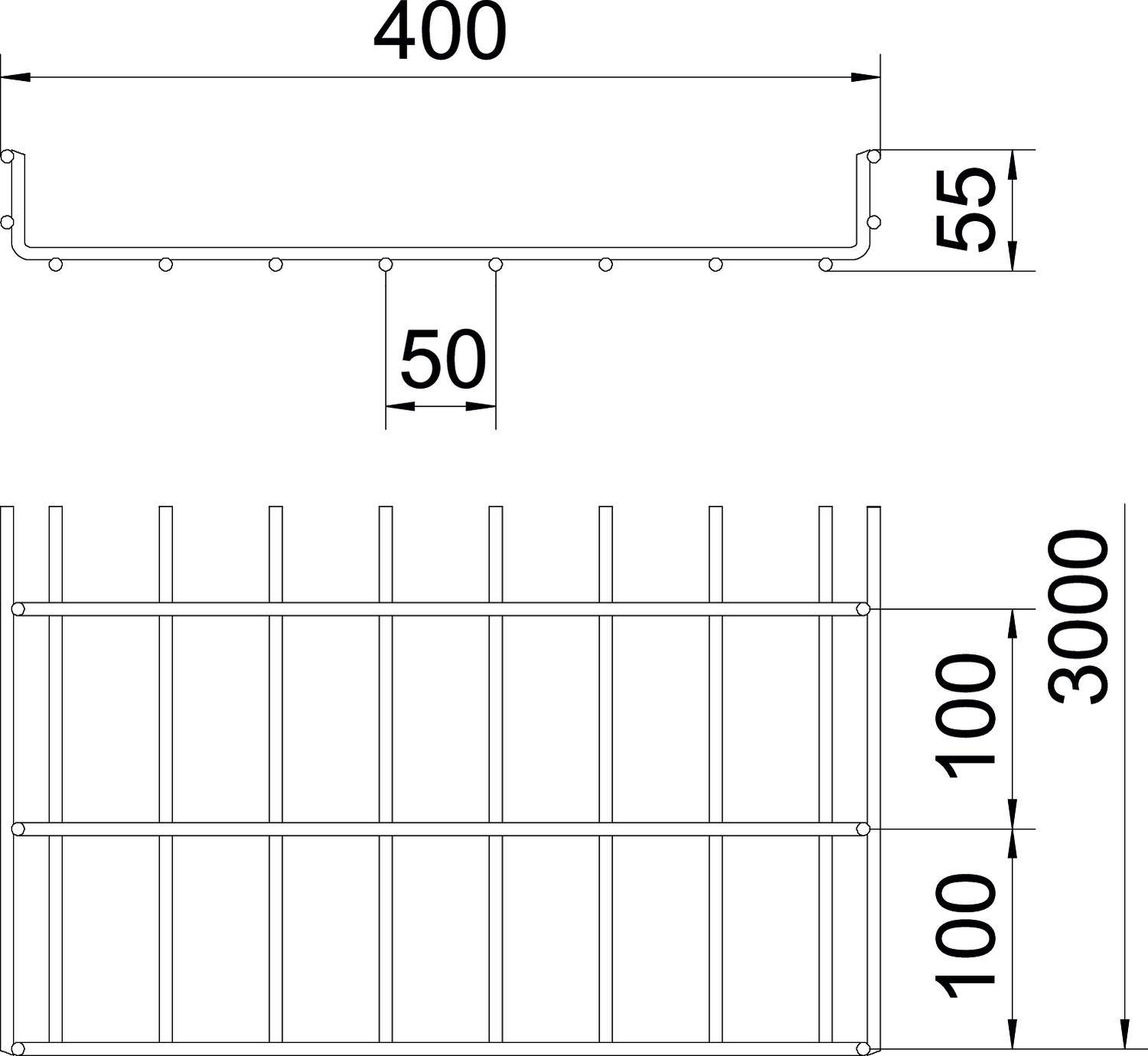

Dimension	55x400x3000
Load test type according to IEC 61537	Type II
Material	Stainless steel
Profile shape	U-shaped

Surface	Bright, treated
Type of connector, cable support system	Screwed
Usable cross-section	17500 mm²
Usable cross-section	175 cm²
Wire diameter	6 mm

Support spacing 2.5 m	0,45 kN/m
Support spacing 3.0 m	0,4 kN/m

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Item no.	Quantity	SSU
SGR 55 100 A2	3000 mm	100 mm	55 mm	6 mm	40 cm²	6000909	m	3 m
SGR 55 150 A2	3000 mm	150 mm	55 mm	6 mm	63 cm²	6000913	m	3 m
SGR 55 200 A2	3000 mm	200 mm	55 mm	6 mm	87 cm²	6000917	m	3 m
SGR 55 300 A2	3000 mm	300 mm	55 mm	6 mm	129 cm²	6000925	m	3 m
SGR 55 400 A2	3000 mm	400 mm	55 mm	6 mm	175 cm²	6000933	m	3 m
SGR 55 500 A2	3000 mm	500 mm	55 mm	6 mm	220 cm²	6000941	m	3 m
SGR 55 600 A2	3000 mm	600 mm	55 mm	6 mm	265 cm²	6000958	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Joint connector A2	GUV 6 A2	6016574	piece	20 piece
Unperforated cover A2	DRLU 400 A2	6052837	m	3 m

Products	Types	Item no.	Quantity	SSU
End cap	SGR KS OR	6003758	piece	500 piece
Separating retainer 45 A2	TSG 45 A2	6062025	m	3 m
Cover clamp, universal A2	DKU A2	6065600	piece	20 piece
Drop-out plate A2	KAB GR A2	6220145	piece	10 piece
