Heavy mesh cable tray SGR 55 A2

Item no. 6000909 | EAN 4012196622108

3000 mm
55 mm
6 mm
Product description
Product description

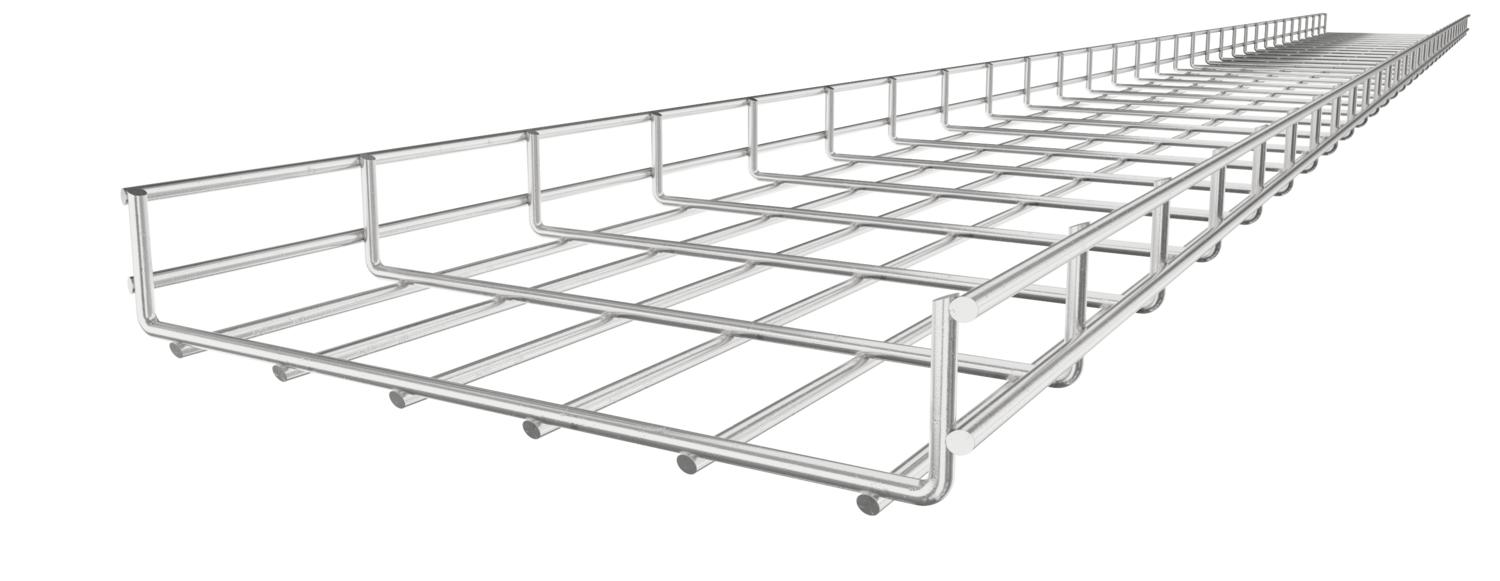

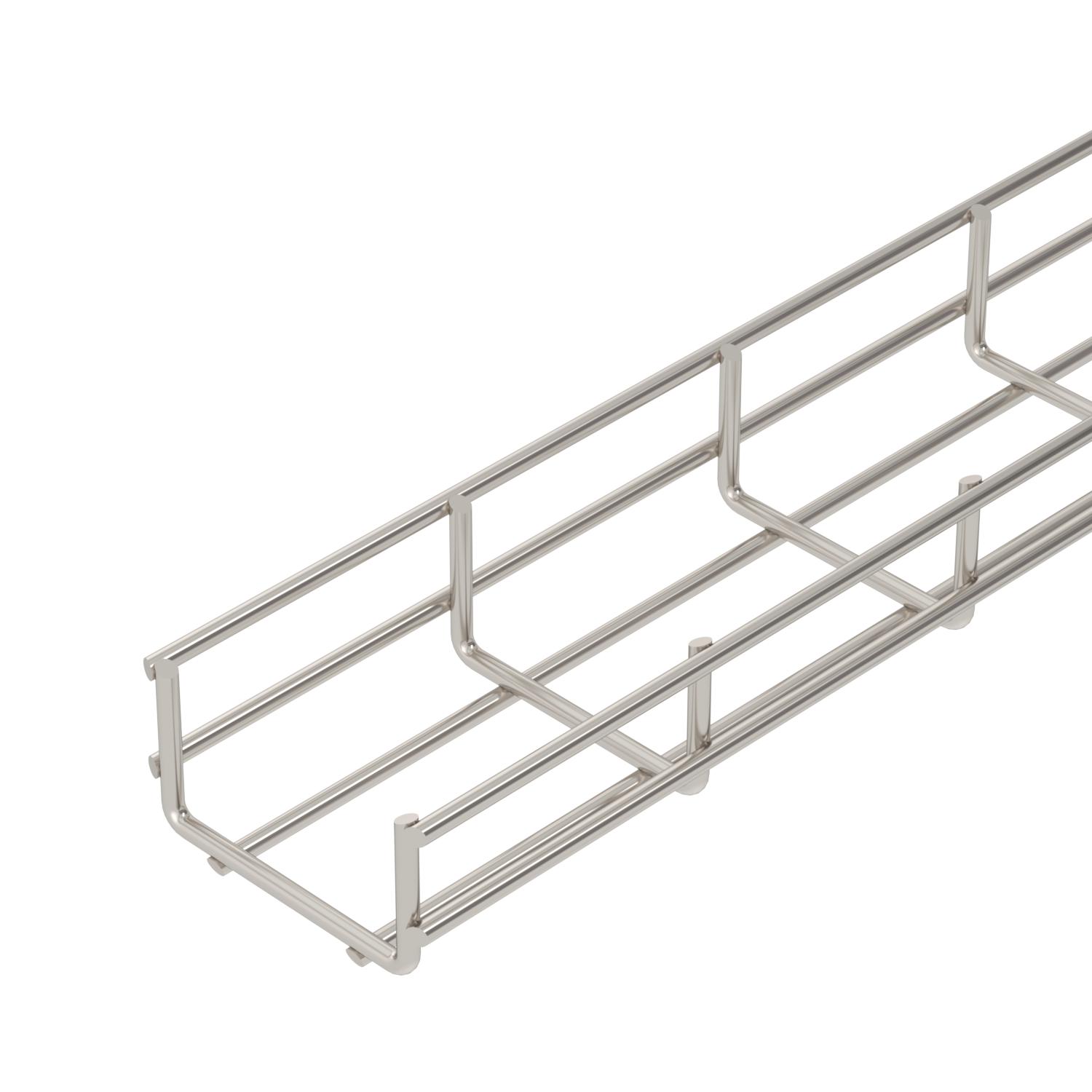

Mesh cable tray made of spot-welded steel wire of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
Technical data

Technical data

Colour stainless steel
Connector version Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate 8,521 kg CO₂e / 1 Meter

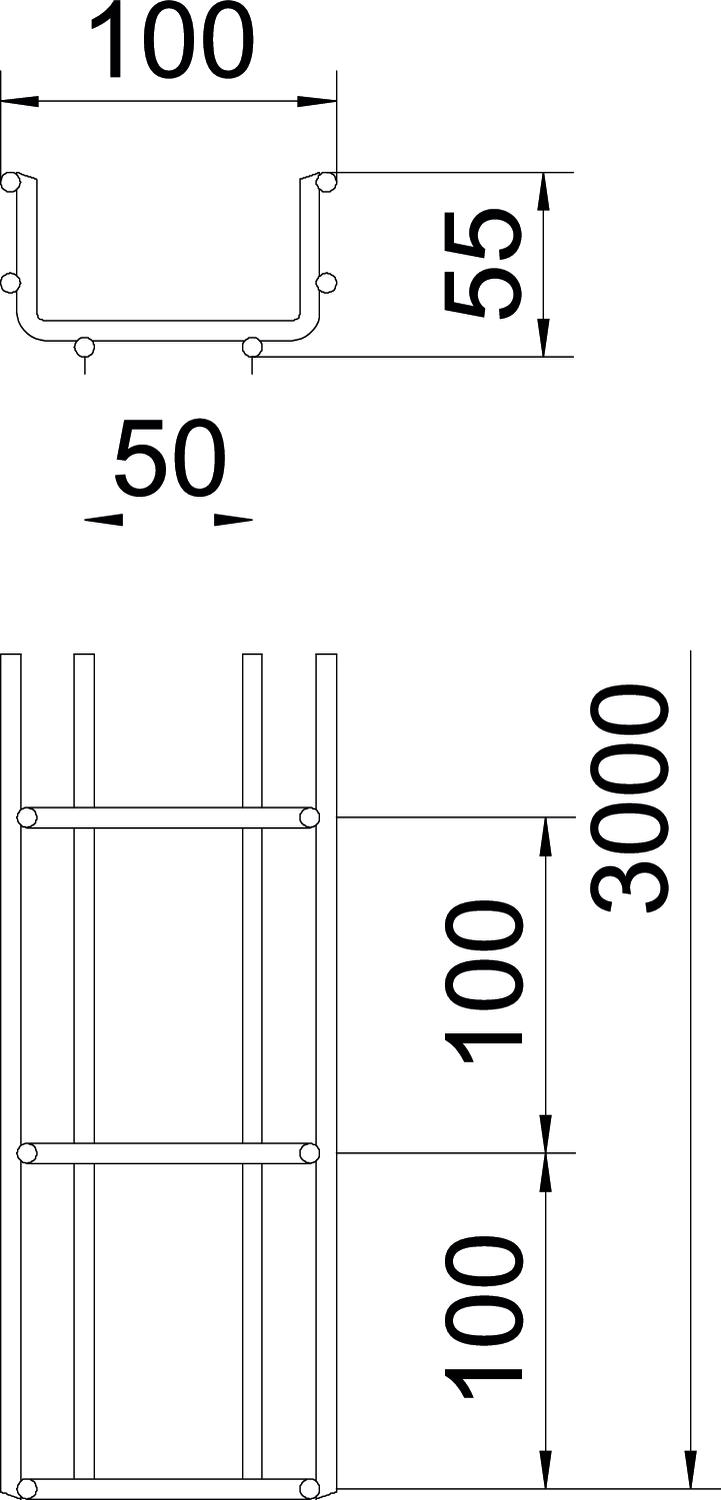

Dimension 55x100x3000
Dimension B 100 mm
Height 2,17 in
Height 55 mm
Length 3000 mm
Load test type according to IEC 61537 Type II
Material Stainless steel
Profile shape U-shaped

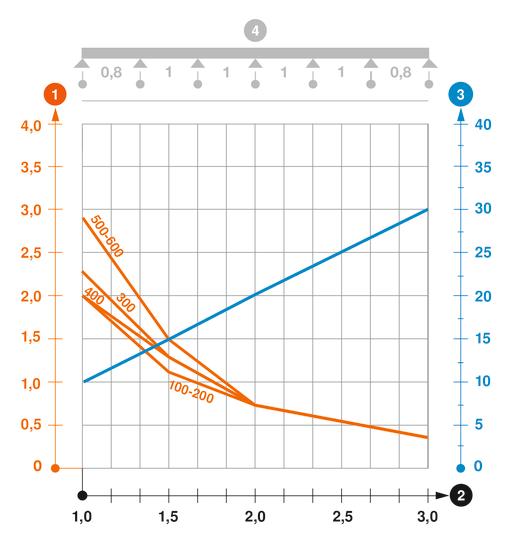

Support spacing 1.0 m 2 kN/m
Support spacing 1.5 m 1,15 kN/m
Support spacing 2.0 m 0,75 kN/m
Support spacing 2.5 m 0,5 kN/m
Support spacing 3.0 m 0,4 kN/m
Surface Bright, treated
Type of connector, cable support system Screwed
Usable cross-section 40 cm²
Usable cross-section 4000 mm²
Width 100 mm
Width 3,94 in
Wire diameter 6 mm
All types

All types

Types Length Width Height Wire diameter Usable cross-section Item no. Quantity SSU
SGR 55 100 A2 3000 mm 100 mm 55 mm 6 mm 40 cm² 6000909
3 m
SGR 55 150 A2 3000 mm 150 mm 55 mm 6 mm 63 cm² 6000913
3 m
SGR 55 200 A2 3000 mm 200 mm 55 mm 6 mm 87 cm² 6000917
3 m
SGR 55 300 A2 3000 mm 300 mm 55 mm 6 mm 129 cm² 6000925
3 m
SGR 55 400 A2 3000 mm 400 mm 55 mm 6 mm 175 cm² 6000933
3 m
SGR 55 500 A2 3000 mm 500 mm 55 mm 6 mm 220 cm² 6000941
3 m
SGR 55 600 A2 3000 mm 600 mm 55 mm 6 mm 265 cm² 6000958
3 m
