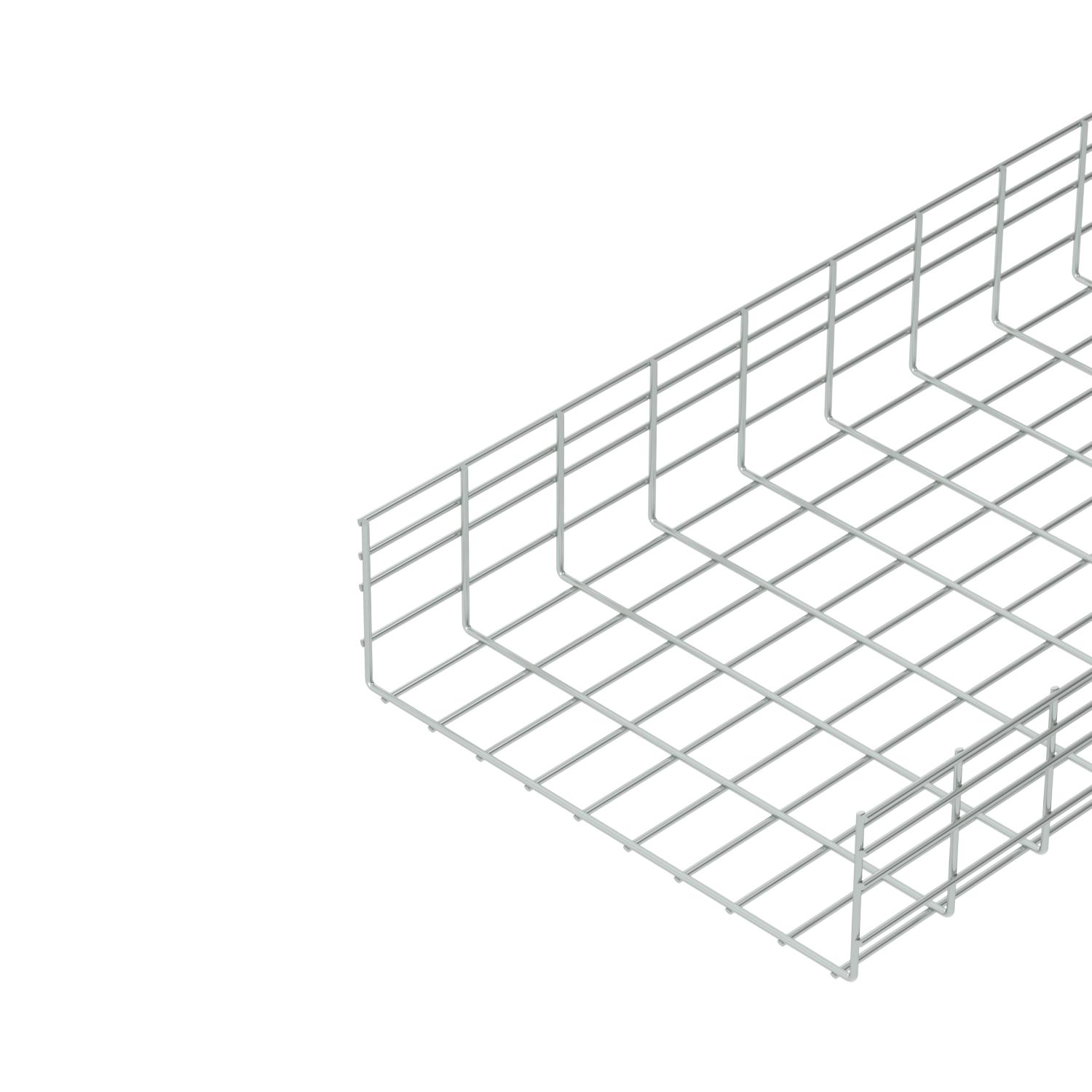

Mesh cable tray made of spot-welded steel wire of side height 155 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
- Technical data
-
Technical data

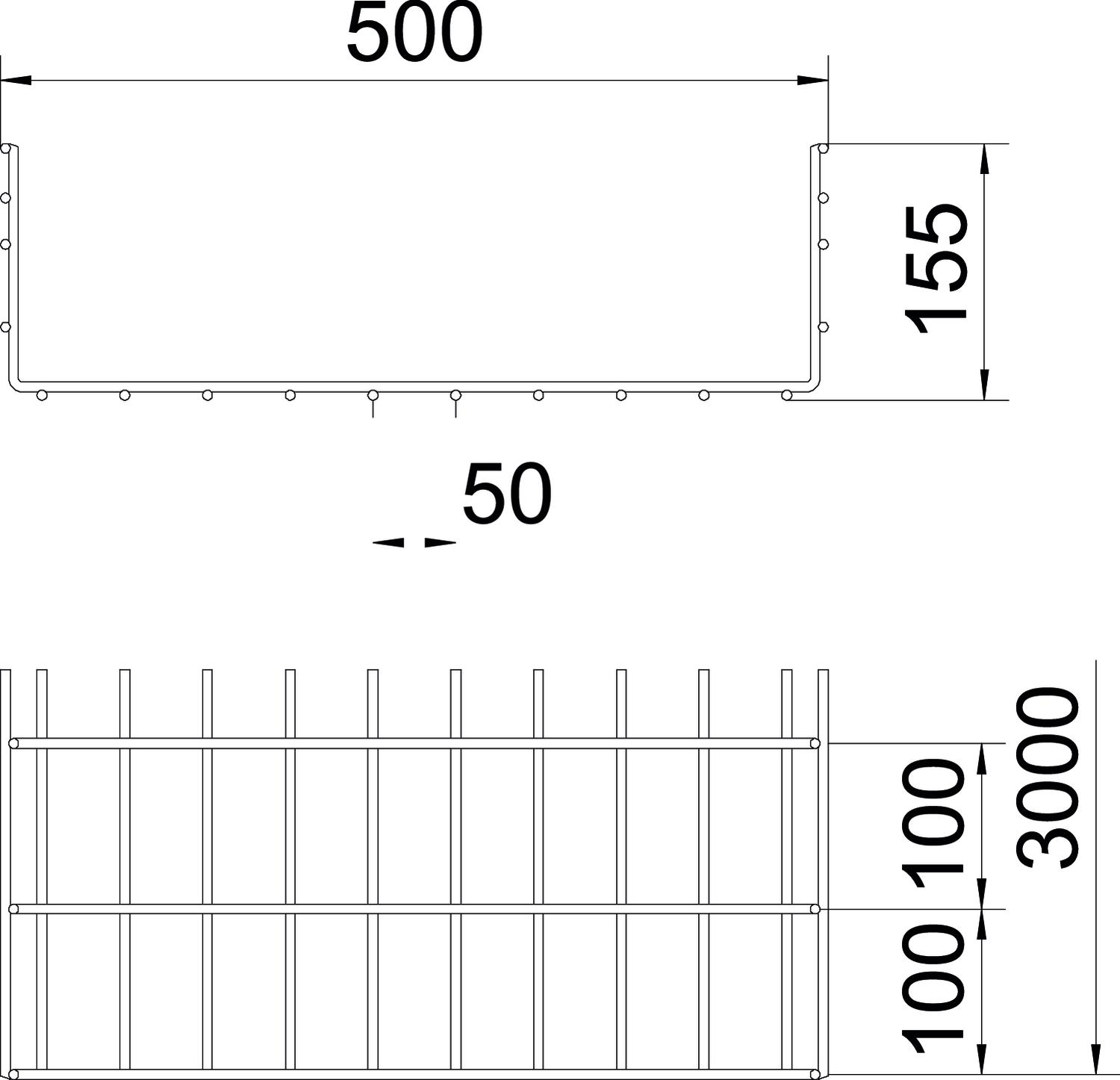

Connector version Without connectors Dimension 155x500x3000 Integrated partition Without Load test type according to IEC 61537 Type II Maintain electrical functions no Material Steel Profile shape U-shaped Rustproof steel, pickled no Screwless connector no Surface Electrogalvanized Type of connector, cable support system Screwed Usable cross-section 73800 mm² Usable cross-section 738 cm² Wide-span version no Wire diameter 6 mm Dimensions
Dimension B 500 mm Height 155 mm Height 6,1 in Length 3000 mm Width 500 mm Width 19,69 in Loads
Support spacing 1.0 m 4,5 kN/m Support spacing 1.5 m 2,6 kN/m Support spacing 2.0 m 1,6 kN/m Support spacing 2.5 m 1,15 kN/m Support spacing 3.0 m 1 kN/m Support spacing 3.5 m 0,92 kN/m Support spacing 4.0 m 0,65 kN/m Technical data
Load diagram, mesh cable tray, type SGR 155
- Permitted cable tray/ladder load in kN/m without man load
- Support width in m
- Rail bend in mm at permitted kN/m
- Load scheme during testing
- Load curve with cable tray/ladder width in mm
- Strut bend curve according to support width
- All types
-
All types
