Heavy mesh cable tray SGR 155 G

Item no. / Types

Length	3000 mm

Width

Height	155 mm

Wire diameter	6 mm

Usable cross-section

Maintain electrical functions	no

Product description

Product description

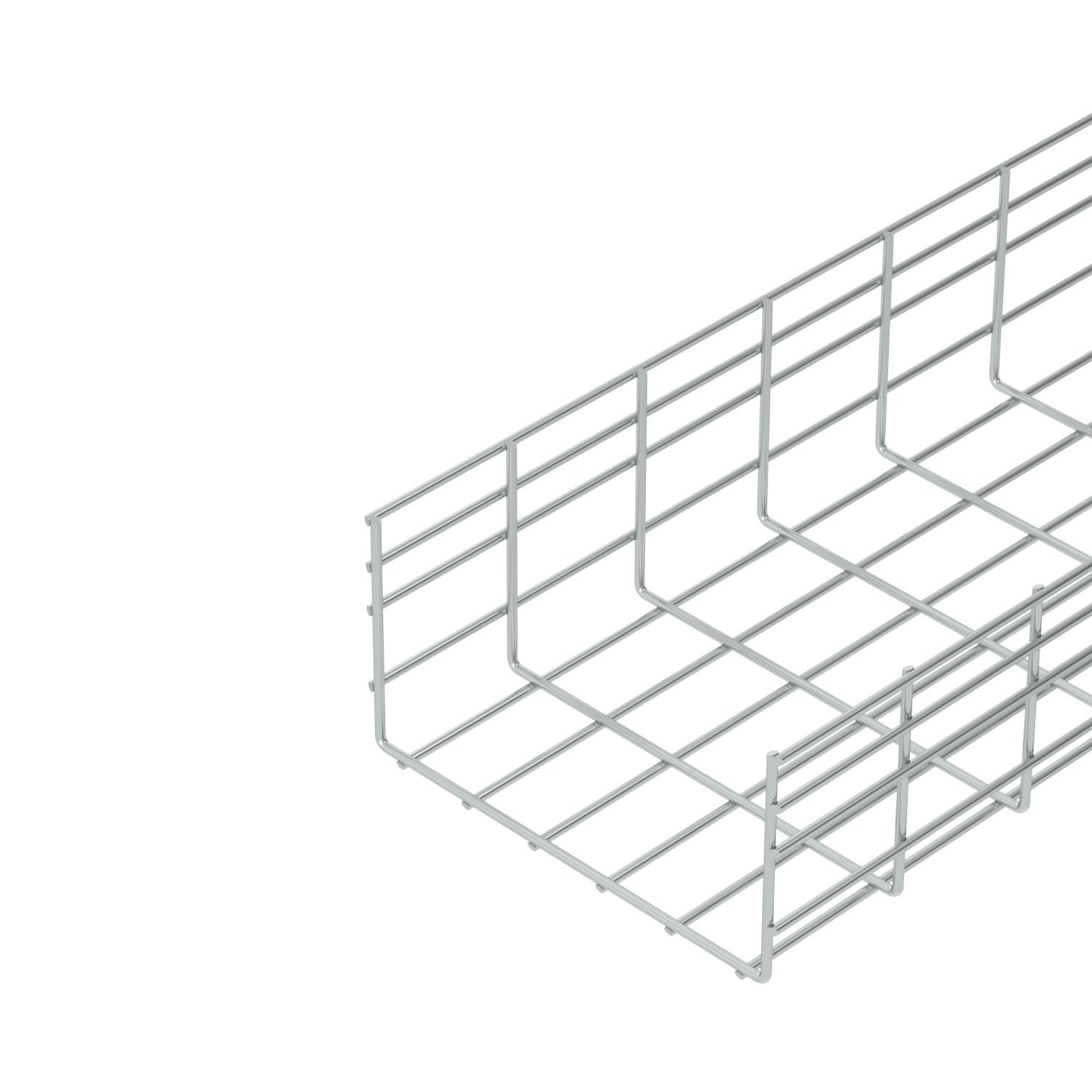

Mesh cable tray made of spot-welded steel wire of side height 155 mm.

Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Technical data

Connector version	Without connectors

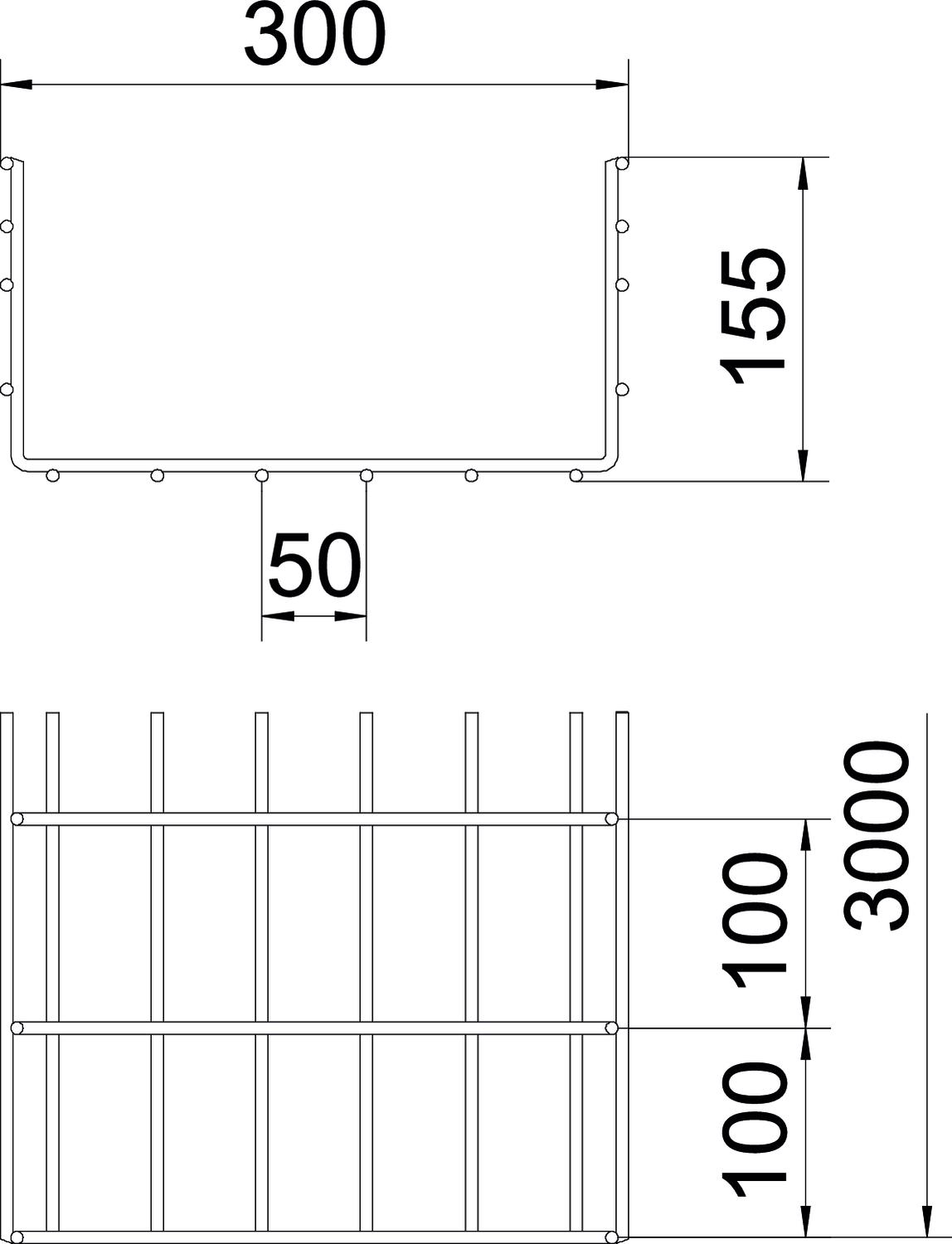

Dimension	155x300x3000
Dimension B	300 mm
Height	6,1 in
Height	155 mm
Integrated partition	Without
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Profile shape	U-shaped
Rustproof steel, pickled	no
Screwless connector	no
Support spacing 1.0 m	4,1 kN/m

Support spacing 1.5 m	2,4 kN/m
Support spacing 2.0 m	1,55 kN/m
Support spacing 2.5 m	1,13 kN/m
Support spacing 3.0 m	0,95 kN/m
Support spacing 3.5 m	0,84 kN/m
Support spacing 4.0 m	0,6 kN/m
Surface	Electrogalvanized
Type of connector, cable support system	Screwed
Usable cross-section	43800 mm²
Usable cross-section	438 cm²
Wide-span version	no
Width	11,81 in
Width	300 mm
Wire diameter	6 mm

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
SGR 155 300 G	3000 mm	300 mm	155 mm	6 mm	438 cm²	no	6003681	m	3 m
SGR 155 450 G	3000 mm	450 mm	155 mm	6 mm	663 cm²	no	6003684	m	3 m
SGR 155 500 G	3000 mm	500 mm	155 mm	6 mm	738 cm²	no	6003685	m	3 m
SGR 155 600 G	3000 mm	600 mm	155 mm	6 mm	888 cm²	no	6003687	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Joint connector G	GUV 6 G	6016572	piece	20 piece
Unperforated cover FS	DRLU 300 FS	6052307	m	3 m

Products	Types	Item no.	Quantity	SSU
End cap	SGR KS OR	6003758	piece	500 piece
Separating retainer 135 FS	TSG 135 FS	6062132	m	3 m
Cover clamp, universal A2	DKU A2	6065600	piece	20 piece
Drop-out FS	KAB GR FS	6220139	piece	10 piece
