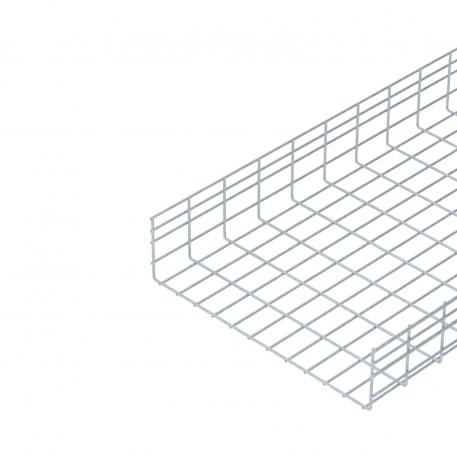

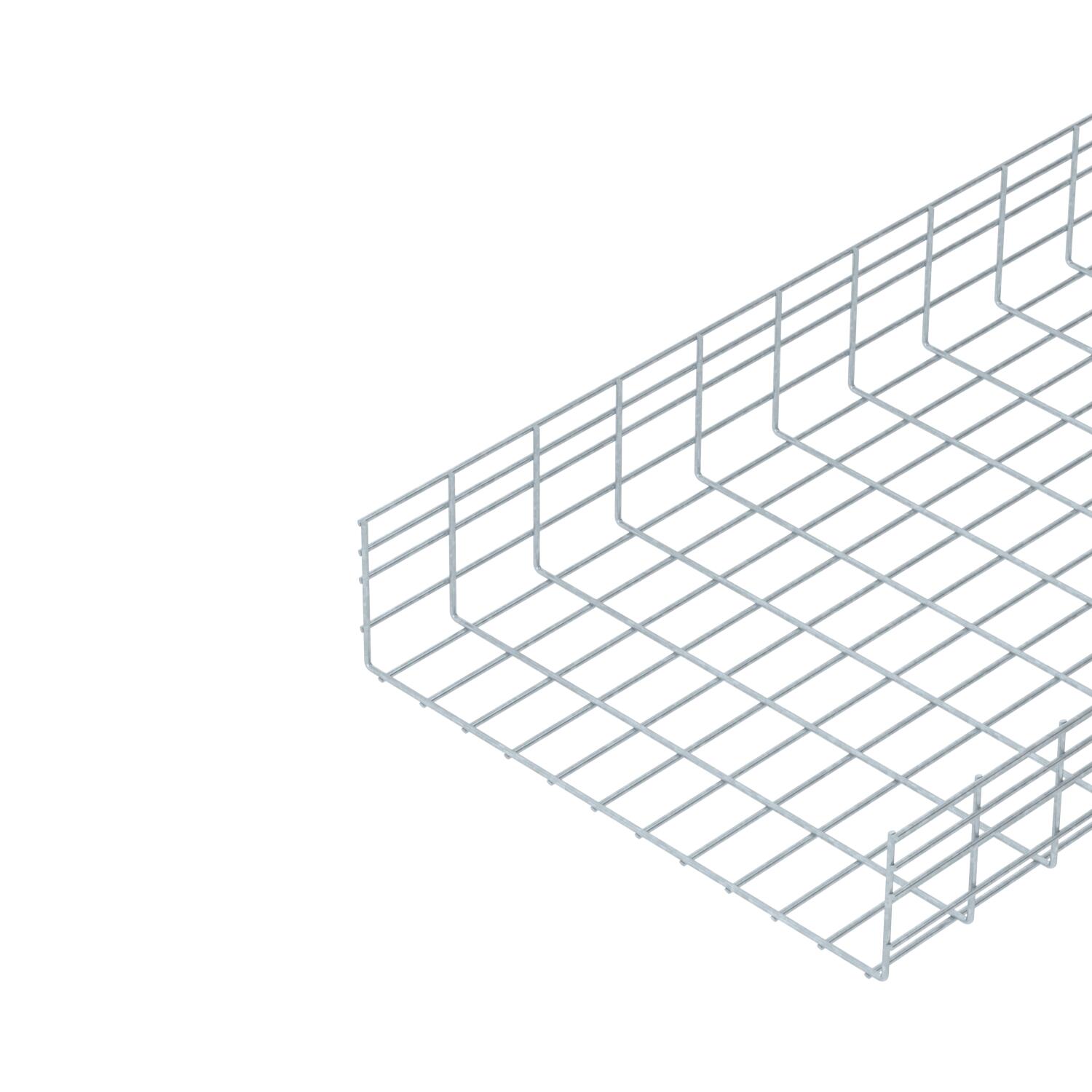

Heavy mesh cable tray SGR 155 FT

Item no. 6003698 | EAN 4012195380313

3000 mm
155 mm
6 mm
no
Product description
Product description
Mesh cable tray made of spot-welded steel wire of side height 155 mm.

Magnetic shield insulation without cover 15 dB, with cover 25 dB.
  • Magnetic shield insulation
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour zinc
Connector version Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate 13,112 kg CO₂e / 1 Meter

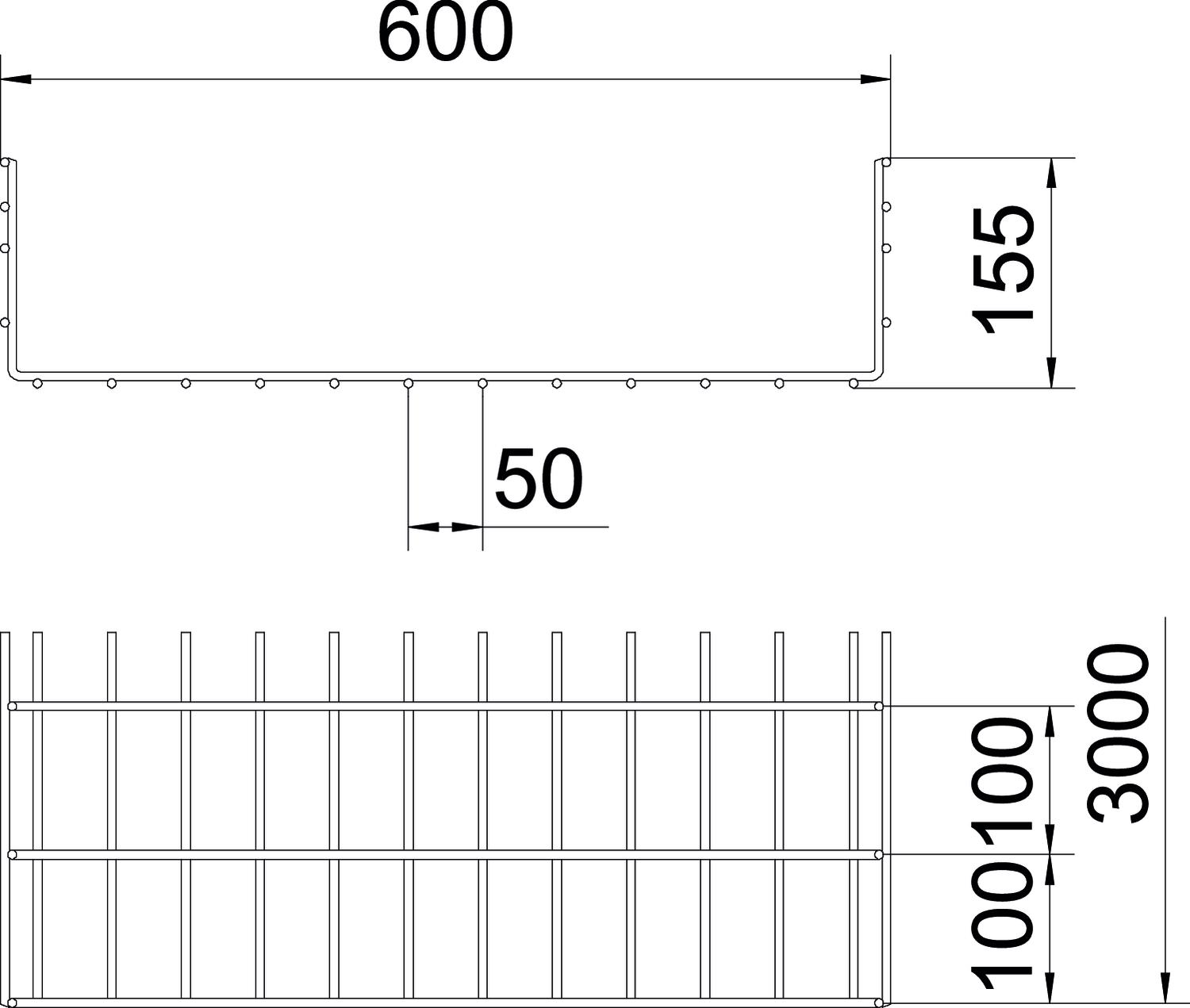

Dimension 155x600x3000
Dimension B 600 mm
Height 6,1 in
Height 155 mm
Integrated partition Without
Length 3000 mm
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Steel
Profile shape U-shaped
Rustproof steel, pickled no
Screwless connector no
Support spacing 1.0 m 4,9 kN/m
Support spacing 1.5 m 3,2 kN/m
Support spacing 2.0 m 2,2 kN/m
Support spacing 2.5 m 1,6 kN/m
Support spacing 3.0 m 1,25 kN/m
Support spacing 3.5 m 1,03 kN/m
Support spacing 4.0 m 0,8 kN/m
Surface Hot-dip galvanised
Type of connector, cable support system Screwed
Usable cross-section 888 cm²
Usable cross-section 88800 mm²
Wide-span version no
Width 23,62 in
Width 600 mm
Wire diameter 6 mm

Technical data

Load diagram, mesh cable tray, type SGR 155

Load diagram, mesh cable tray, type SGR 155
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Height Wire diameter Usable cross-section Maintain electrical functions Item no. Quantity SSU
SGR 155 300 FT 3000 mm 300 mm 155 mm 6 mm 438 cm² no 6003692
3 m
SGR 155 450 FT 3000 mm 450 mm 155 mm 6 mm 663 cm² no 6003695
3 m
SGR 155 500 FT 3000 mm 500 mm 155 mm 6 mm 738 cm² no 6003696
3 m
SGR 155 600 FT 3000 mm 600 mm 155 mm 6 mm 888 cm² no 6003698
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Joint connector FT Joint connector FT GUV 6 FT 6016573
20 piece
Unperforated cover DD Unperforated cover DD DRLU 600 DD 6052674
3 m

Mounting accessories

Products Types Item no. Quantity SSU
End cap End cap SGR KS OR 6003758
500 piece
Barrier strip 135 DD Barrier strip 135 DD TSG 135 DD 6062338
3 m
Cover clamp, universal A2 Cover clamp, universal A2 DKU A2 6065600
20 piece
Exit plate FT Exit plate FT KAB GR FT 6220142
10 piece
