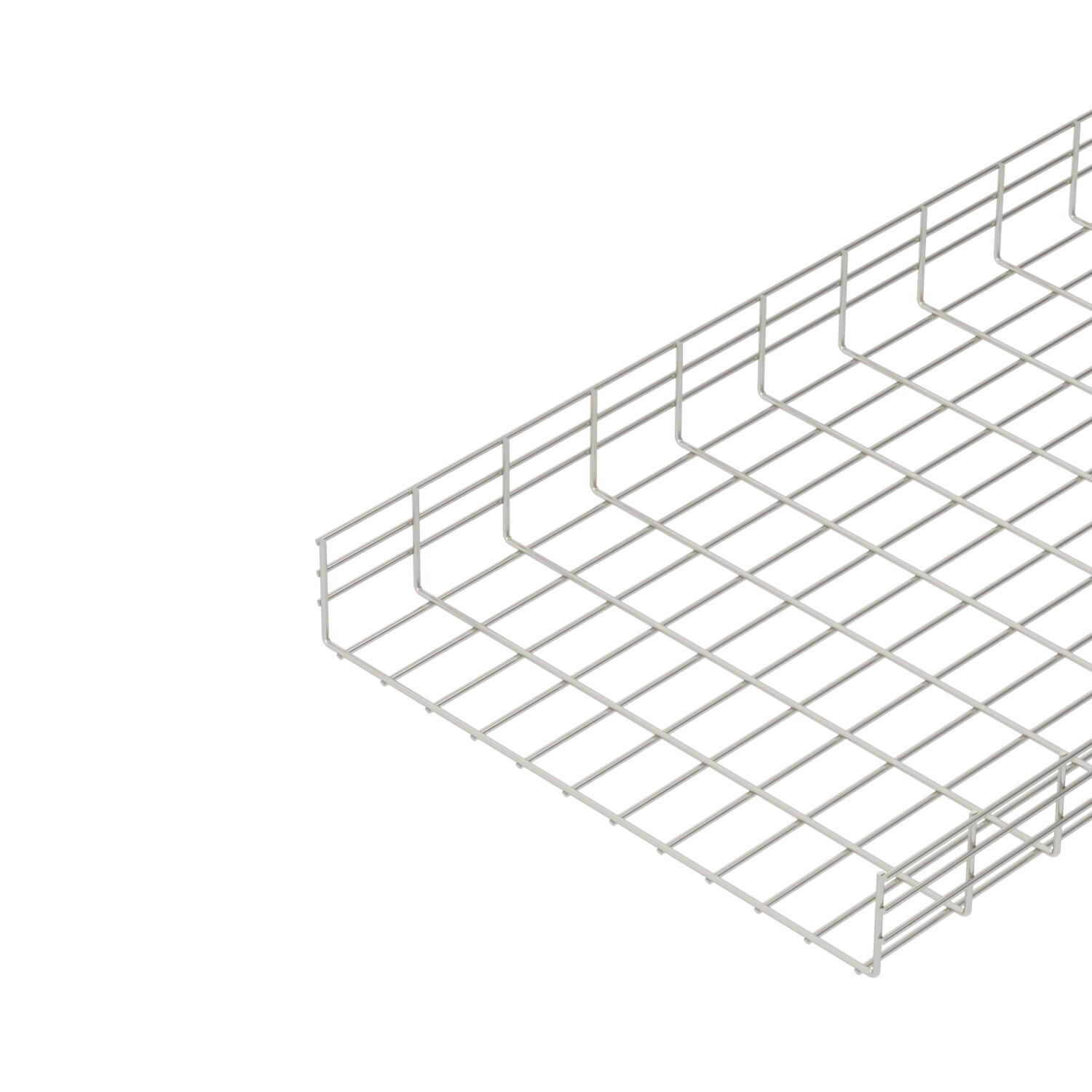

Heavy mesh cable tray SGR 105 A2

Item no. / Types

Length	3000 mm

Width

Height	105 mm

Wire diameter	6 mm

Usable cross-section

Product description

Product description

Mesh cable tray made of spot-welded steel wire of side height 105 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Technical data

Colour	stainless steel
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	28,005 kg CO₂e / 1 Meter

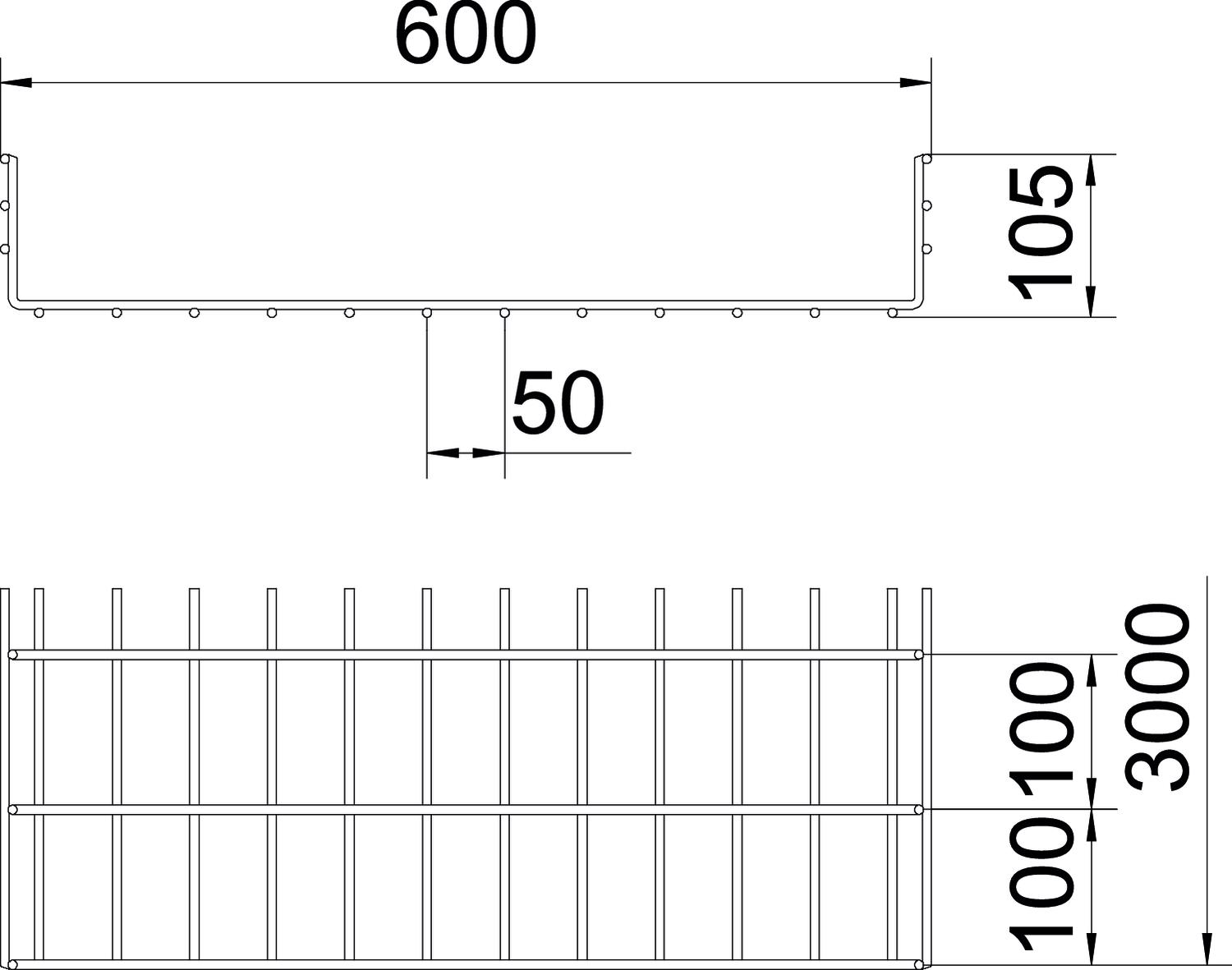

Dimension	105x600x3000
Dimension B	600 mm
Height	4,13 in
Height	105 mm
Integrated partition	Without
Length	3000 mm
Load test type according to IEC 61537	Type II
Material	Stainless steel
Profile shape	U-shaped
Support spacing 1.0 m	4,1 kN/m

Support spacing 1.5 m	2,2 kN/m
Support spacing 2.0 m	1,35 kN/m
Support spacing 2.5 m	0,95 kN/m
Support spacing 3.0 m	0,8 kN/m
Support spacing 3.5 m	0,7 kN/m
Support spacing 4.0 m	0,45 kN/m
Surface	Bright, treated
Type of connector, cable support system	Screwed
Usable cross-section	554 cm²
Usable cross-section	55400 mm²
Width	600 mm
Width	23,62 in
Wire diameter	6 mm

Technical data

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Item no.	Quantity	SSU
SGR 105 150 A2	3000 mm	150 mm	105 mm	6 mm	130 cm²	6003623	m	3 m
SGR 105 200 A2	3000 mm	200 mm	105 mm	6 mm	175 cm²	6003625	m	3 m
SGR 105 300 A2	3000 mm	300 mm	105 mm	6 mm	268 cm²	6003627	m	3 m
SGR 105 400 A2	3000 mm	400 mm	105 mm	6 mm	363 cm²	6003629	m	3 m
SGR 105 500 A2	3000 mm	500 mm	105 mm	6 mm	459 cm²	6003631	m	3 m
SGR 105 600 A2	3000 mm	600 mm	105 mm	6 mm	554 cm²	6003633	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Joint connector A2	GUV 6 A2	6016574	piece	20 piece
Unperforated cover A2	DRLU 600 A2	6052844	m	3 m

Products	Types	Item no.	Quantity	SSU
End cap	SGR KS OR	6003758	piece	500 piece
Barrier strip 85 A2	TSG 85 A2	6062173	m	3 m
Cover clamp, universal A2	DKU A2	6065600	piece	20 piece
Drop-out plate A2	KAB GR A2	6220145	piece	10 piece
