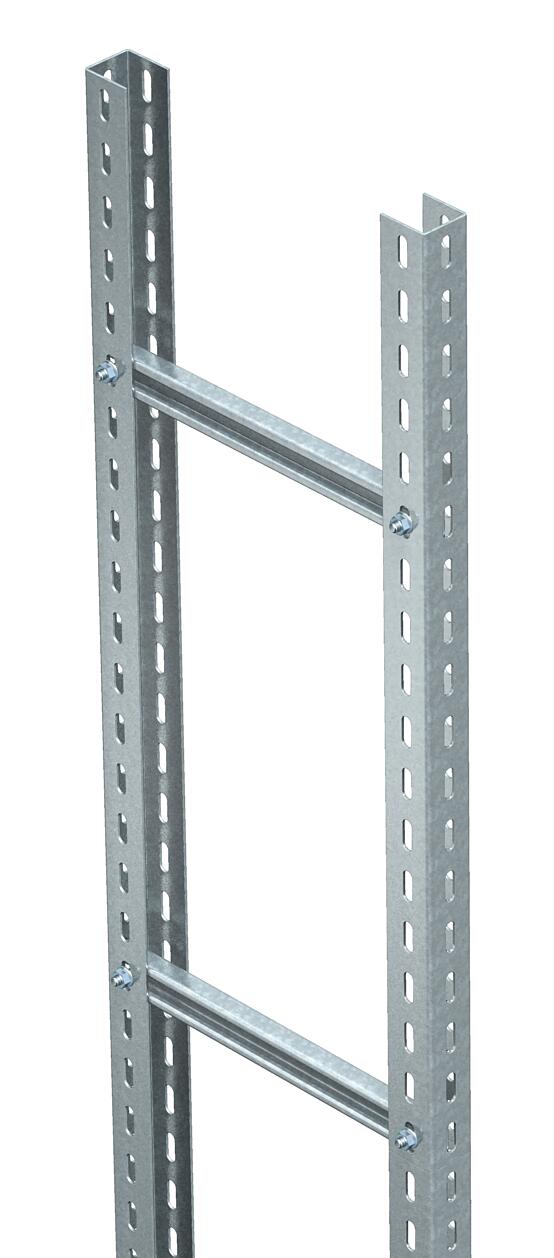

Heavy-duty vertical cable ladder SLM 50, 3 m C40

Item no. / Types

Width

Rail thickness	2.5 mm

Product description

Product description

The vertical ladder with a 50 mm side height is shipped in an unmounted state and must be screwed together on the construction site.

Technical data

Colour	zinc
Dimension	200x3000
Dimension B	200 mm
Height	50 mm
Length	3000 mm
Maintain electrical functions	no
Material	Steel
Rail thickness	2,5 mm

All types

All types

Types	Width	Rail thickness	Item no.	Quantity	SSU
SLM 50 C40 2 FT	200 mm	2.5 mm	6010466	m	3 m
SLM 50 C40 3 FT	300 mm	2.5 mm	6010474	m	3 m
SLM 50 C40 4 FT	400 mm	2.5 mm	6010482	m	3 m
SLM 50 C40 5 FT	500 mm	2.5 mm	6010490	m	3 m
SLM 50 C40 6 FT	600 mm	2.5 mm	6010504	m	3 m
SLM 50 C40 7 FT	700 mm	2.5 mm	6010512	m	3 m
SLM 50 C40 8 FT	800 mm	2.5 mm	6010520	m	3 m
SLM 50 C40 9 FT	900 mm	2.5 mm	6010539	m	3 m
SLM 50 C40 10 FT	1000 mm	2.5 mm	6010547	m	3 m
SLM 50 C40 11 FT	1100 mm	2.5 mm	6010555	m	3 m
SLM 50 C40 12 FT	1200 mm	2.5 mm	6010563	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU

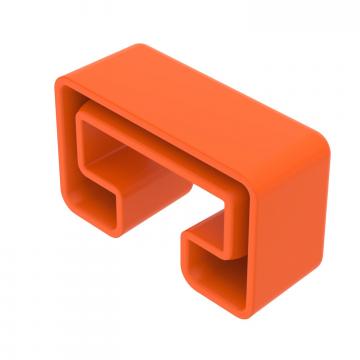

End cap MS4022	MS4022 SK	1124555	piece	25 piece

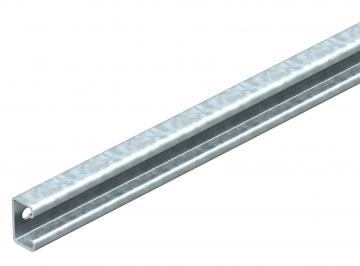

MS4022 mounting rail, heavy-duty, slot 18 mm, FT	MS4022P0192FT	6007201	piece	1 piece
U support connector FT	VUS 5 FT	6018505	piece	10 piece
