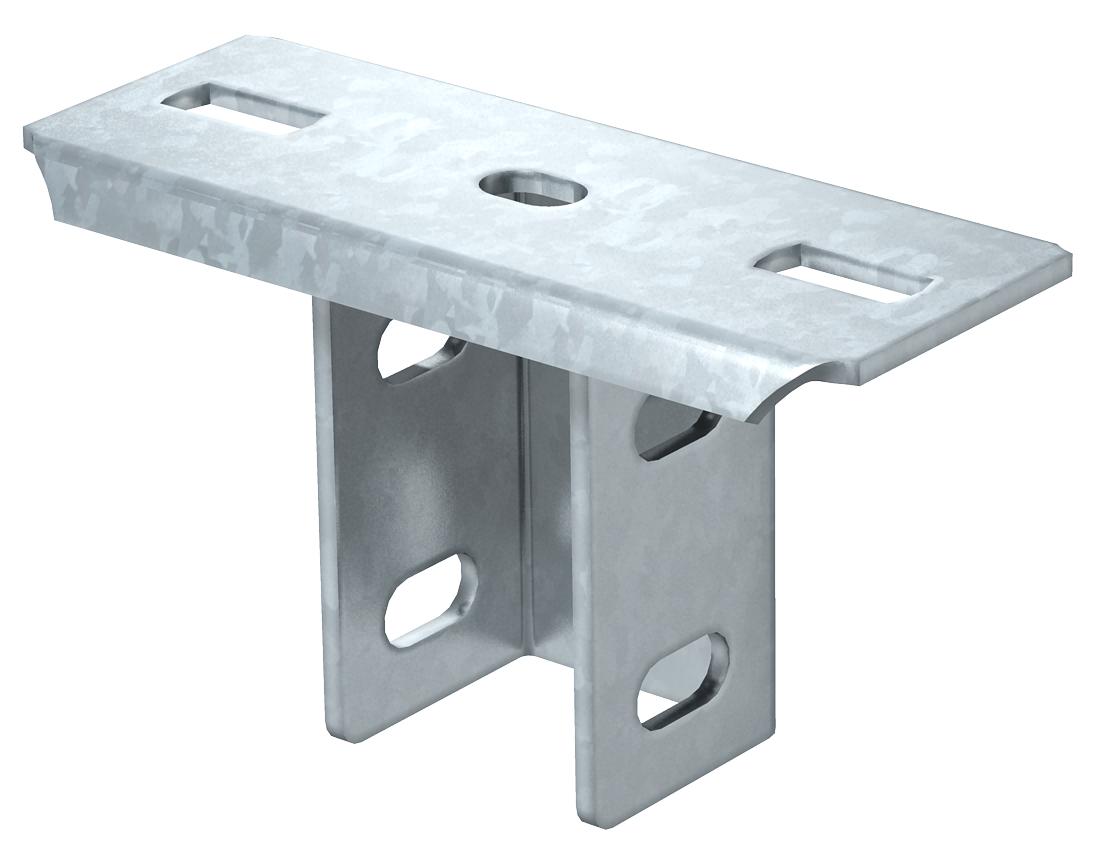

Head plate US 5
Item no. 6348904 | EAN 4012196168910
- Product description
-
Product description
Head plate for mounting on US 5 supports. In combination with the US 5 support, suspended supports of any length can be created in situ. Also suitable for fixing vertical ladders, type SLM 50.
-
- Technical data
-
Technical data

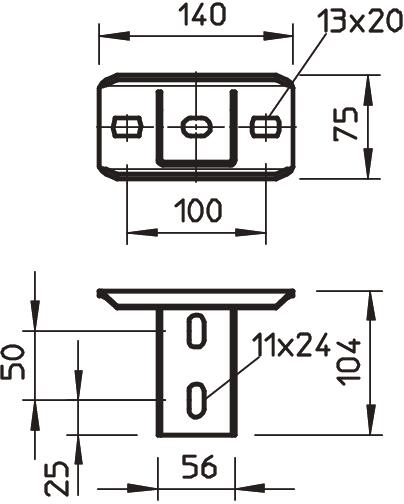

Angle range, max. 90 mm Angle range, min. 90 mm Dimension 140x75x104 Height 104 mm Length 140 mm Maintain electrical functions yes Material Steel Rustproof steel, pickled no Suitable for ceiling fastening yes Suitable for panel fastening no Suitable for profile shapes U profile Surface Hot-dip galvanised Version for Screw head plate Width 75 mm - All types
- Downloads
-
Data sheet KUS 5 FT / 6348904 , 0.14MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity KUS 5 FT / 6348904 , 0.13MB , pdfREACH Declaration of conformity KUS 5 FT / 6348904 , 0.12MB , pdfRoHS Declaration of conformity KUS 5 FT / 6348904 , 0.13MB , pdfMounting instructions Mounting instructions, U support systems , 0.04MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
