Hat profile rail, unperforated GTP
Item no. 1115421 | EAN 4012195044833
- Product description
-

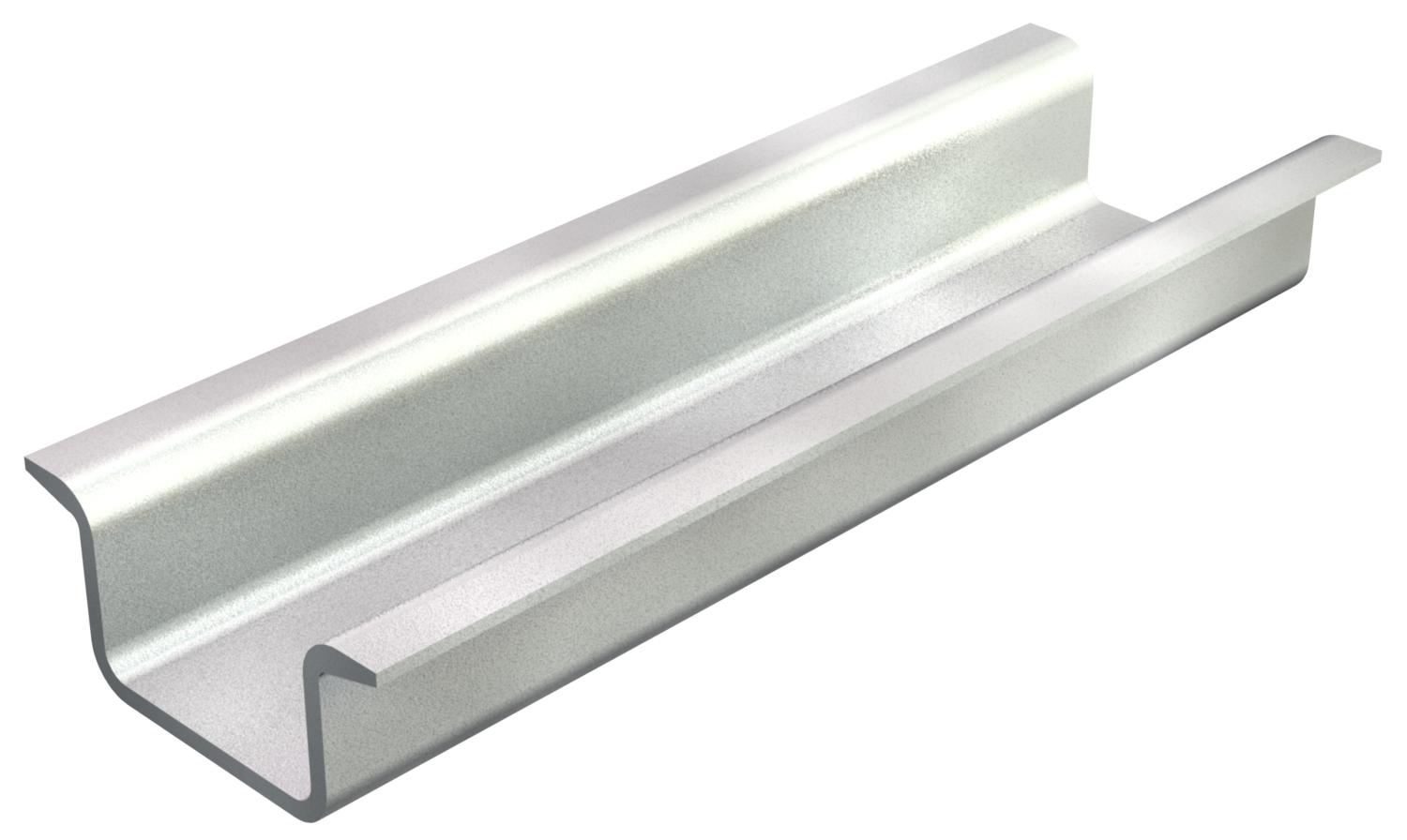

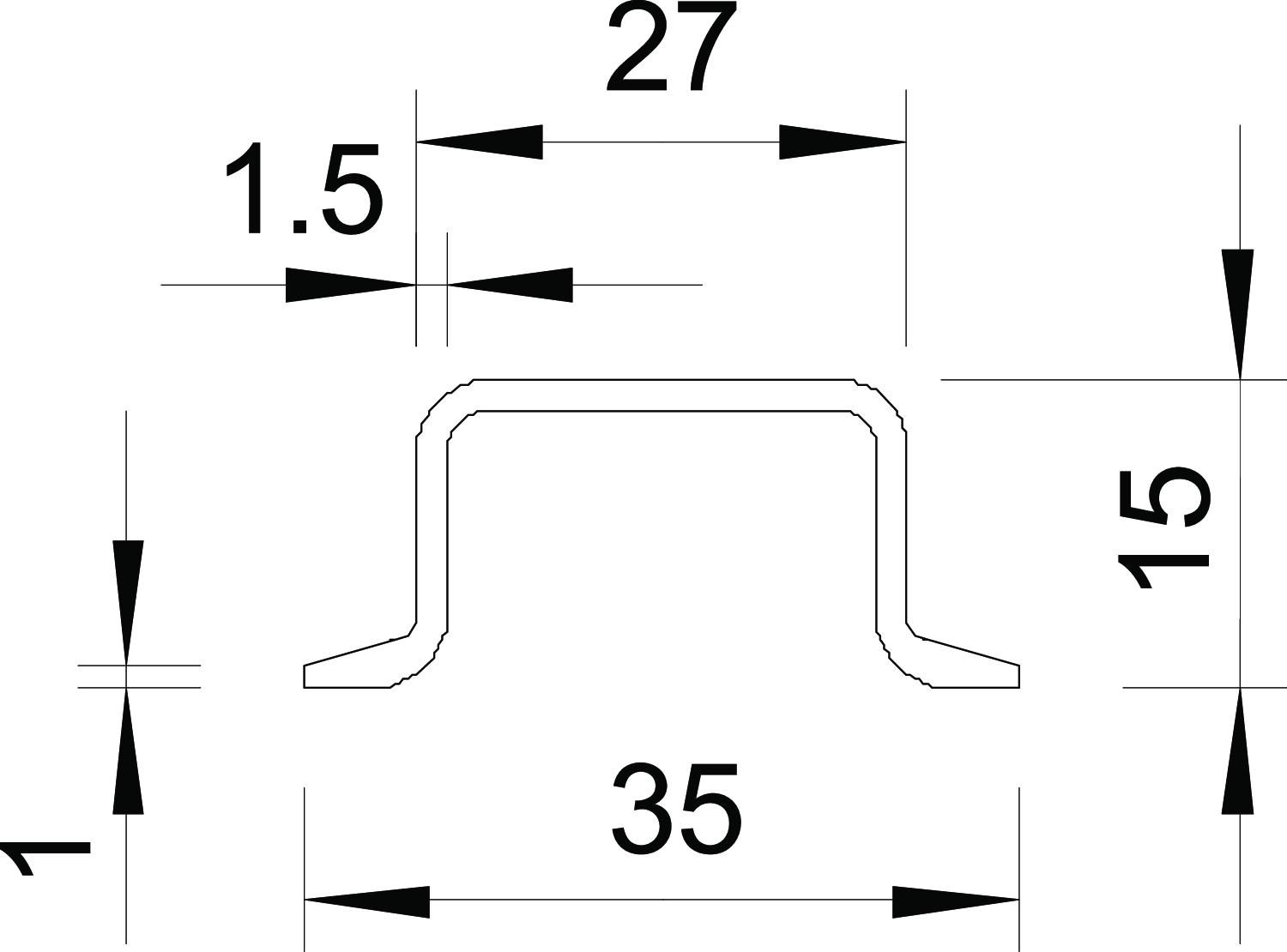

Product descriptionHat profile rail 35 x 15 mm similar to DIN EN 60715 (formerly DIN EN 50022), but with material thickness 1.5 mm.
-
- Technical data
-
Technical data
Bundle 20 m CO₂ Footprint (GWP) Cradle-to-Gate 1,231 kg CO₂e / 1 Meter Dimension 2000x35x15 Height 15 mm Hole shape (ETIM) Without Length 2000 mm Material Steel Material thickness 1,5 mm Surface Electrogalvanized, transparently passivated Version for Unperforated Version, rails Support rail DIN EN 60715 Width 35 mm - All types
- Downloads
-
Data sheet 2069 15 1.5 GTP / 1115421 , 0.17MB , pdfBrochure Rail systems , 2.10MB , pdfEU declaration of conformity 2069 15 1.5 GTP / 1115421 , 0.10MB , pdfREACH Declaration of conformity 2069 15 1.5 GTP / 1115421 , 0.12MB , pdfRoHS Declaration of conformity 2069 15 1.5 GTP / 1115421 , 0.12MB , pdf
