Hat profile rail set

Item no. 1115876 | EAN 4012196614257

Item no. / Types

Length

Product description

Product description

Hat profile rail 35 x 7.5 mm to DIN EN 60715 (formerly DIN EN 50022).

Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate	0,165 kg CO₂e / 1 Piece
Dimension	119x35x7,5
Height	8 mm

Length	118 mm
Version, rails	Support rail DIN EN 60715
Width	35 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
2069 X06 FS	118 mm	1115876	piece	1 piece
2069 X10 FS	161 mm	1115879	piece	1 piece
2069 X16 FS	211 mm	1115882	piece	1 piece
2069 X25 FS	252 mm	1115887	piece	1 piece

Downloads

Data sheet 2069 X06 FS / 1115876 , 0.20MB , pdf

Brochure Rail systems , 2.10MB , pdf

EU declaration of conformity 2069 X06 FS / 1115876 , 0.10MB , pdf

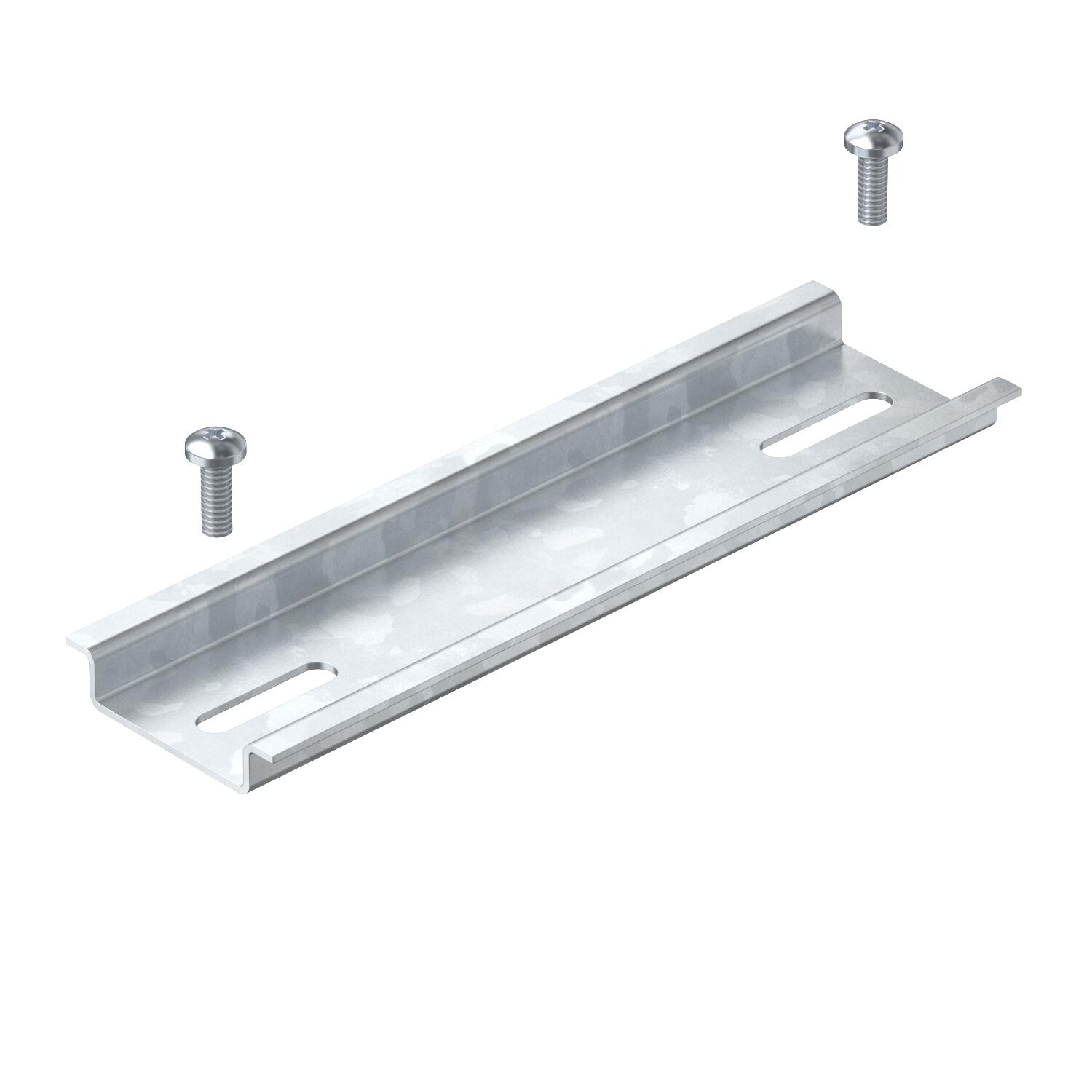

Product graphic 2069 X06 FS / 1115876, 61.56 kB, jpg

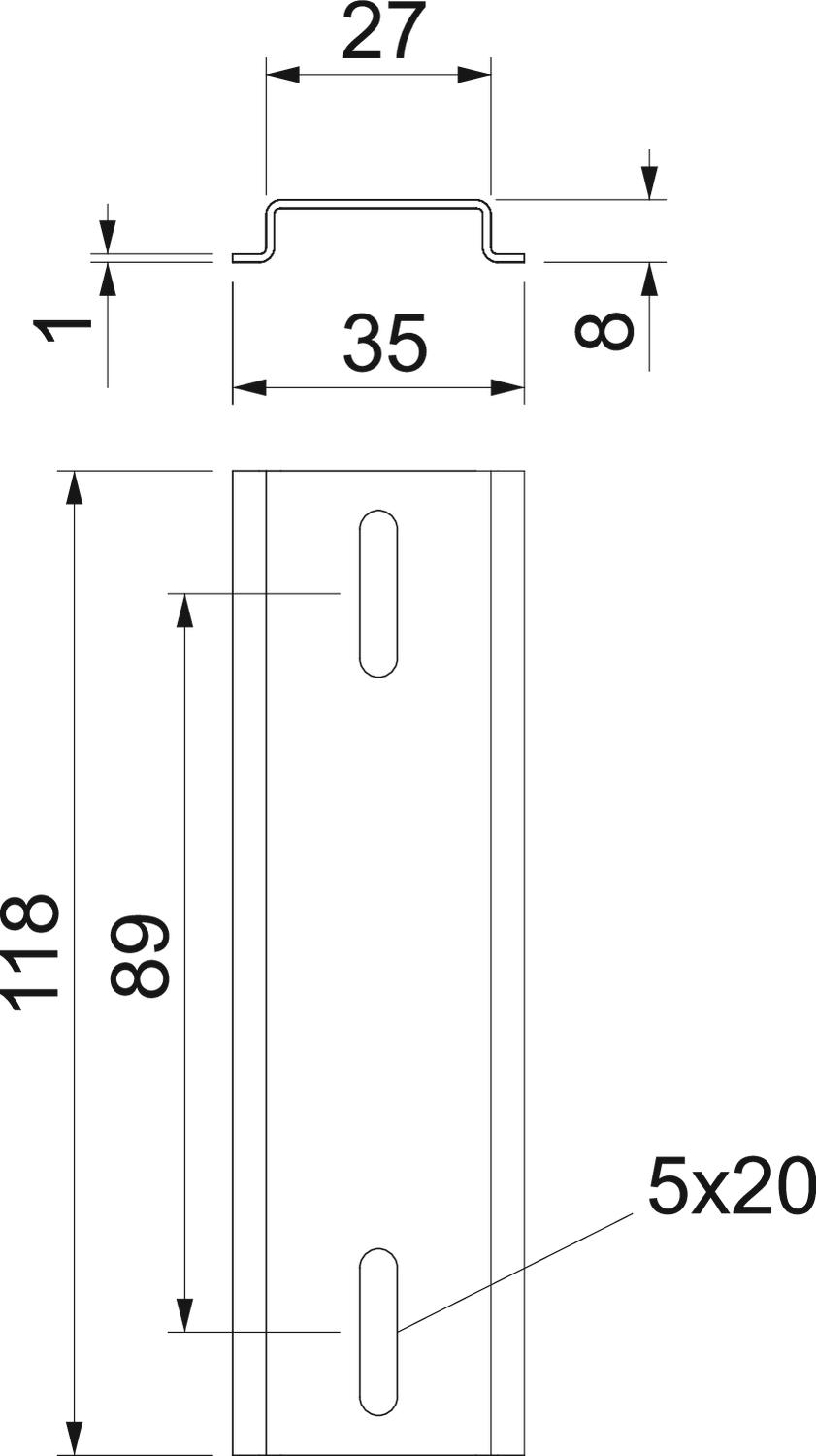

Scale drawing 2069 X06 FS / 1115876, 45.06 kB, jpg

2069 X06 FS / 1115876

1115876_KSTP1.stp, 155.70 kB
