Hat profile rail 35 x 7.5 mm 206 | For T 250 lengthwise | Steel | Strip galvanized
morepic-1 morepic-2

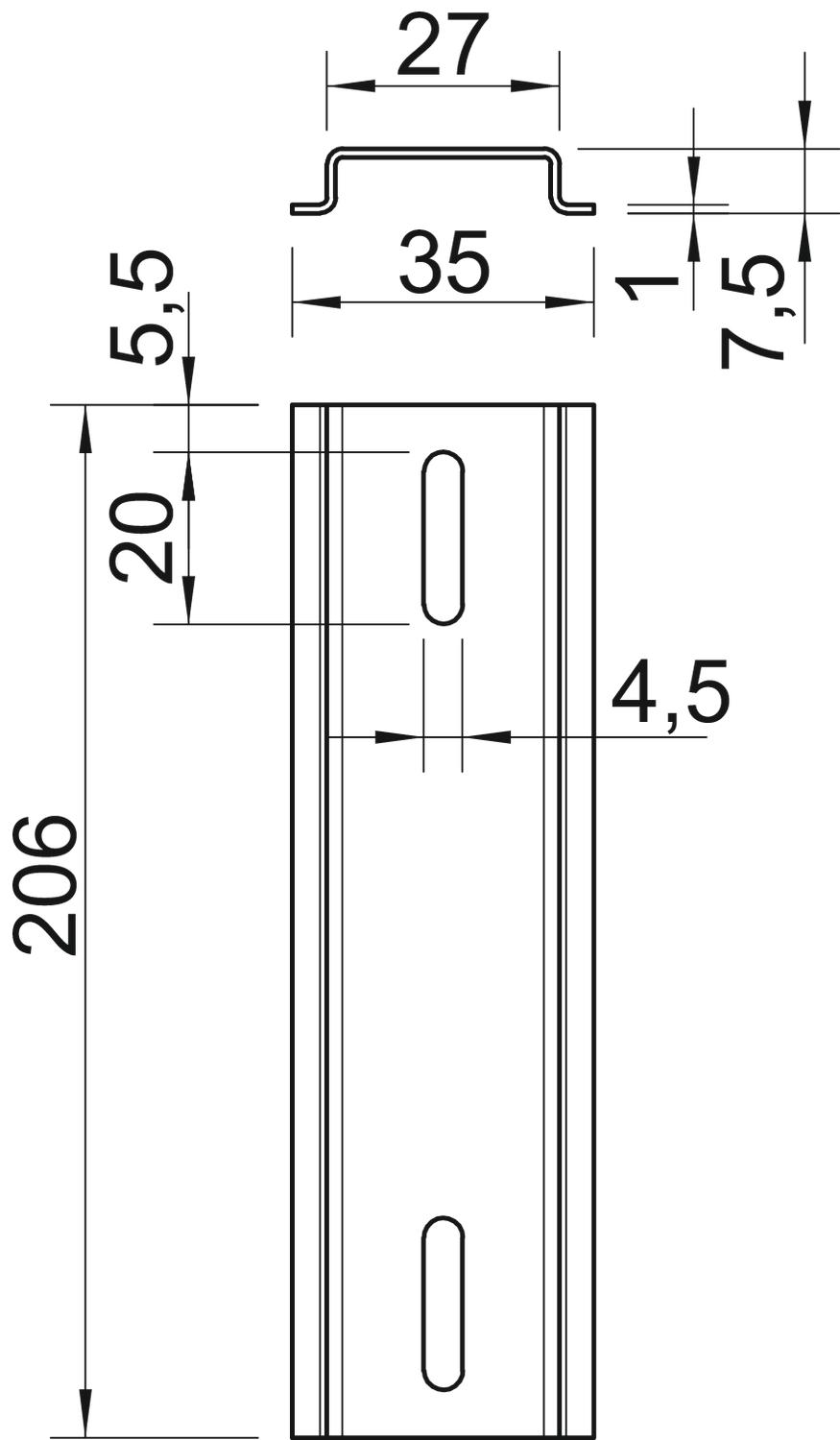

Hat profile rail 35 x 7.5 mm

Item no. 1115386 | EAN 4012195441038

Steel
Strip galvanized
Product description
Product description
Hat profile rail 35 x 7.5 mm to DIN EN 60715 (formerly DIN EN 50022).
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • RoHS-conformant
  • Slot width 35 mm
  • Bolt-firing tool
  • Nail device
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,237 kg CO₂e / 1 Piece
Dimension 206x35x7,5
Height 7,5 mm
Hole shape (ETIM) Long slot
Length 206 mm
Material Steel
Material thickness 1 mm
Surface Strip galvanized
Version for For T 250 lengthwise
Version, rails Support rail DIN EN 60715
Width 35 mm
All types

All types

Types Length Version for Material Surface Item no. Quantity SSU
2069 T60 FS 89 mm For T60 lengthwise + T100 crosswise Steel Strip galvanized 1115380
10 piece
2069 T100 FS 118 mm For T100 lengthwise + T160 crosswise Steel Strip galvanized 1115382
10 piece
2069 T160 FS 157 mm For T160 lengthwise + T250, T350 crosswise Steel Strip galvanized 1115384
10 piece
2069 T250 FS 206 mm For T 250 lengthwise Steel Strip galvanized 1115386
10 piece
2069 T350 FS 245 mm For T 350 lengthwise Steel Strip galvanized 1115388
10 piece
