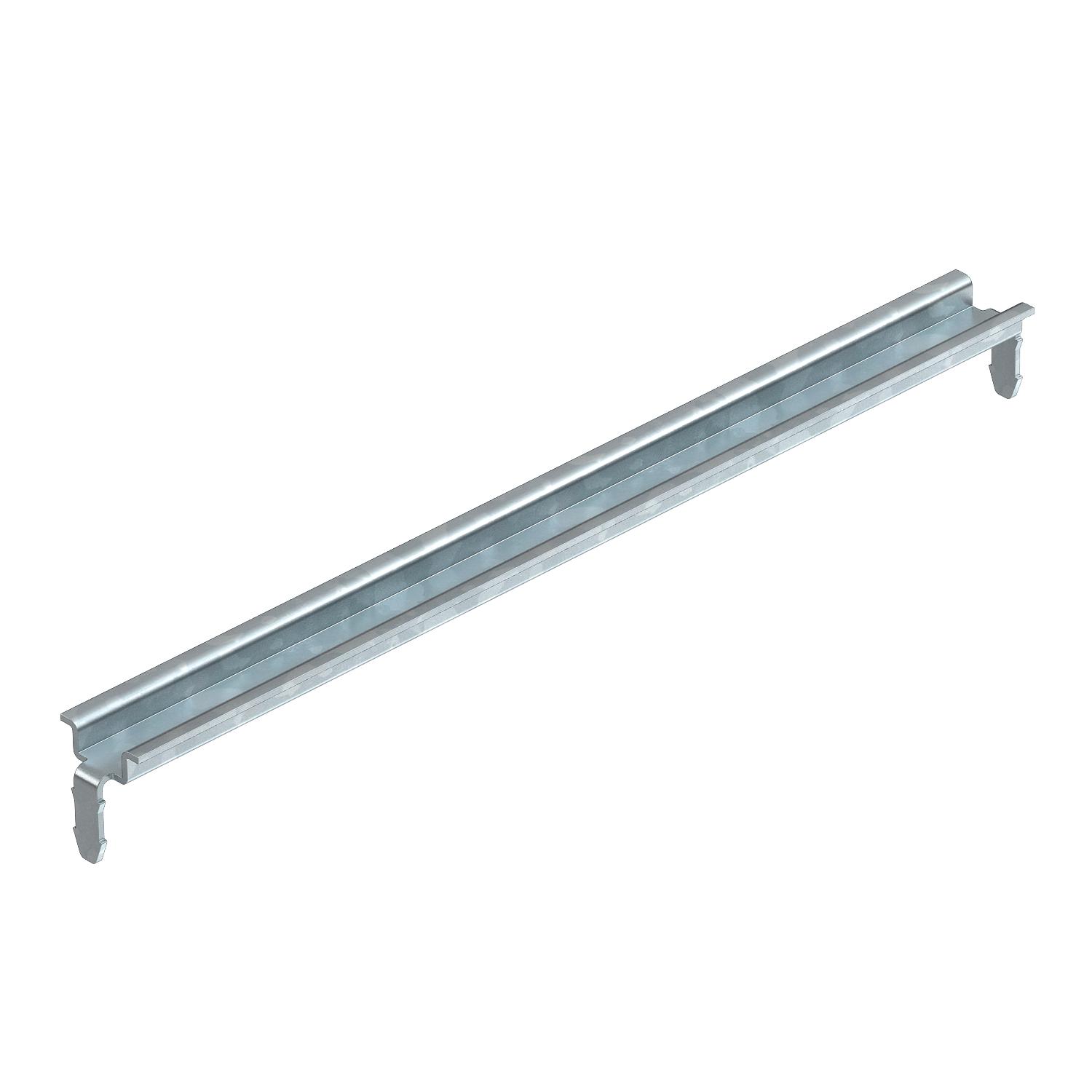

Hat profile rail 15 x 5 mm
Item no. 1115270 | EAN 4012195897958
- Product description
-
Product descriptionHat profile rail 15 x 5 mm to DIN EN 60715 (formerly DIN EN 50045).
-
- Technical data
-
Technical data

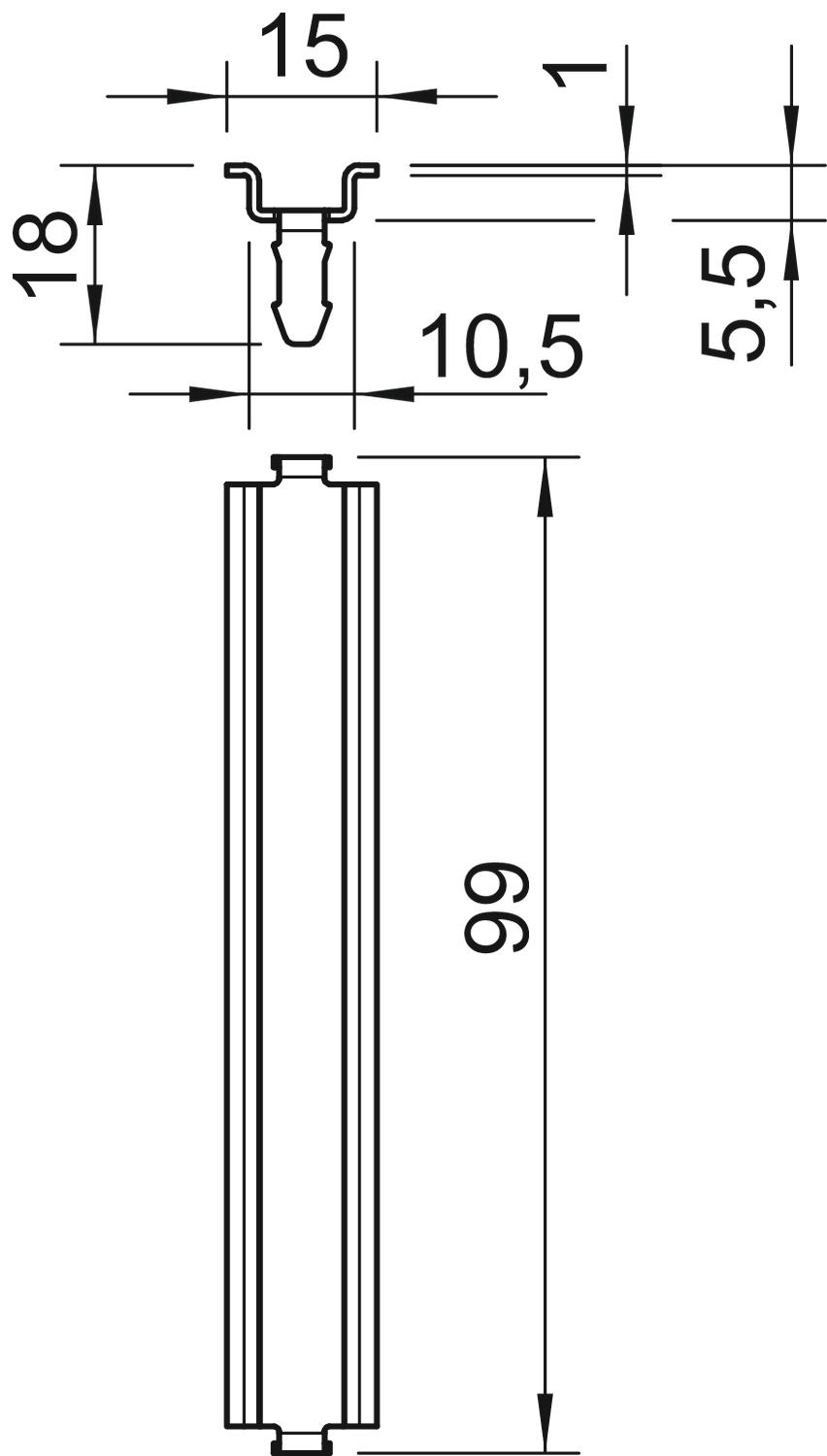

CO₂ Footprint (GWP) Cradle-to-Gate 0,044 kg CO₂e / 1 Piece Dimension 99x15x7,4 Height 5 mm Hole shape (ETIM) Without Length 99 mm Material Steel Material thickness 1 mm Surface Electrogalvanized, transparently passivated Version for For T160 crosswise + T100 lengthwise Version, rails Support rail DIN EN 60715 Width 15 mm - All types
-
All types
- Downloads
-
Data sheet 46277 T160 Q GTP / 1115270 , 0.16MB , pdfBrochure Rail systems , 2.10MB , pdfEU declaration of conformity 46277 T160 Q GTP / 1115270 , 0.10MB , pdfREACH Declaration of conformity 46277 T160 Q GTP / 1115270 , 0.12MB , pdfRoHS Declaration of conformity 46277 T160 Q GTP / 1115270 , 0.13MB , pdf
