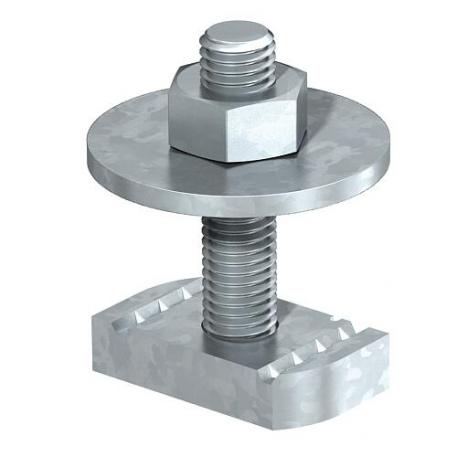

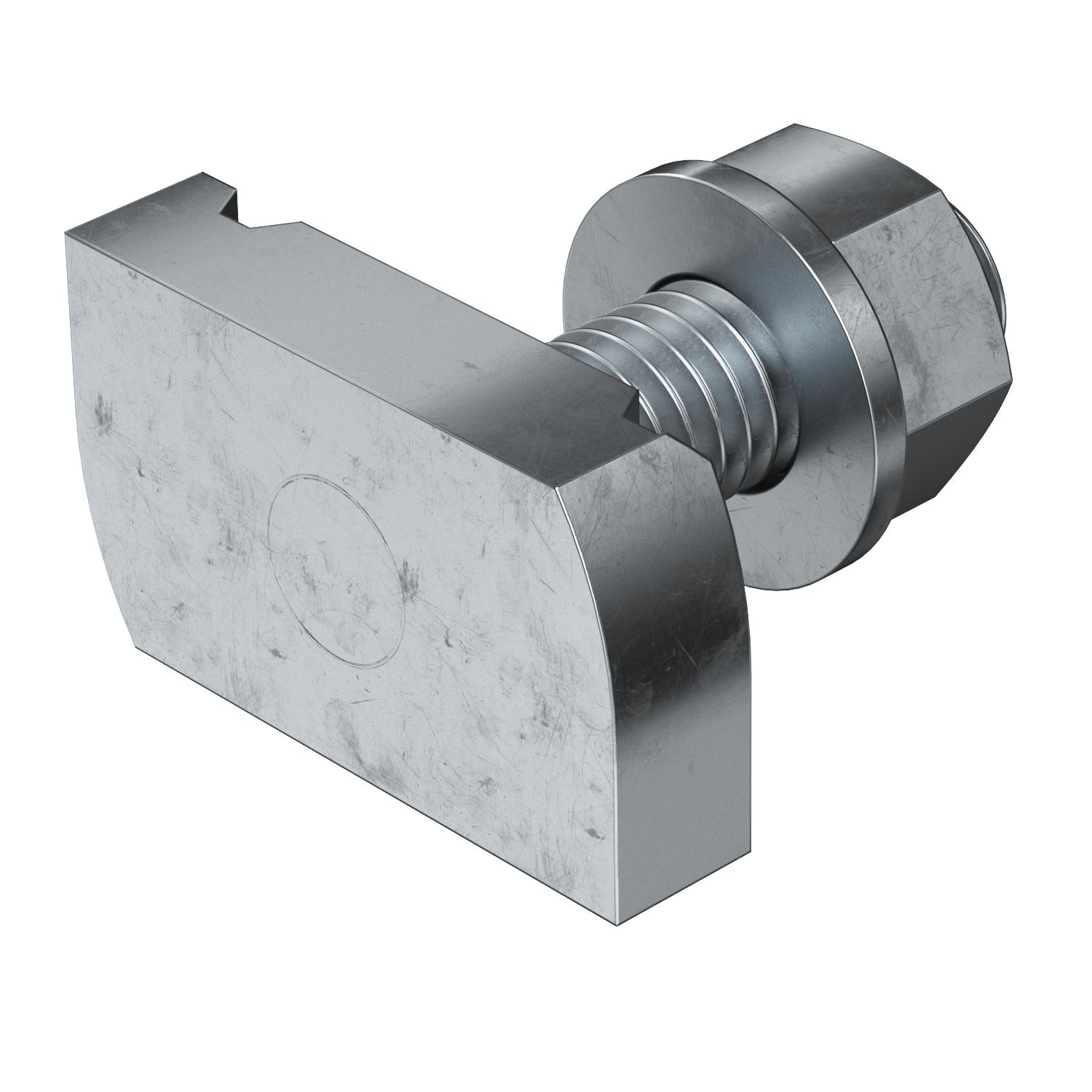

Hammer-head bolt ZL 34.5 | 20 | 8 | M 10 x 30

morepic-1

morepic-2

Hammer-head bolt ZL

Item no. 1148322 | EAN 4012196490110

Item no. / Types

Length	34.5 mm

Width	20 mm

Height

Thread

Product description

Product description

Hammer-head bolt for use with MS4121 and MS4141 profile rails

Technical data

Technical data

Dimension	M10x30mm
Dimension H	8 mm
Dimension L	30 mm
Height	8 mm
Length	34,5 mm
Material	Steel

Suitable for mounting rail	yes
Surface	Zinc slat
Thread	M 10 x 30
Torque	16 Nm
Washer Ø	20 mm
Width	20 mm

All types

All types

Types	Length	Width	Height	Thread	Item no.	Quantity	SSU
MS41HB M6x30 ZL	34.5 mm	20 mm	6 mm	M 6 x 30	1148306	piece	50 piece
MS41HB M8x30 ZL	34.5 mm	20 mm	6 mm	M 8 x 30	1148310	piece	50 piece
MS41HB M8x60 ZL	34.5 mm	20 mm	6 mm	M 8 x 60	1148314	piece	25 piece
MS41HB M8x100 ZL	34.5 mm	20 mm	6 mm	M 8 x 100	1148318	piece	20 piece
MS41HB M10x30 ZL	34.5 mm	20 mm	8 mm	M 10 x 30	1148322	piece	50 piece
MS41HB M10x60 ZL	34.5 mm	20 mm	8 mm	M 10 x 60	1148326	piece	25 piece
MS41HB M10x100ZL	34.5 mm	20 mm	8 mm	M 10 x 100	1148330	piece	20 piece
MS41HB M12x30 ZL	34.5 mm	20 mm	9 mm	M 12 x 30	1148334	piece	50 piece
MS41HB M12x60 ZL	34.5 mm	20 mm	9 mm	M 12 x 60	1148338	piece	25 piece
MS41HB M12x100ZL	34.5 mm	20 mm	9 mm	M 12 x 100	1148342	piece	20 piece

Downloads

Data sheet MS41HB M10x30 ZL / 1148322 , 0.17MB , pdf

Brochure Rail systems , 2.10MB , pdf

Declaration of conformity Declaration of conformity ,

Download

Declaration of conformity Declaration of conformity ,

Download

Product graphic MS41HB M10x30 ZL / 1148322, 113.21 kB, jpg

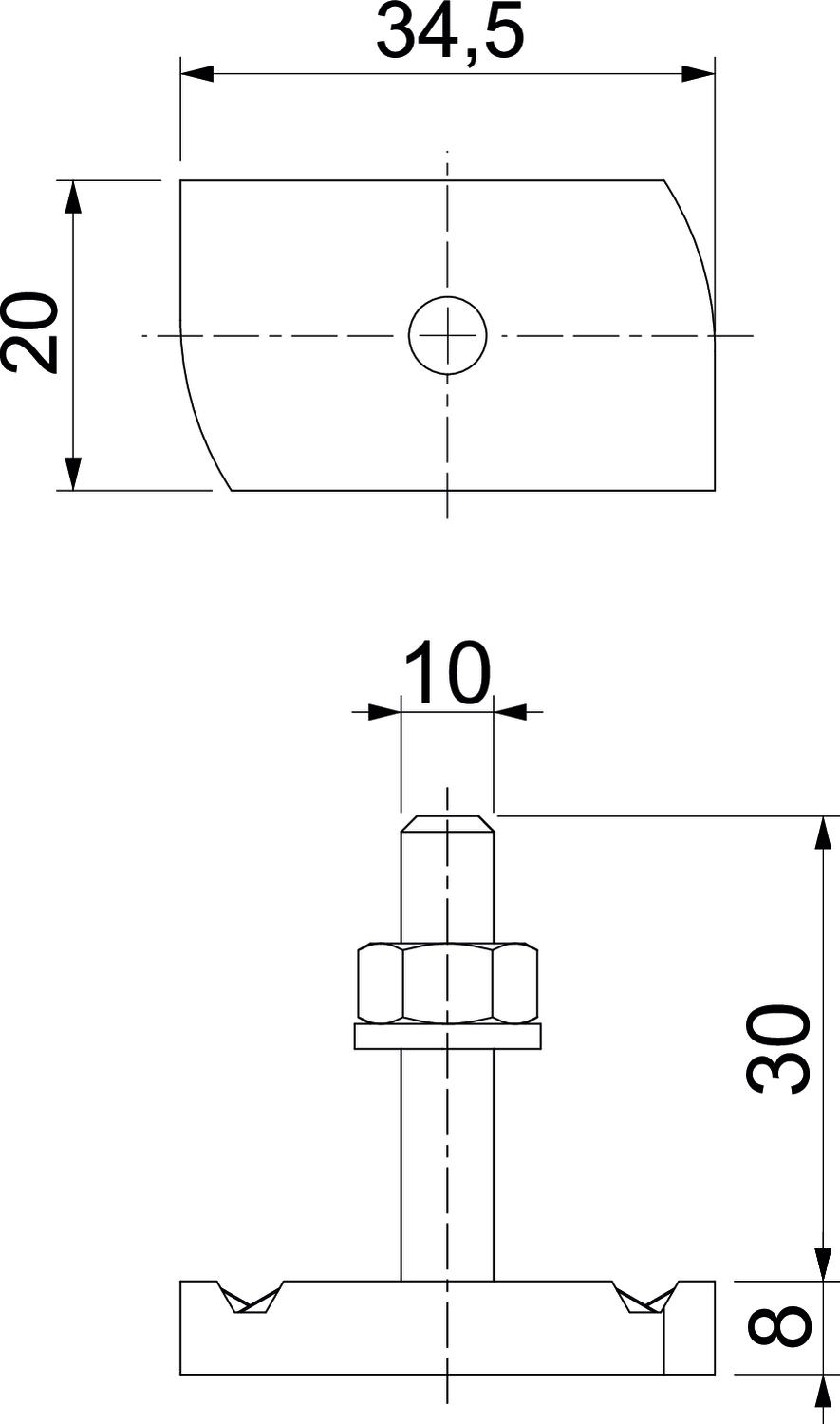

Scale drawing MS41HB M10x30 ZL / 1148322, 47.31 kB, jpg

MS41HB M10x30 ZL / 1148322
