Hammer-head bolt A4 33.5 | 16 | 6 | M 10 x 60mm

morepic-1

morepic-2

Hammer-head bolt A4

Item no. 1148092 | EAN 4012196488995

Item no. / Types

Length	33.5 mm

Width	16 mm

Height

Thread

Product description

Product description

Hammer-head bolt for use with CM3015, CM3518 and AM3518 profile rails

Technical data

Technical data

Dimension	M10x60mm
Dimension L	60 mm
Height	6 mm
Length	33,5 mm
Material	Stainless steel

Suitable for mounting rail	yes
Surface	Bright, treated
Thread	M 10 x 60mm
Thread metric	10
Width	16 mm

All types

All types

Types	Length	Width	Height	Thread	Item no.	Quantity	SSU
ACMHB M6x30 A4	33.5 mm	16 mm	5 mm	M 6 x 30mm	1148076	piece	50 piece
ACMHB M8x30 A4	33.5 mm	16 mm	5 mm	M 8 x 30mm	1148080	piece	50 piece
ACMHB M8x60 A4	33.5 mm	16 mm	5 mm	M 8 x 60mm	1148084	piece	25 piece
ACMHB M10x30 A4	33.5 mm	16 mm	6 mm	M 10 x 30mm	1148088	piece	50 piece
ACMHB M10x60 A4	33.5 mm	16 mm	6 mm	M 10 x 60mm	1148092	piece	25 piece

Downloads

Data sheet ACMHB M10x60 A4 / 1148092 , 0.16MB , pdf

Brochure Rail systems , 2.10MB , pdf

Product graphic ACMHB M10x60 A4 / 1148092, 23.79 kB, jpg

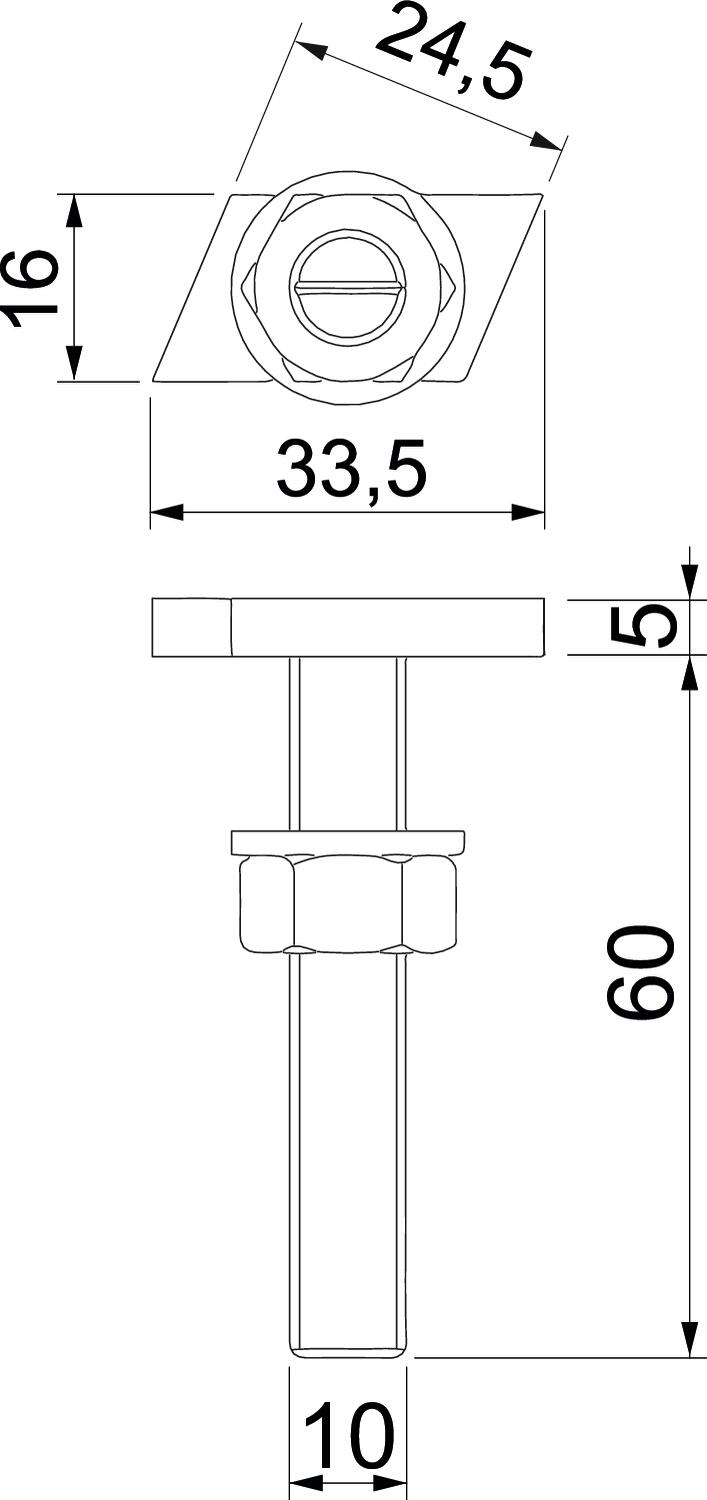

Scale drawing ACMHB M10x60 A4 / 1148092, 53.80 kB, jpg

ACMHB M10x60 A4 / 1148092
