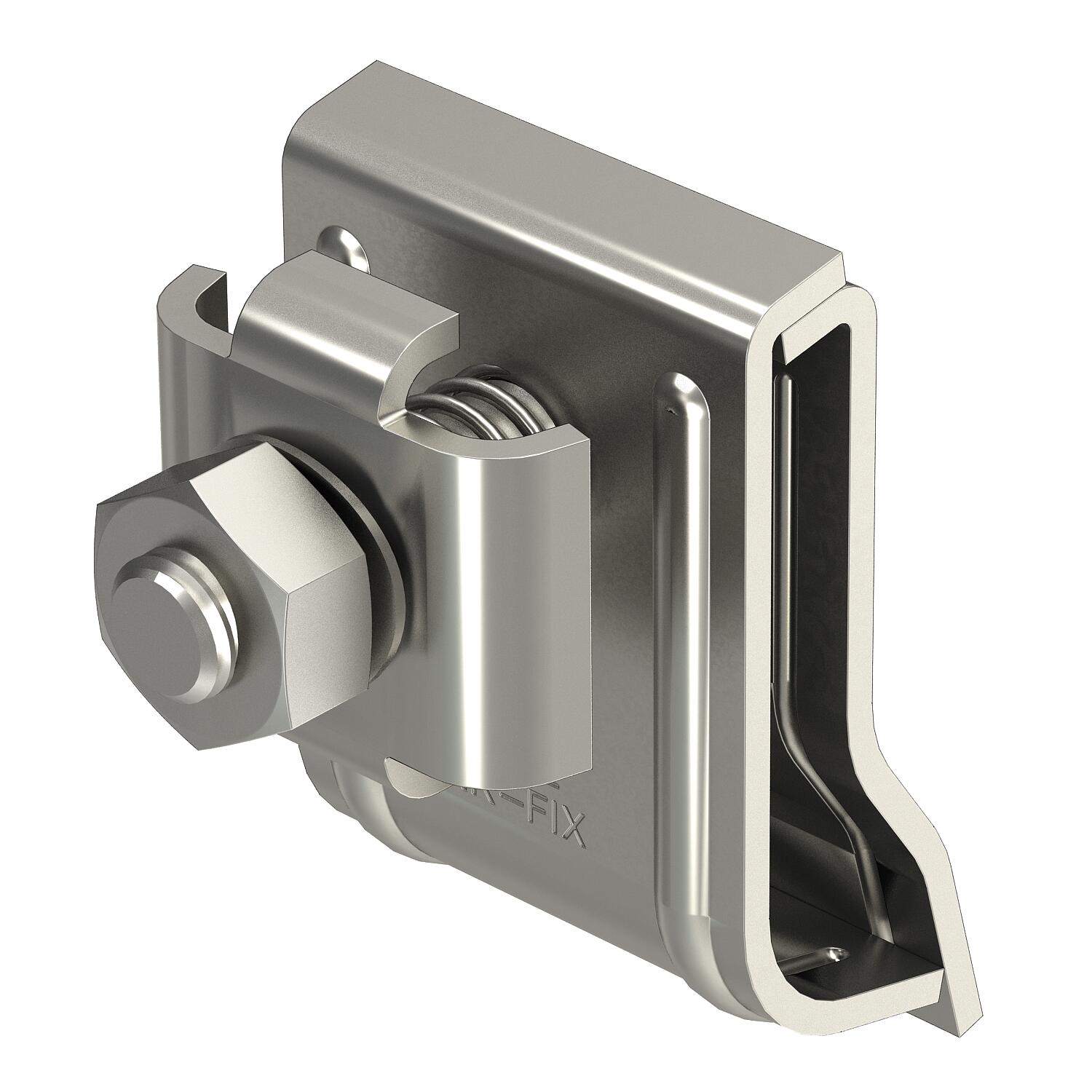

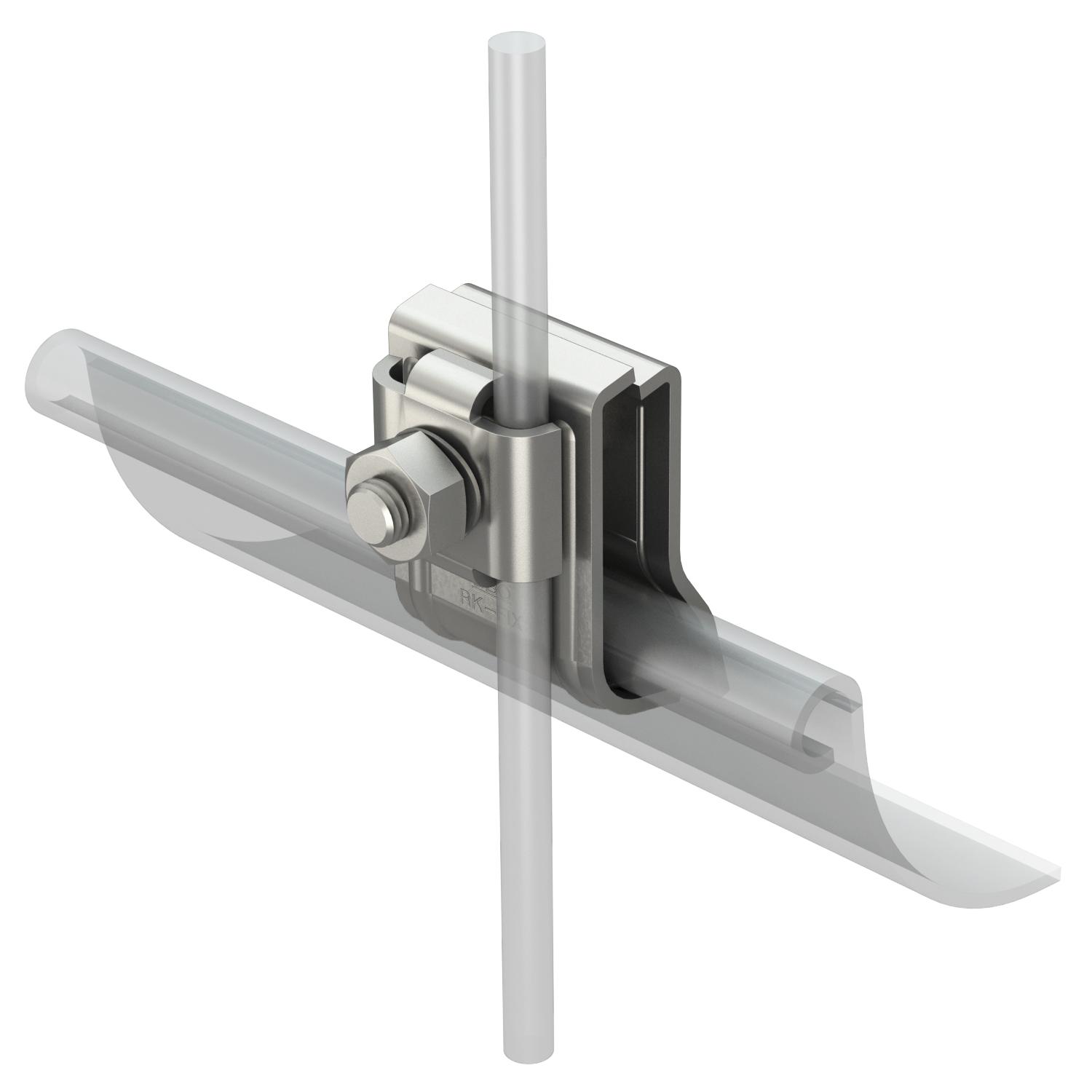

Gutter clamp RK-FIX A2
Item no. 5316459 | EAN 4012195433729
- Product description
-
Product description
• For up to 2 round conductors Rd 6 or Rd 8
• Suitable for all bead thicknesses (15–25 mm)
• With 1 truss-head bolt M10 x 45
• With spring for prefixing on rain gutter
• Clamp body and crossbar made of rustproof stainless steel (V2A)
• Nut, bolt and spring made of stainless steel (V2A)
• Tested to VDE 0185-561-1 (IEC/EN 62561-1)
-
- Technical data
-
Technical data
Clamping range, max. 25 mm Clamping range, min. 15 mm Dimension 2x8 / 2x6mm Fit 2 x Rd 8/ 2 x Rd 6 mm Lightning current carrying capacity H/100 kA Material Stainless steel Type of connector Roof gutter clamp Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet RK-FIX VA / 5316459 , 0.16MB , pdfDeclaration of conformity Declaration of conformity ,Declaration of conformity Declaration of conformity ,REACH Declaration of conformity RK-FIX VA / 5316459 , 0.12MB , pdfRoHS Declaration of conformity RK-FIX VA / 5316459 , 0.12MB , pdf
