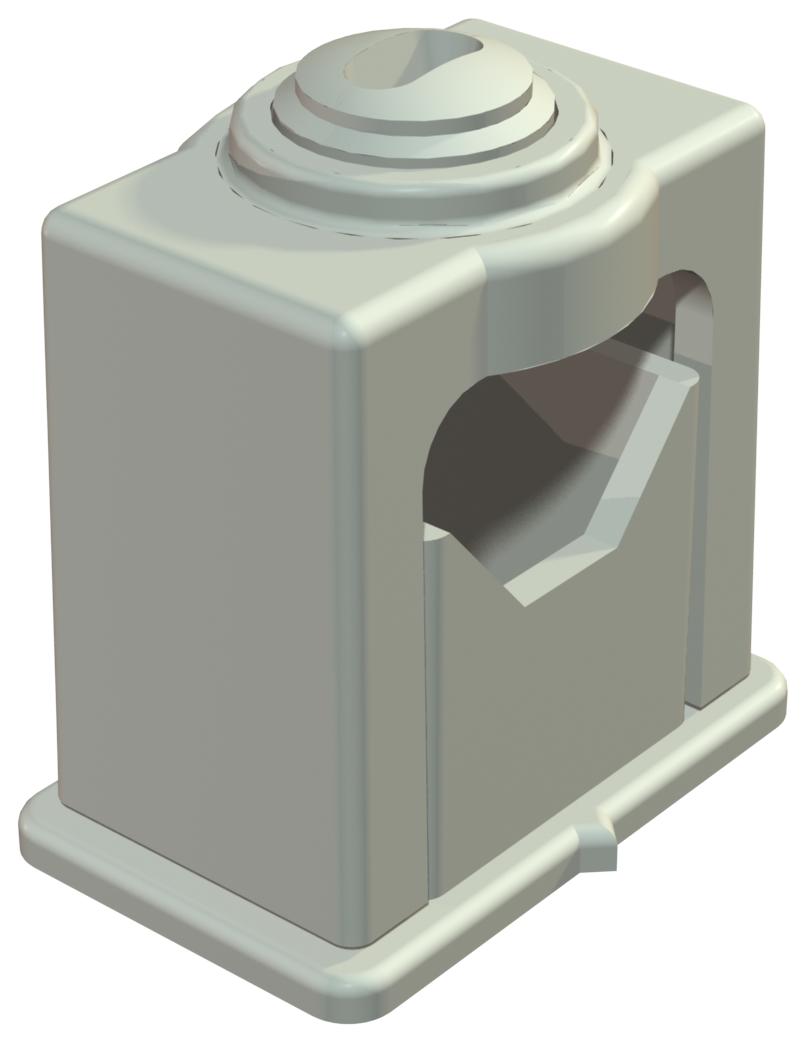

Grip ISO clip, single 6 | 16 | Light grey; RAL 7035

Grip ISO clip, single

Item no. 2105012 | EAN 4012195195436

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Colour	Light grey; RAL 7035

Product description

Product description

Solid cable fastening through clamping screws, with adhesive base, slot and for screwing to M6 thread.
Use the Impu-Fix ribbon conductor quick adhesive, type 509, to stick the polystyrene clips to masonry and concrete.

Technical data

Technical data

Clamping range D, max.	16 mm
Clamping range D, min.	6 mm
Colour	Light grey; RAL 7035

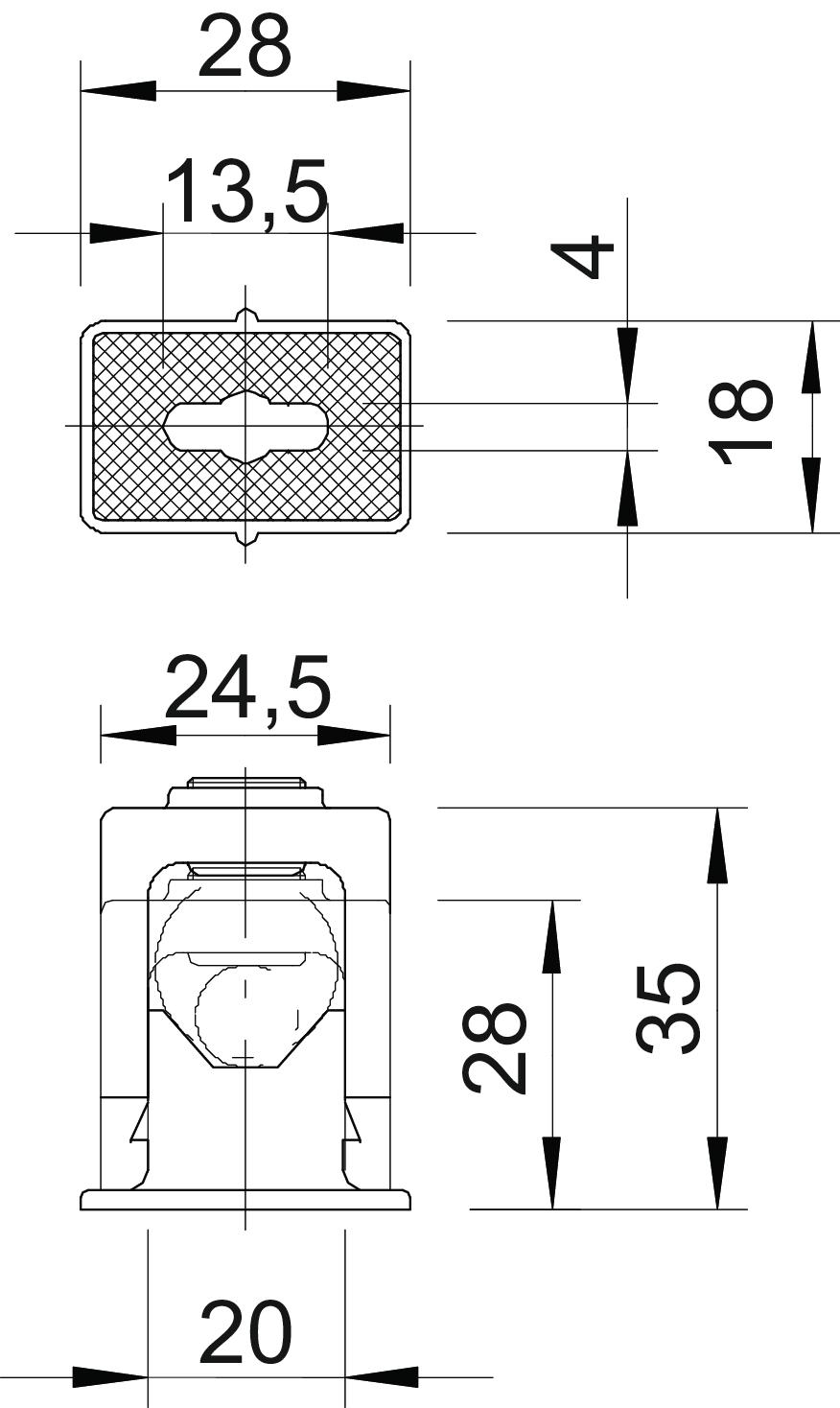

Dimension	6-16mm
Dimension a	28 mm
Dimension a1 (mm)	13,5 mm
Dimension b	18 mm
Dimension b1	4 mm
Dimension c	24,5 mm

Dimension d	28 mm
Dimension e	35 mm
Dimension f	20 mm
Expandable	no
Fastening type	Screw hole
Halogen-free	yes
Impact-resistant	yes
Material	Polystyrene
Number of cables/pipes	1

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Colour	Item no.	Quantity	SSU
3040 LGR	6 mm	16 mm	Light grey; RAL 7035	2105012	piece	100 piece
3041 LGR	16 mm	24 mm	Light grey; RAL 7035	2105039	piece	50 piece
3042 LGR	24 mm	34 mm	Light grey; RAL 7035	2105055	piece	25 piece
