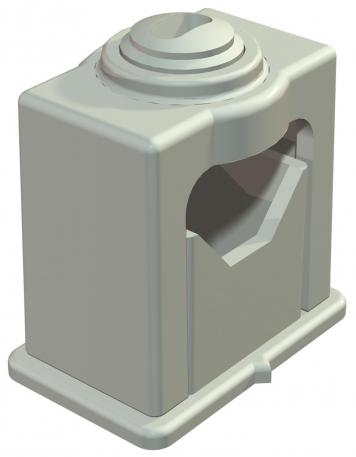

Grip ISO clip, single 16 | 24 | Light grey; RAL 7035

Grip ISO clip, single

Item no. 2105039 | EAN 4012195195498

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Colour	Light grey; RAL 7035

Product description

Product description

Solid cable fastening through clamping screws, with adhesive base, slot and for screwing to M6 thread.
Use the Impu-Fix ribbon conductor quick adhesive, type 509, to stick the polystyrene clips to masonry and concrete.

Technical data

Technical data

Clamping range D, max.	24 mm
Clamping range D, min.	16 mm
Colour	Light grey; RAL 7035
Dimension	16-24mm
Expandable	no

Fastening type	Screw hole
Halogen-free	yes
Impact-resistant	yes
Material	Polystyrene
Number of cables/pipes	1

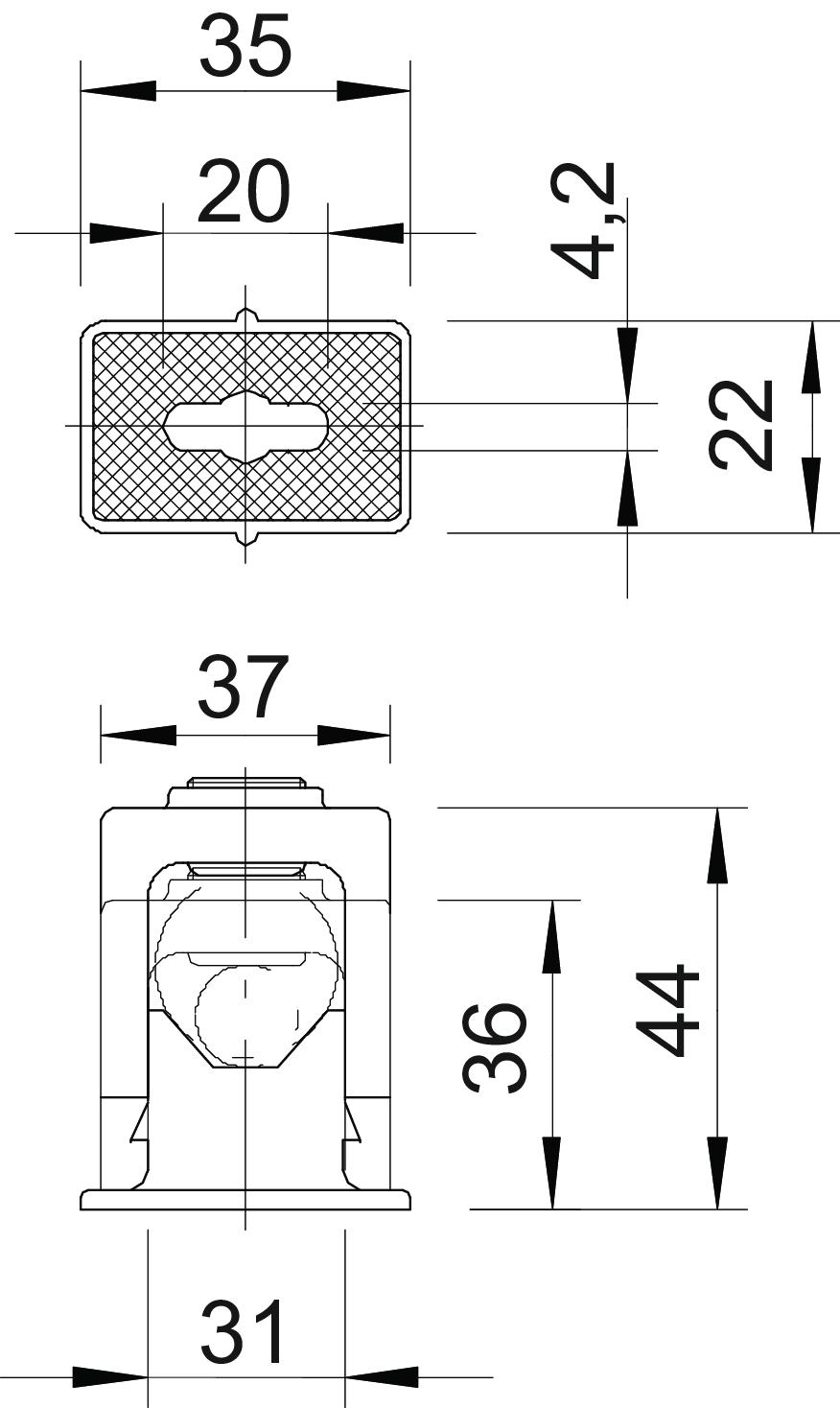

Dimensions

Dimension a	35 mm
Dimension a1 (mm)	20 mm
Dimension b	22 mm
Dimension b1	4,2 mm

Dimension c	37 mm
Dimension d	36 mm
Dimension e	44 mm
Dimension f	31 mm

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Colour	Item no.	Quantity	SSU
3040 LGR	6 mm	16 mm	Light grey; RAL 7035	2105012	piece	100 piece
3041 LGR	16 mm	24 mm	Light grey; RAL 7035	2105039	piece	50 piece
3042 LGR	24 mm	34 mm	Light grey; RAL 7035	2105055	piece	25 piece
