Grip ISO clip, double 6 | 16 | Light grey; RAL 7035

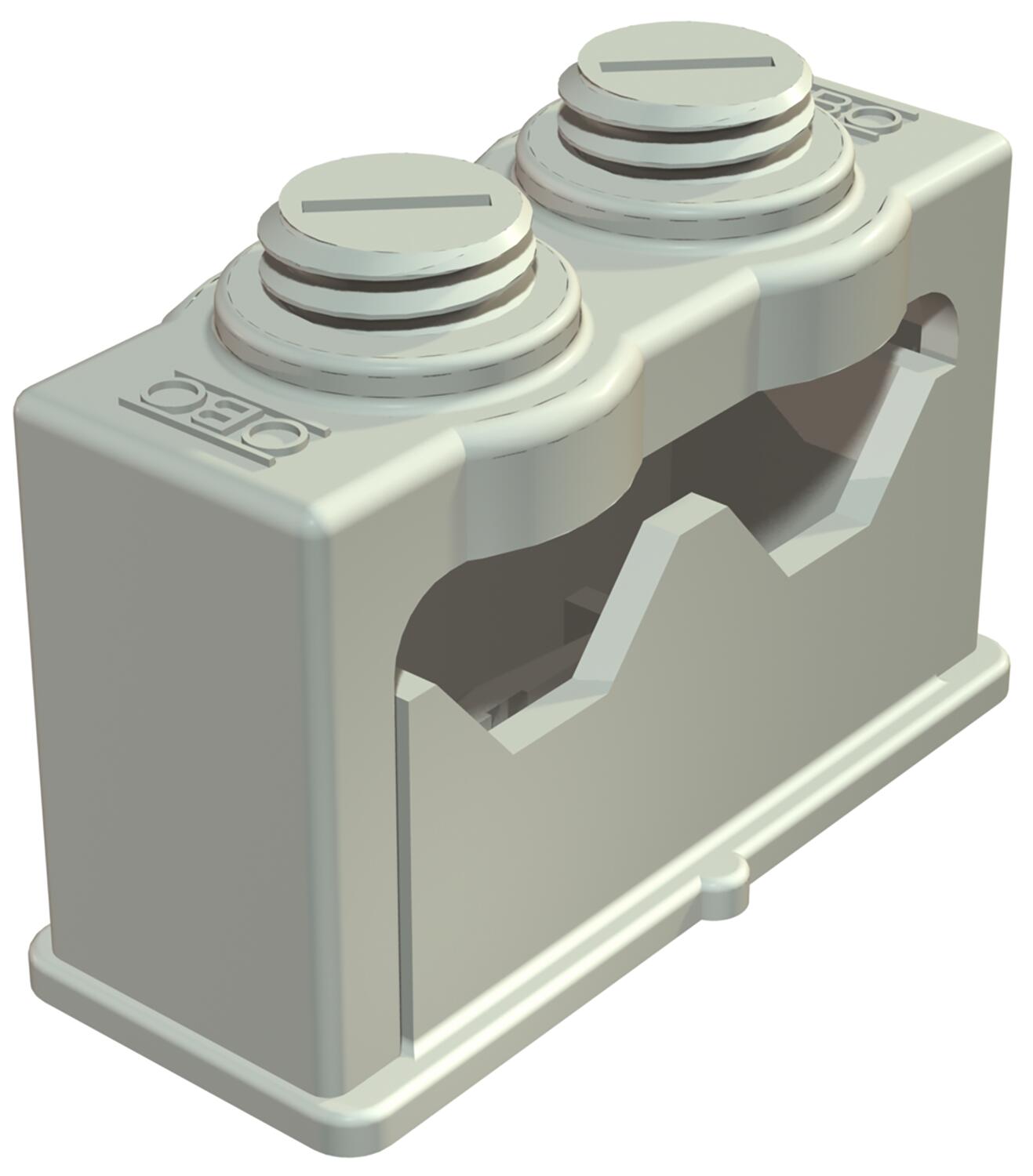

Grip ISO clip, double

Item no. 2107015 | EAN 4012195195610

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Colour	Light grey; RAL 7035

Product description

Product description

Solid cable fastening through clamping screws, with adhesive base, slot and for screwing to M6 thread.
Use the Impu-Fix ribbon conductor quick adhesive, type 509, to stick the polystyrene clips to masonry and concrete.

Technical data

Technical data

Clamping range D, max.	16 mm
Clamping range D, min.	6 mm
Colour	Light grey; RAL 7035

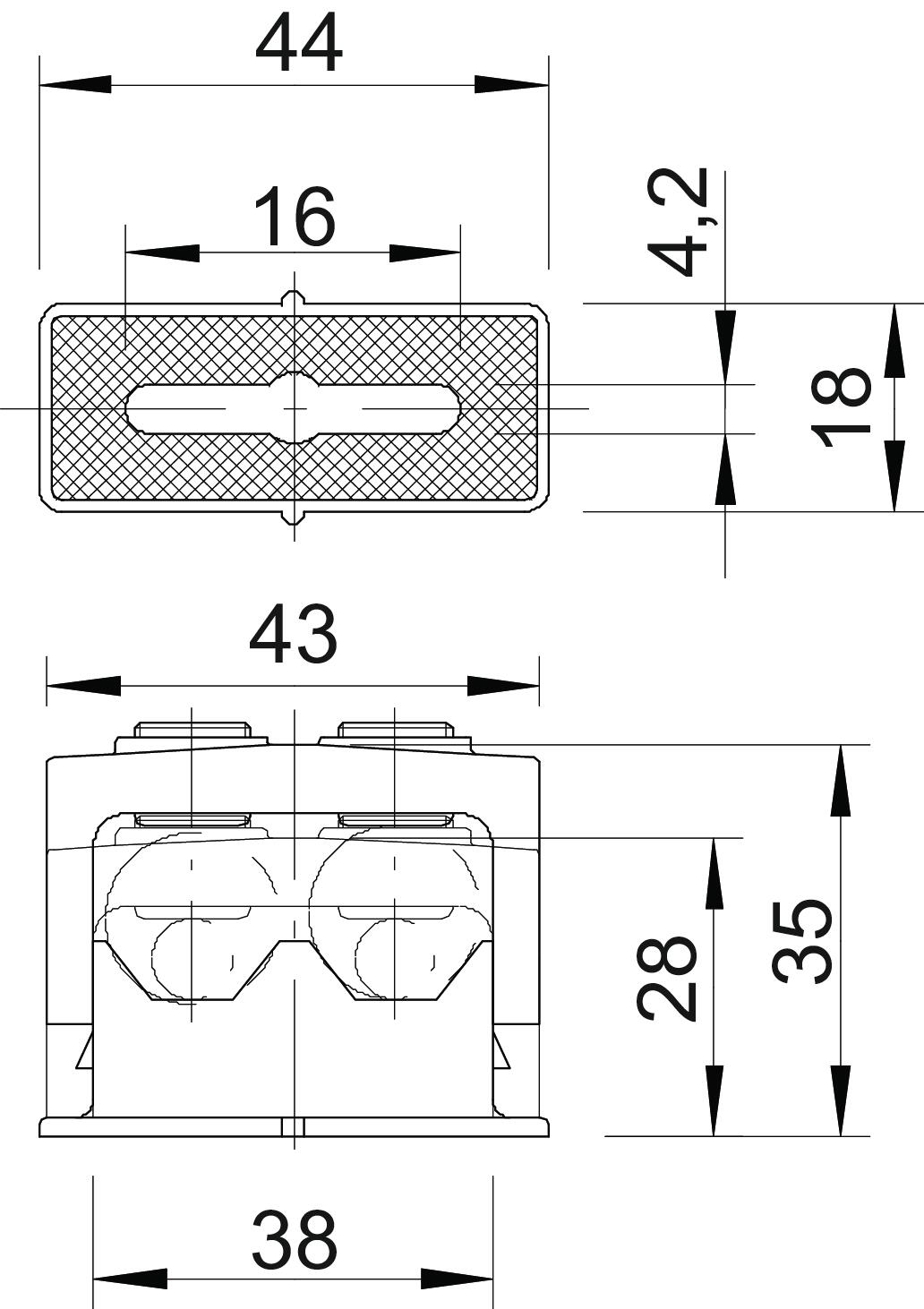

Dimension	6-16mm
Dimension a	44 mm
Dimension a1 (mm)	16 mm
Dimension b	18 mm
Dimension b1	4,2 mm
Dimension c	43 mm

Dimension d	28 mm
Dimension e	35 mm
Dimension f	38 mm
Expandable	no
Fastening type	Screw hole
Halogen-free	yes
Impact-resistant	yes
Material	Polystyrene
Number of cables/pipes	2
