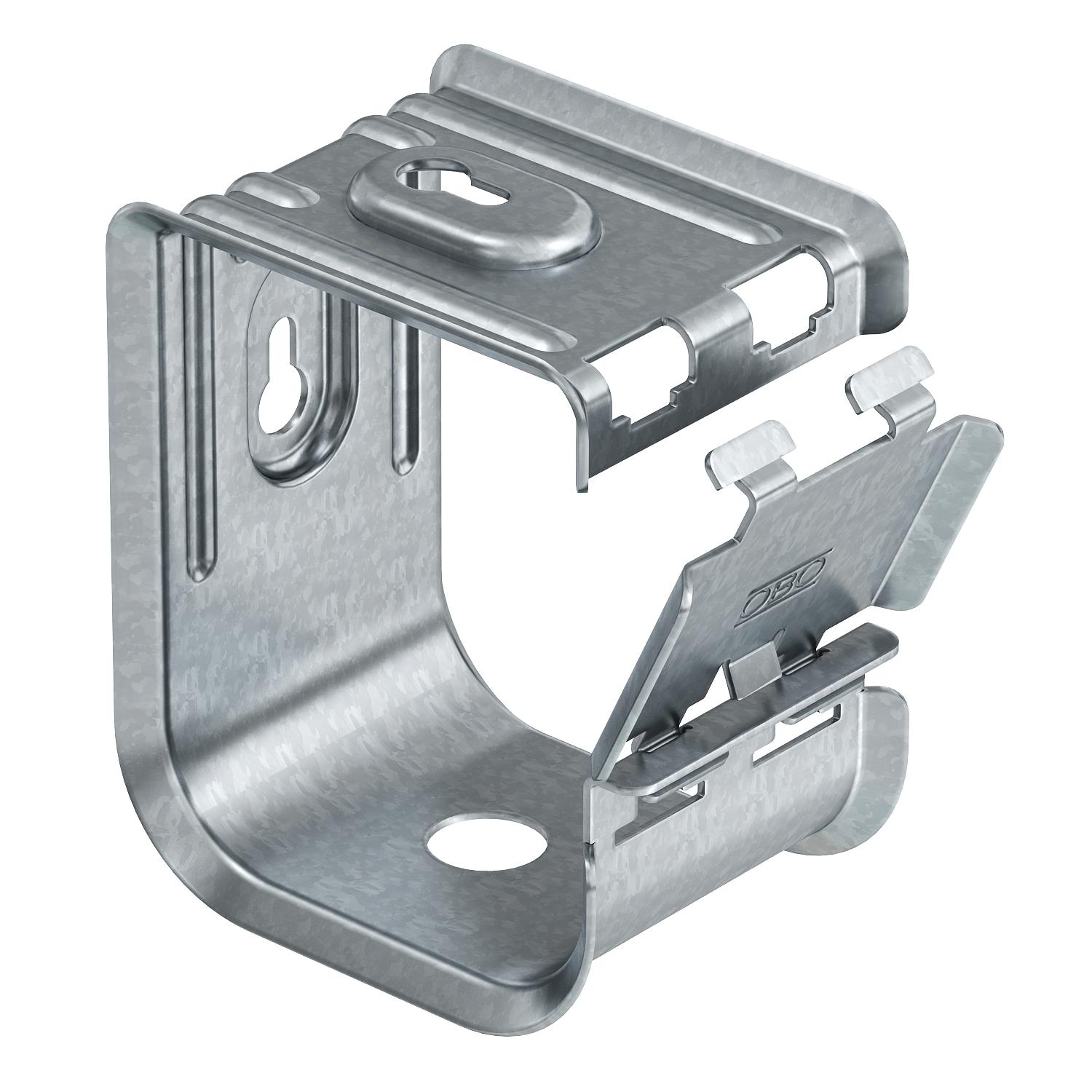

Grip collection clamp, metal 70 FS

Item no. 2207060 | EAN 4012195022497

2207060 / 2031 M 70 FS
70
Product description

Product description

Metal grouped support for high mechanical stability, even in case of fire. Suitable for safe mounting above fire protection ceilings. Also approved as a cable-specific variant for the maintenance of electrical function to DIN 4102 Part 12. For wall and ceiling mounting. Lock can be opened without tools. Detailed information on the approved routing variants can be found in the appropriate testing documentation.
  • Underwriters Laboratories Inc., USA
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • OBO Grip, wall routing type
  • OBO Grip, ceiling routing type
  • Function maintenance class E30
  • Function maintenance class E90
Technical data

Technical data

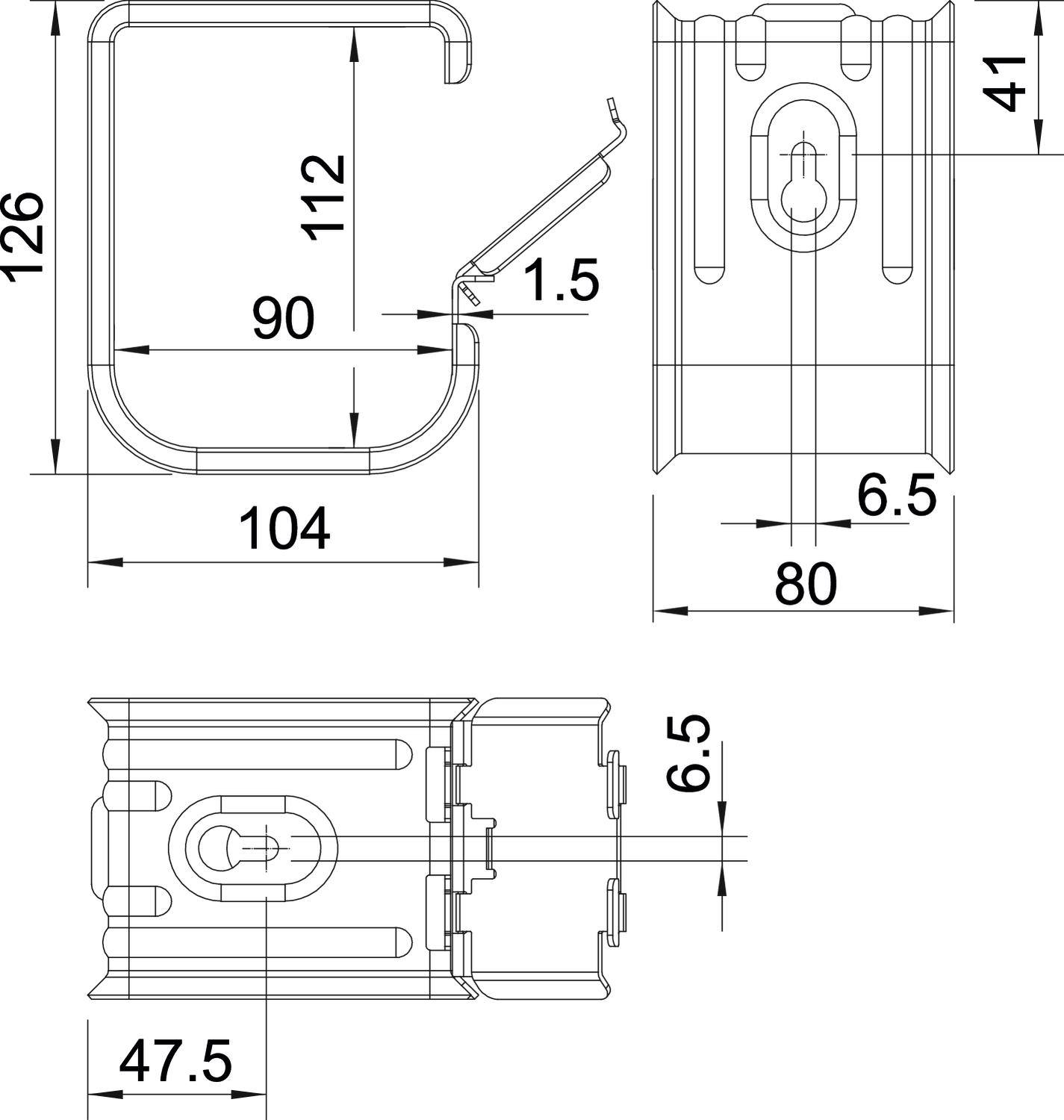

Dimension 70x NYM3x1,5
Flame-resistant version no
Halogen-free yes
Maintain electrical functions yes
Material Steel
No. of conductors NYM 3 x 1.5 70
Surface Strip galvanized
With anchor no
All types

All types

Types No. of conductors NYM 3 x 1.5 Item no. Quantity SSU
2031 M 70 FS 70 2207060
10 piece
Downloads

2031 M 70 FS / 2207060
Download
