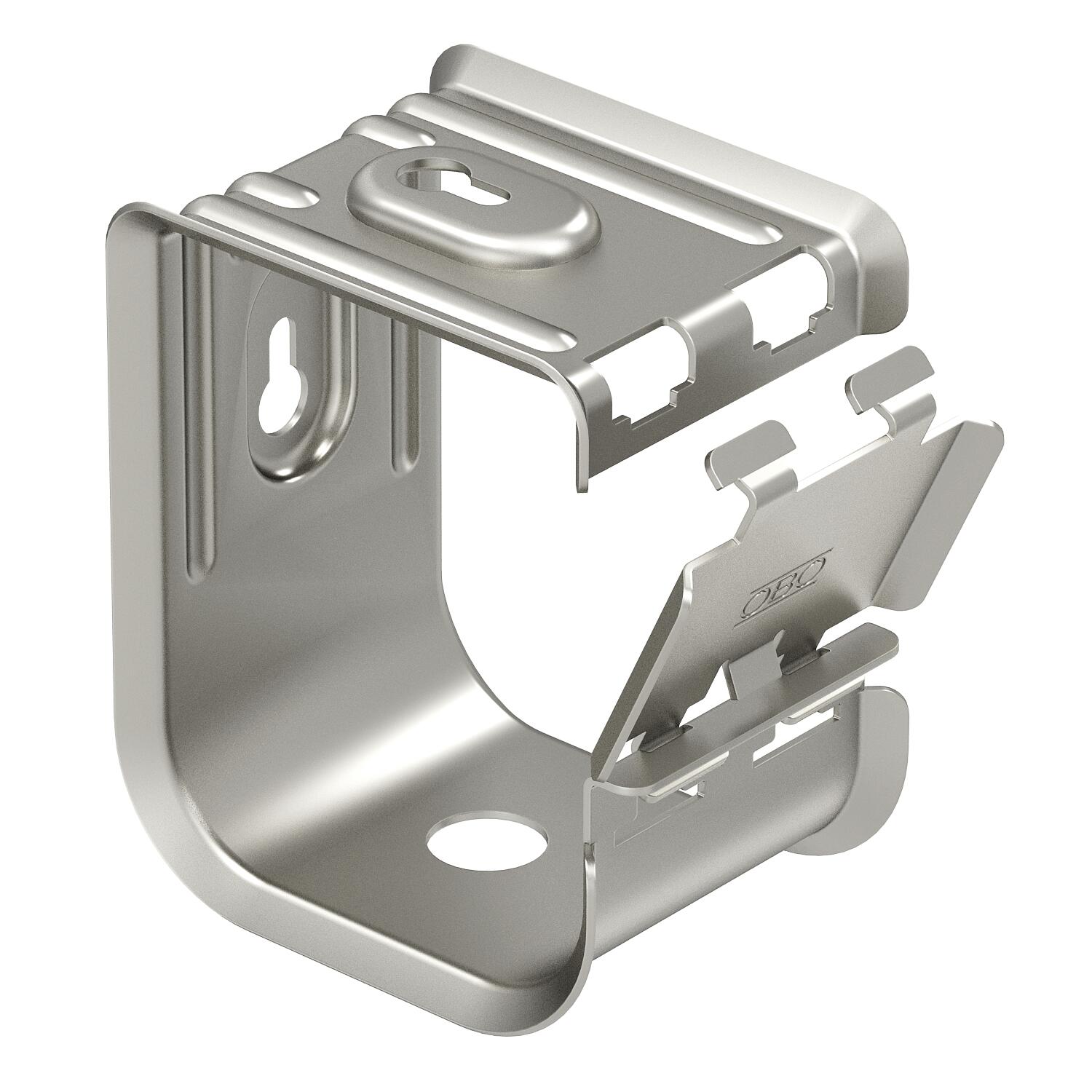

Grip collection clamp, metal 70 A2

Item no. 2207112 | EAN 4012195809449

2207112 / 2031 M 70 A2
70
Product description

Product description

Metal cable tidy for high mechanical stability, even in case of fire. Suitable for safe mounting above fire protection ceilings. Also approved as a cable-specific variant for the maintenance of electrical functionality to DIN 4102 part 12. For wall and ceiling mounting. The lock can be opened without tools.

Detailed information on the approved routing variants can be found in the appropriate testing documentation.


  • Underwriters Laboratories Inc., USA
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • OBO Grip, wall routing type
  • OBO Grip, ceiling routing type
  • Function maintenance class E30
  • Function maintenance class E90
Technical data

Technical data

Dimension 70x NYM3x1,5
Flame-resistant version no
Halogen-free yes
Maintain electrical functions yes
Material Stainless steel
No. of conductors NYM 3 x 1.5 70
Surface Bright, treated
With anchor no
All types

All types

Types No. of conductors NYM 3 x 1.5 Item no. Quantity SSU
2031 M 70 A2 70 2207112
10 piece
