Grip 40

Item no. 2205416 | EAN 4012195651666

40
Product description

Product description

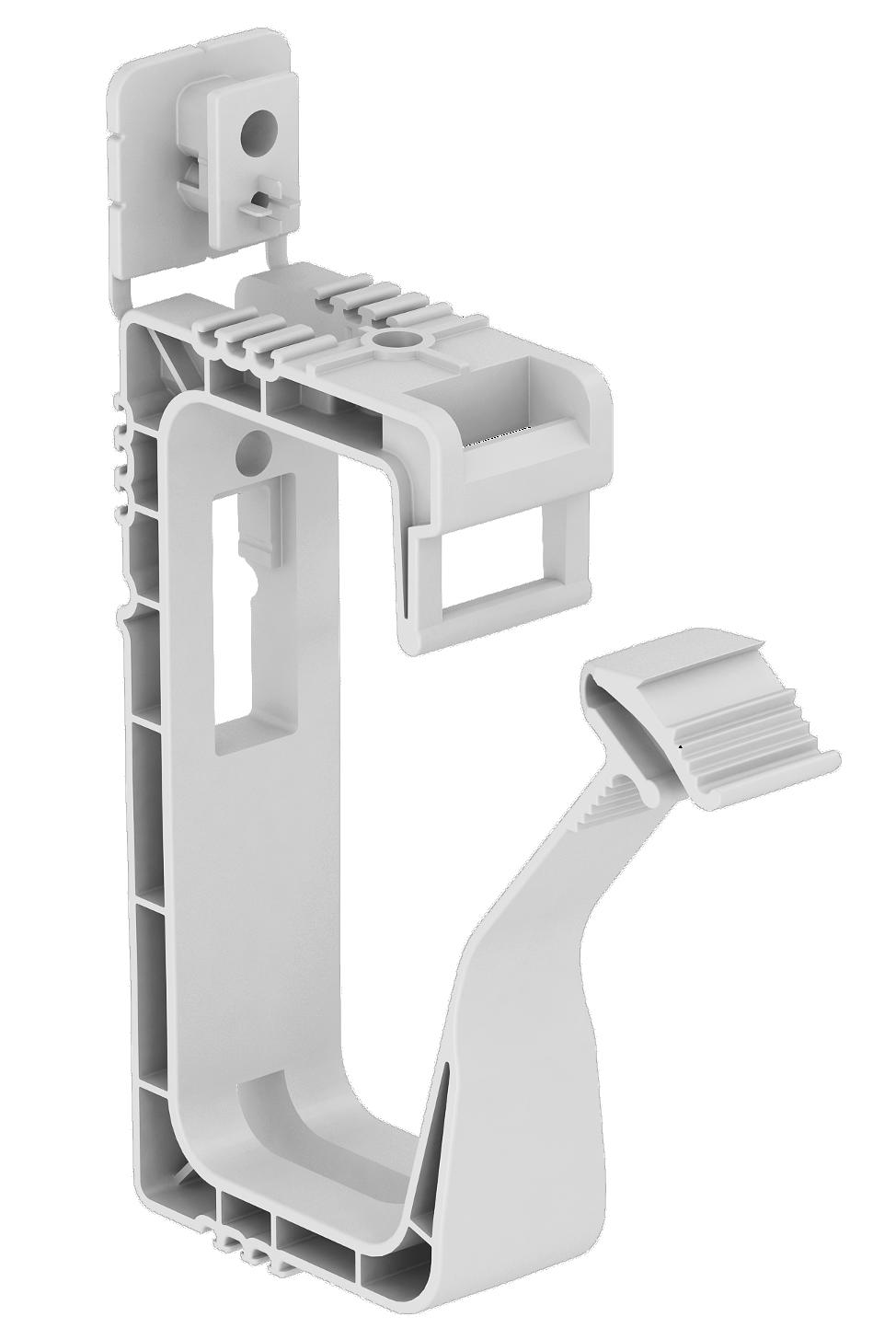

Cable tidy for general use with fastening holes of Ø 6 mm, suitable for wall and ceiling mounting. The moulded fastening element can be fastened using knock-in anchors or a gas pressure nail gun. The recommended fastening spacing when assigned fully is 250–400 mm.
With multifunctional fastening element. Capacity: 2031/ 40 max. 40 cables NYM 3 x 1.5 mm²
  • Underwriters Laboratories Inc., USA
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Halogen-free; without chlorine, fluorine and bromine
  • Nail device
  • OBO Grip, wall routing type
  • OBO Grip, ceiling routing type
Technical data

Technical data

Breaking load 0,32 kN
Colour Light grey; RAL 7035
Dimension 40x NYM3x1,5
Flame-resistant version no
Halogen-free yes
Maintain electrical functions no
Material Polypropylene
No. of conductors NYM 3 x 1.5 40
With anchor no
All types

All types

Types No. of conductors NYM 3 x 1.5 Item no. Quantity SSU
2031 40 40 2205416
25 piece
2031 40 SP 40 2205420
50 piece
