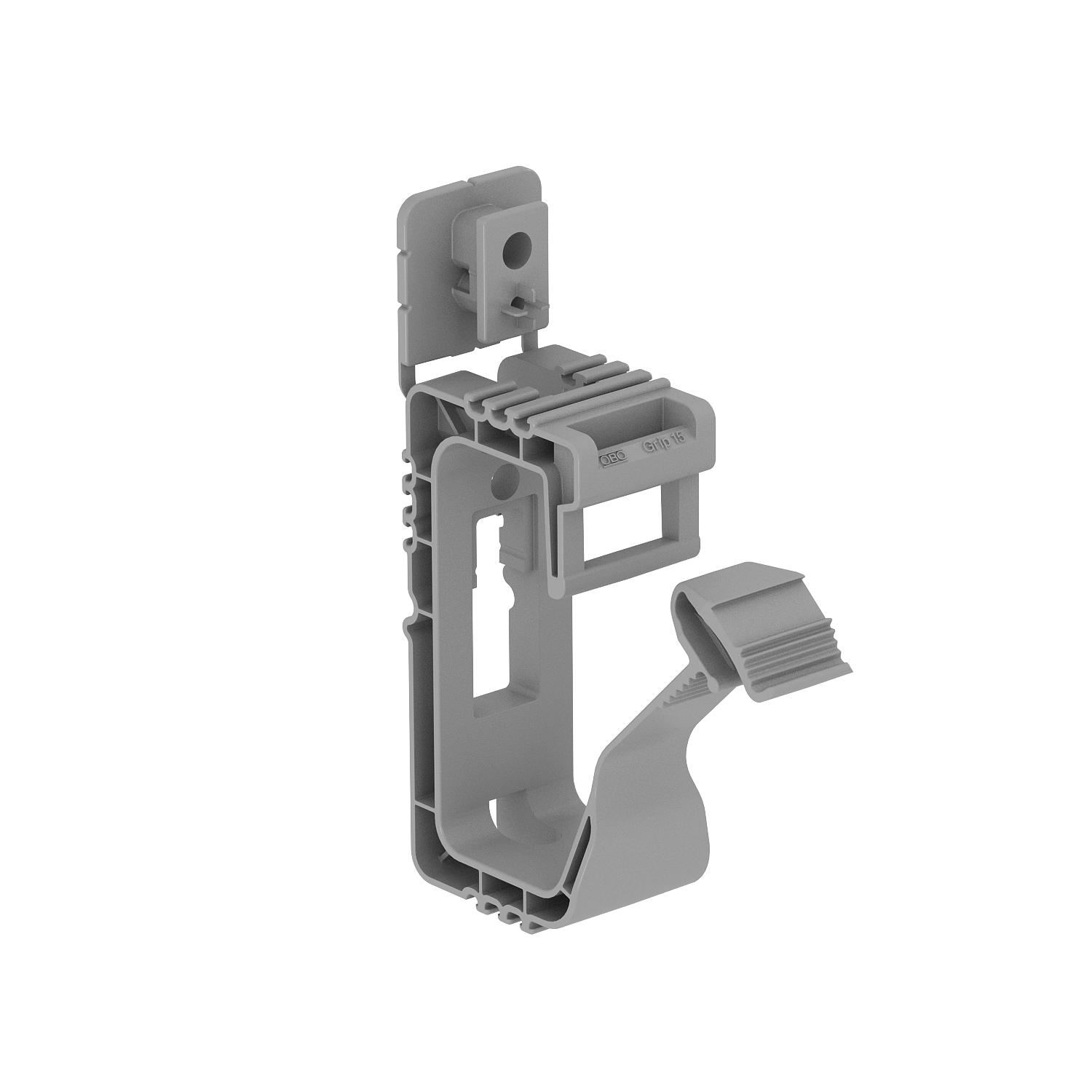

Grip 20 flame-resistant

Item no. 2205412 | EAN 4012195651659

2205412 / 2031 F 20
20
Product description

Product description

Cable tidy for general use, suitable for wall and ceiling mounting. The moulded fastening element can be fastened using knock-in anchors or a gas pressure nail gun.

Flame-resistant version, stone grey, to DIN VDE 0471/DIN IEC 695 Part 2-1, test temperature 960°C. The recommended fastening spacing when assigned fully is 250–400 mm.


With multifunctional fastening element.

Capacity: 2031/ 20 max. 20 cables NYM 3 x 1.5 mm²
  • Flame resistant 960 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Halogen-free; without chlorine, fluorine and bromine
  • Nail device
  • OBO Grip, wall routing type
  • OBO Grip, ceiling routing type
Technical data

Technical data

Breaking load 0,32 kN
Colour Stone grey; RAL 7030
Dimension 20x NYM3x1,5
Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 960 °C
Flame-resistant version yes
Halogen-free yes
Maintain electrical functions no
Material Polypropylene
No. of conductors NYM 3 x 1.5 20
With anchor no
All types

All types

Types No. of conductors NYM 3 x 1.5 Item no. Quantity SSU
2031 F 20 20 2205412
50 piece
Downloads

Download

Declaration of conformity 2031 F 20 / 2205412 , 0.10MB , pdf
Download
REACH Declaration of conformity 2031 F 20 / 2205412 , 0.12MB , pdf

2031 F 20 / 2205412
Download
