Grip 20
Item no. 2205404 | EAN 4012195651635
- Product description
-

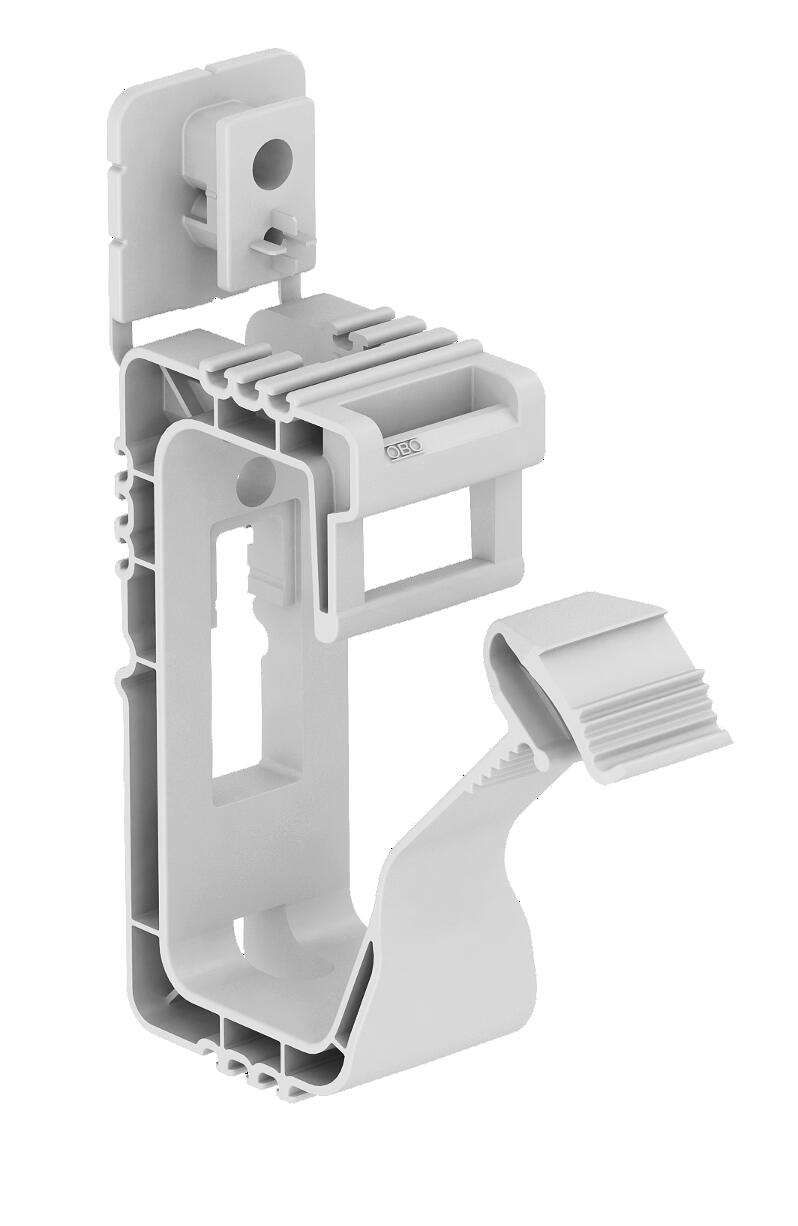

Product descriptionCable tidy for general use with fastening holes of Ø 6 mm, suitable for wall and ceiling mounting. The moulded fastening element can be fastened using knock-in anchors or a gas pressure nail gun. The recommended fastening spacing when assigned fully is 250–400 mm.
With multifunctional fastening element.
Capacity: 2031/ 20 max. 20 cables NYM 3 x 1.5 mm²
-
- Technical data
-
Technical data
Breaking load 0,32 kN Colour Light grey; RAL 7035 Dimension 20x NYM3x1,5 Flame-resistant version no Halogen-free yes Maintain electrical functions no Material Polypropylene No. of conductors NYM 3 x 1.5 20 With anchor no - All types
- Downloads
-
Data sheet 2031 20 / 2205404 , 0.26MB , pdfEU declaration of conformity 2031 20 / 2205404 , 0.10MB , pdfUK Declaration of Conformity 2031 20 / 2205404 , 0.14MB , pdfREACH Declaration of conformity 2031 20 / 2205404 , 0.12MB , pdfRoHS Declaration of conformity 2031 20 / 2205404 , 0.12MB , pdfLabel approval UL certificate, Grip grouped support , 0.33MB , pdfMounting instructions Grip M grouped support 2031 , 1.03MB , pdf
