Grip 10

Item no. 2205384 | EAN 4012196773589

10
Product description

Product description

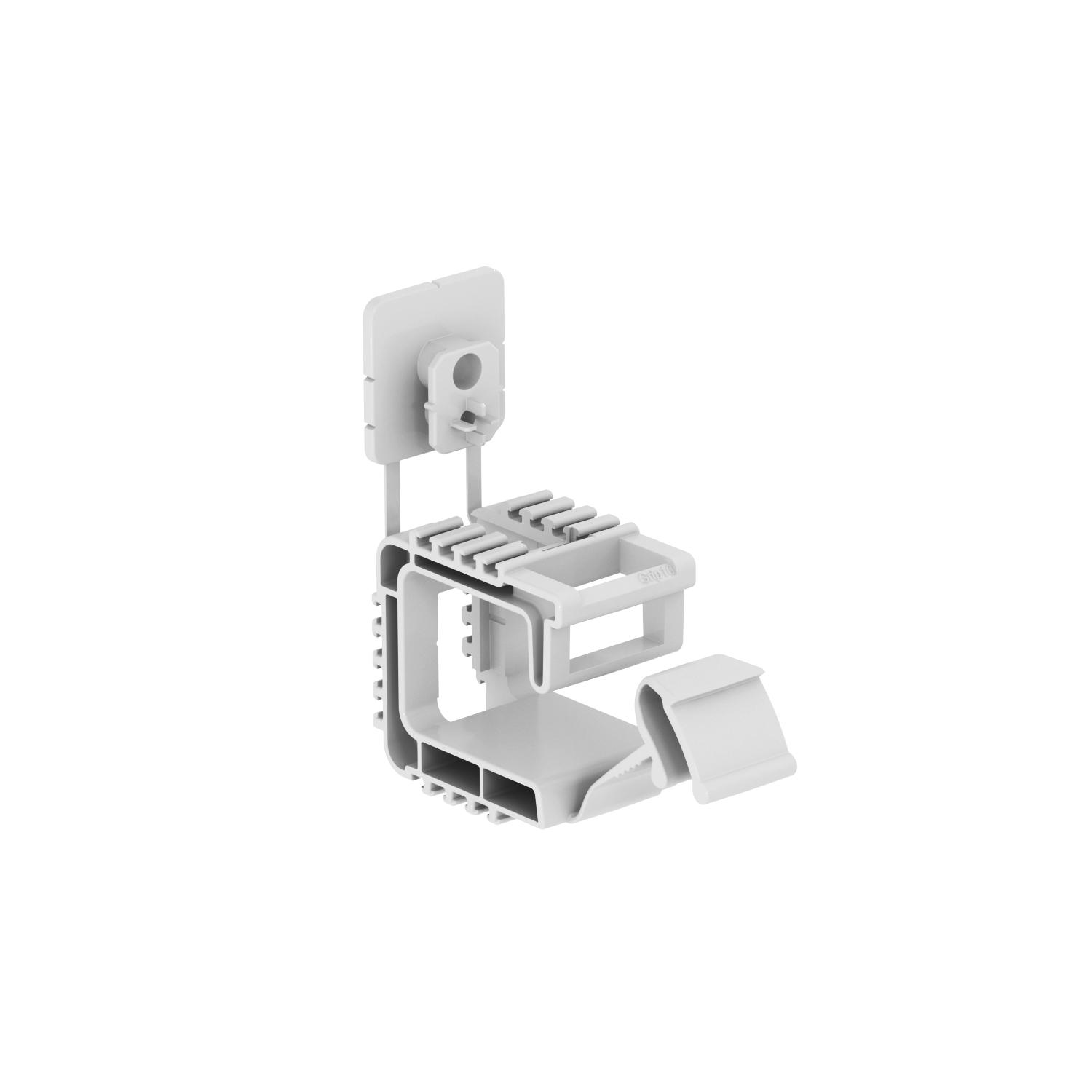

Cable tidy for general use with fastening holes of Ø 6 mm, suitable for wall and ceiling mounting. The moulded fastening element can be fastened using knock-in anchors or a gas pressure nail gun. The recommended fastening spacing when assigned fully is 50 to 60 cm.
Capacity:
2031/ 10 max. 10 cables NYM 3 x 1.5 mm²
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • OBO Grip, wall routing type
  • OBO Grip, ceiling routing type
  • Nail device
Technical data

Technical data

Breaking load 0,32 kN
Colour Light grey; RAL 7035
Dimension 10x NYM3x1,5
Flame-resistant version no
Halogen-free yes
Maintain electrical functions no
Material Polypropylene
No. of conductors NYM 3 x 1.5 10
With anchor no
All types

All types

Types No. of conductors NYM 3 x 1.5 Item no. Quantity SSU
2031 10 10 2205380
50 piece
2031 10 SP 10 2205384
100 piece
