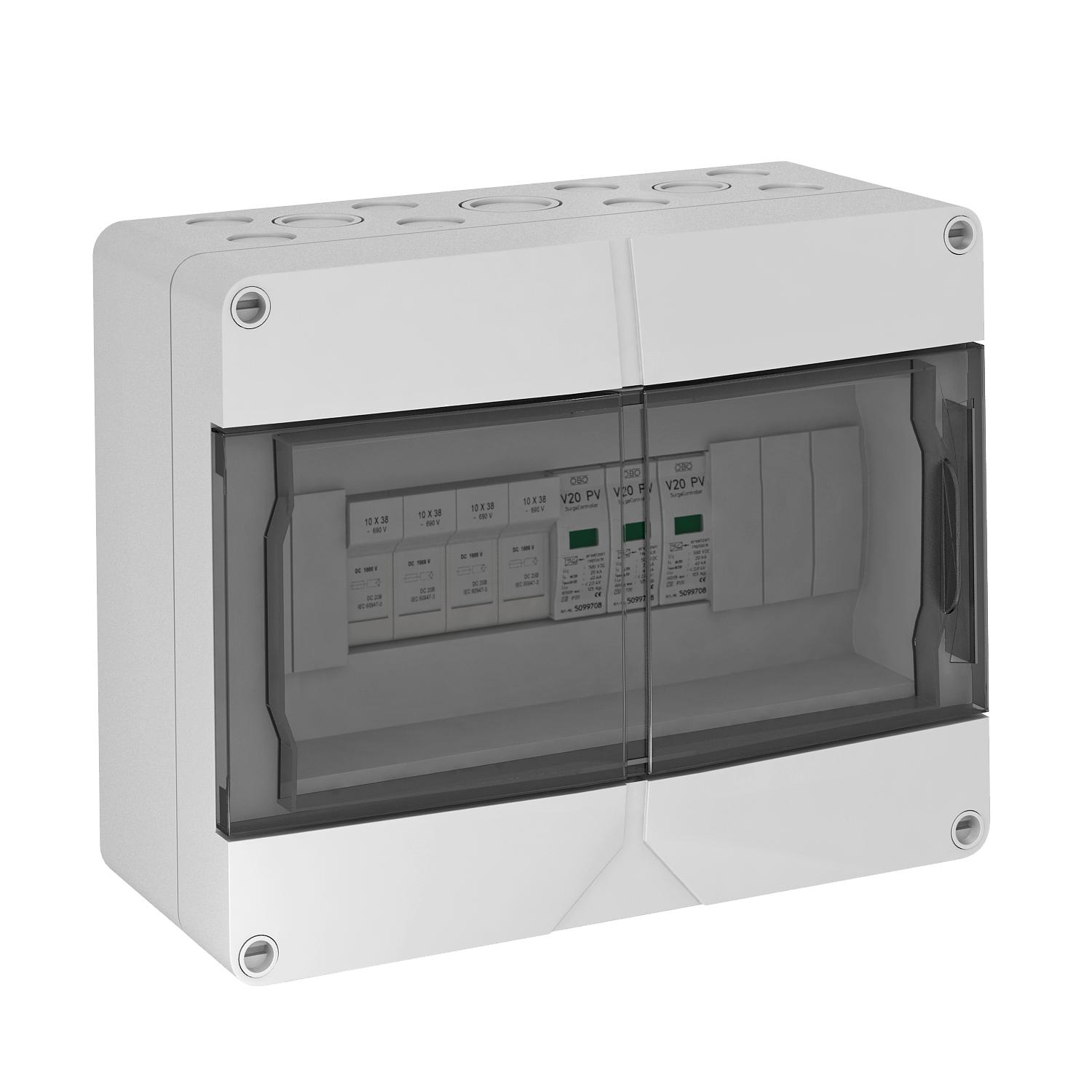

Generator connection box, type 2, with four 10 A fuses for 4 x 1 string
Item no. 5088651 | EAN 4012195780717
- Product description
-
Product descriptionSystem solution for photovoltaic fuses for photovoltaic inverters with 1 MPP tracker

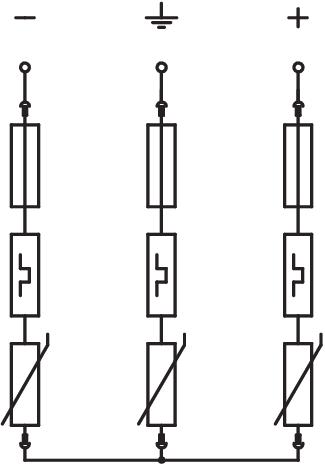

• Error-resistant Y circuit to VDE 0100-712 (50539-12)
• Low DC protection level: < 4.0 kV (Voc max = 1,000 V DC with V20-C/0-500PV)
• (+) poles protected via 4 photovoltaic fuses 10x38 mm 10 A, 1,000 V DC protected
• 4 (-) poles via terminals up to 6 mm² switched in parallel in the housing, up to 30 A DC per terminal
• Pre-mounted in polycarbonate housing (IP65), UV- and weather-resistant for use in protected outside area, including cable gland kit
For DC protection of the inverter in photovoltaic systems.
If there is a danger of condensation forming through wind, ice, temperature or sunlight, further measures may be necessary!
- Technical data
-
Connectivity options

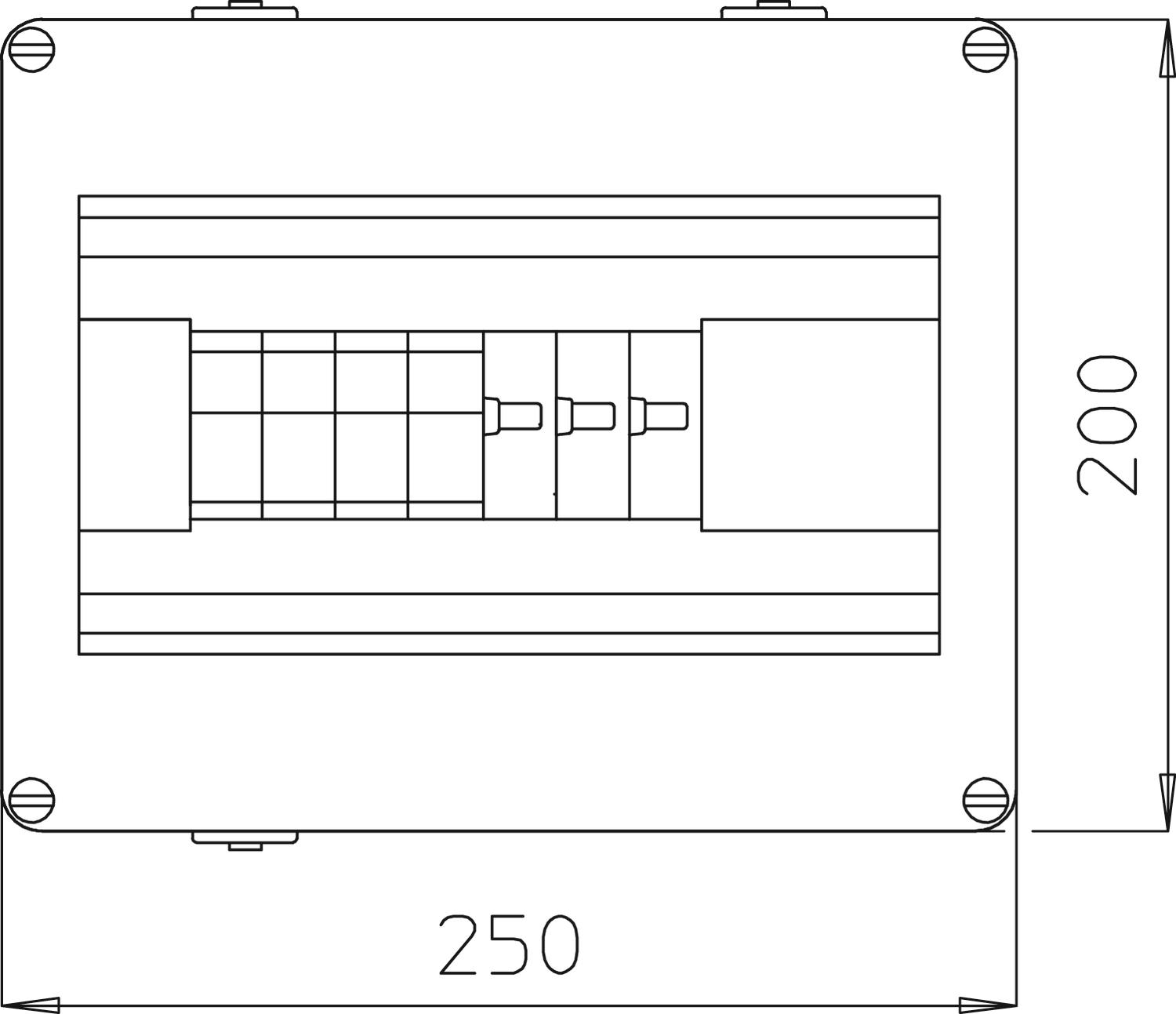

Anschlussart Generatoranschlusskasten Tension spring terminal Cable type for surge protection devices Power cable DC (PV) Colour Light grey; RAL 7035 Conductor cross-section, rigid (single-wire/multiwire), max. 6 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 0,5 mm² DC network form yes Depth 122 mm Dimension 1000V DC Entries per MPPT 4 Entry fuse 10 A Equipped with load-break switch no Exits per MPPT 4 Height 200 mm Housing material surge protection components PC Installation type Pre-mounted in the housing IT network form no Lightning protection zone LPZ 1→2 Max. Input current per string 30 A Max. Input voltage DC 1000 V Max. Output current 30 A Maximum continuous voltage DC 1000 V Maximum discharge current (8/20 μs) 40 kA Monitoring function no Network form DC Nominal discharge current (8/20 µs) 20 kA Number of cable entries 16 Number of inputs 4 Number of MPPTs 1 Number of string inputs 4 Operating temperature, max. 80 °C Operating temperature, min. -40 °C Other network form no Permitted temperature range, max. 40 °C Permitted temperature range, min. -25 °C Protection rating IP65 Protection rating IK code IK07. Remote signalling no Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 2 SPD to IEC 61643-1 Class II Test class, type 1 no Test class, type 2 yes Test class, type 3 no TN network form no TN-C network form no TN-C-S network form no TN-S network form no TT network form no Type of entry Gland Version for Type 2 in housing with 4 PV fuses (10 A) Width 250 mm - All types
