Gas concrete anchor 8

Item no. 2347261 | EAN 4012195828259

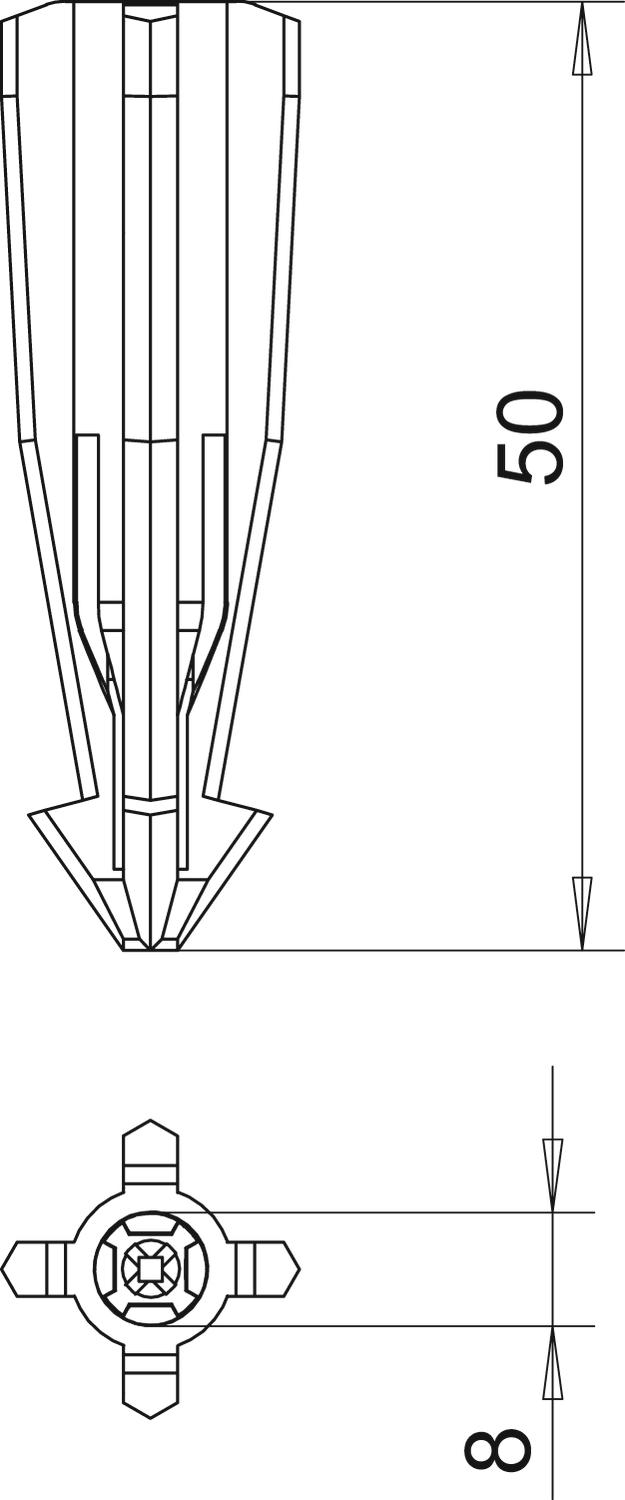

2347261 / 910 GD 8x50
50 mm
8 mm
58 mm
8 mm
Product description

Product description

The anchor can be knocked directly into the porous concrete (gas concrete resistance class G2). With a resistance class of G4 or greater, a 5 or 6 mm hole should be pre-drilled.

Screw length: Component thickness + 40 mm (6 mm) / 55 mm (8 mm).
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey
Diameter 8 mm
Dimension 8x50mm
Dimension D 8 mm
Dimension L 50 mm
Drill hole depth 58 mm
Drill hole diameter, min. 8 mm
Halogen-free yes
Length 50 mm
Material Polyamide
Suitable for fastening with cable ties no
Suitable for hexagonal wood screw yes
Suitable for screw diameter, max. 6 mm
Suitable for screw diameter, min. 4,5 mm
With bolts no
All types

All types

Types Length Diameter Drill hole depth Drill hole diameter, min. Item no. Quantity SSU
910 GD 8x50 50 mm 8 mm 58 mm 8 mm 2347261
50 piece
