G mesh cable tray Magic® 75 A4

Item no. 6005568 | EAN 4012195771609

Item no. / Types	6005568 / G-GRM 75 50 A4

Length	3000 mm

Width	50 mm

Height	75 mm

Wire diameter	3.9 mm

Usable cross-section	22 cm²

Maintain electrical functions	no

Product description

Product description

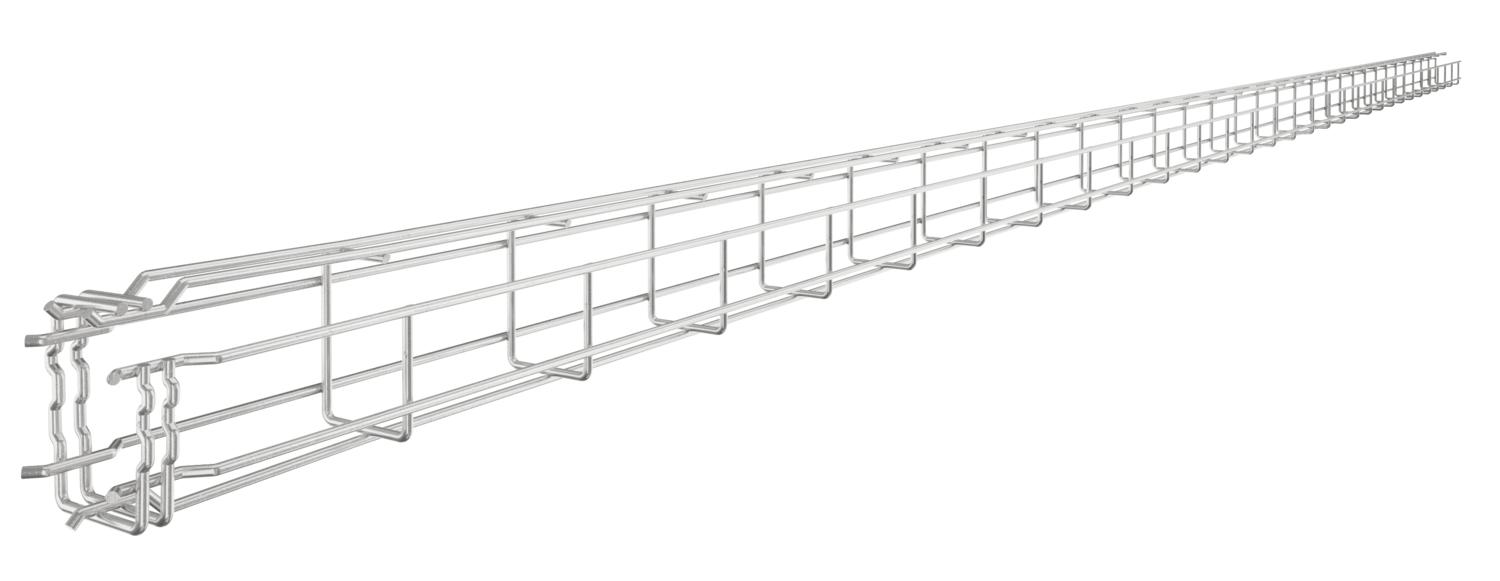

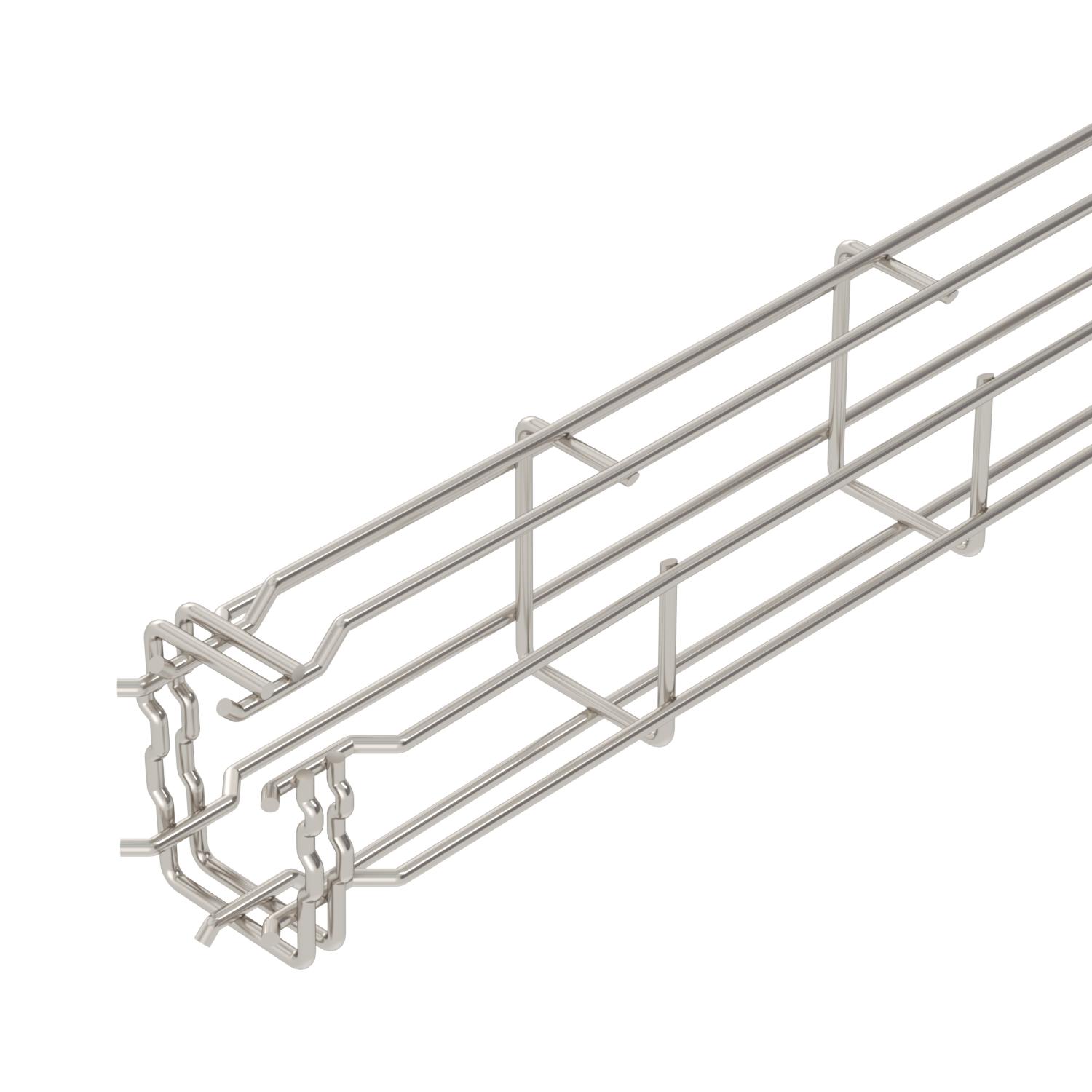

G-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.

Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.

Magnetic shield insulation 15 dB.

Technical data

Technical data

Connector version	Integrated connector
Dimension	75x50x3000

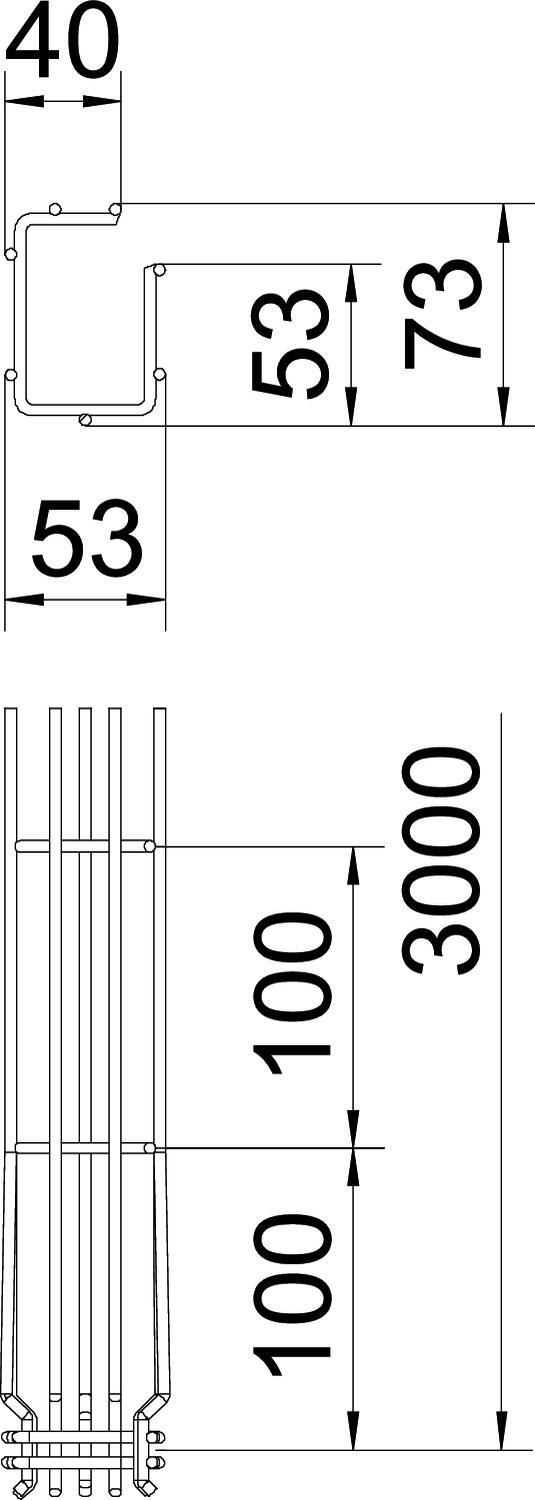

Dimension A	53 mm
Dimension B	53 mm
Dimension C	38 mm
Dimension H	73 mm
Height	75 mm
Height	2,95 in
Integrated partition	Without
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no

Material	Stainless steel
Profile shape	G-shaped
Rustproof steel, pickled	yes
Screwless connector	yes
Surface	Bright, treated
Type of connector, cable support system	Click fastening
Usable cross-section	22 cm²
Usable cross-section	2200 mm²
Wide-span version	no
Width	1,97 in
Width	50 mm
Wire diameter	3,9 mm
