G mesh cable tray Magic® 50 A4

Item no. 6005565 | EAN 4012195771593

Item no. / Types	6005565 / G-GRM 50 50 A4

Length	3000 mm

Width	50 mm

Height	50 mm

Wire diameter	3.9 mm

Usable cross-section	17 cm²

Maintain electrical functions	no

Product description

Product description

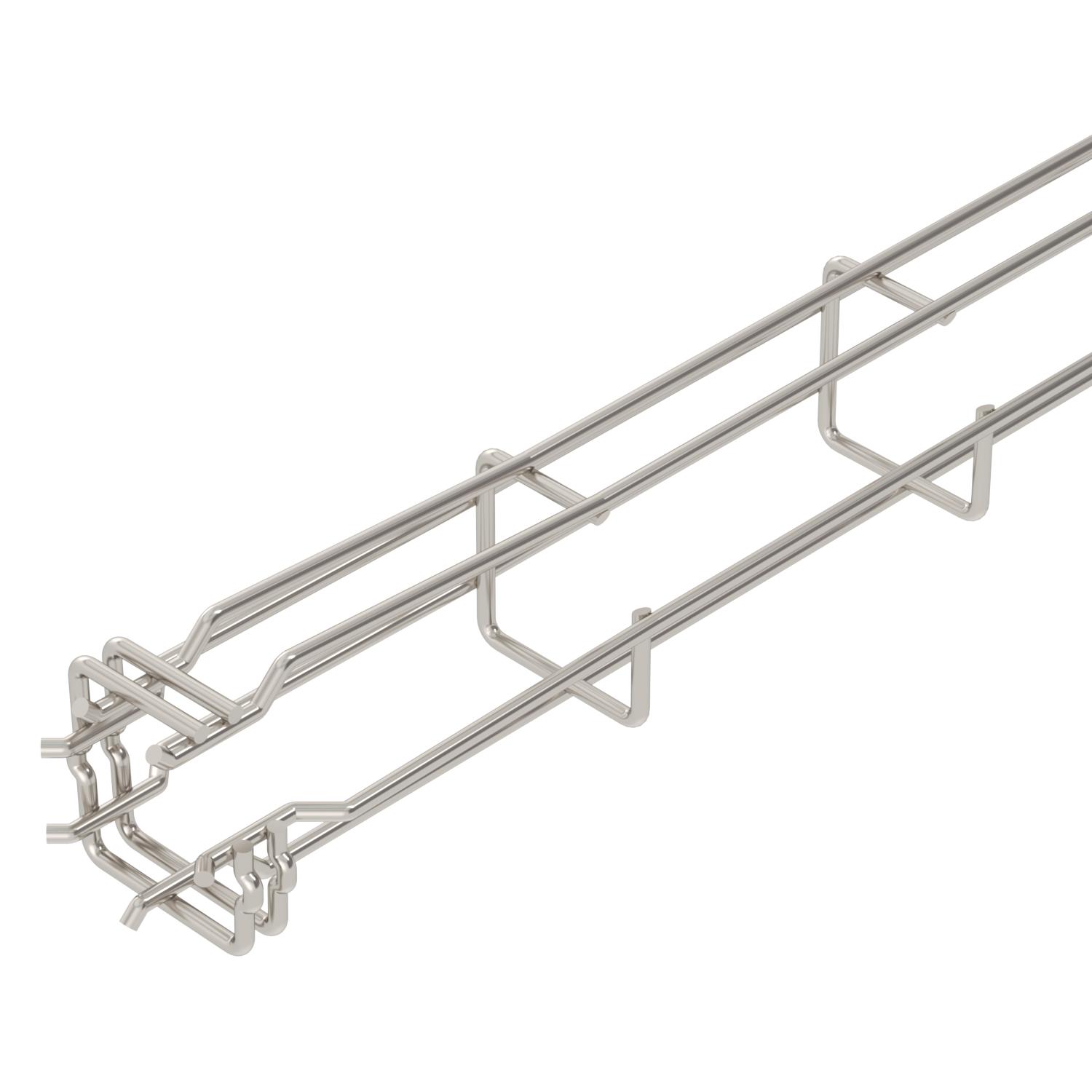

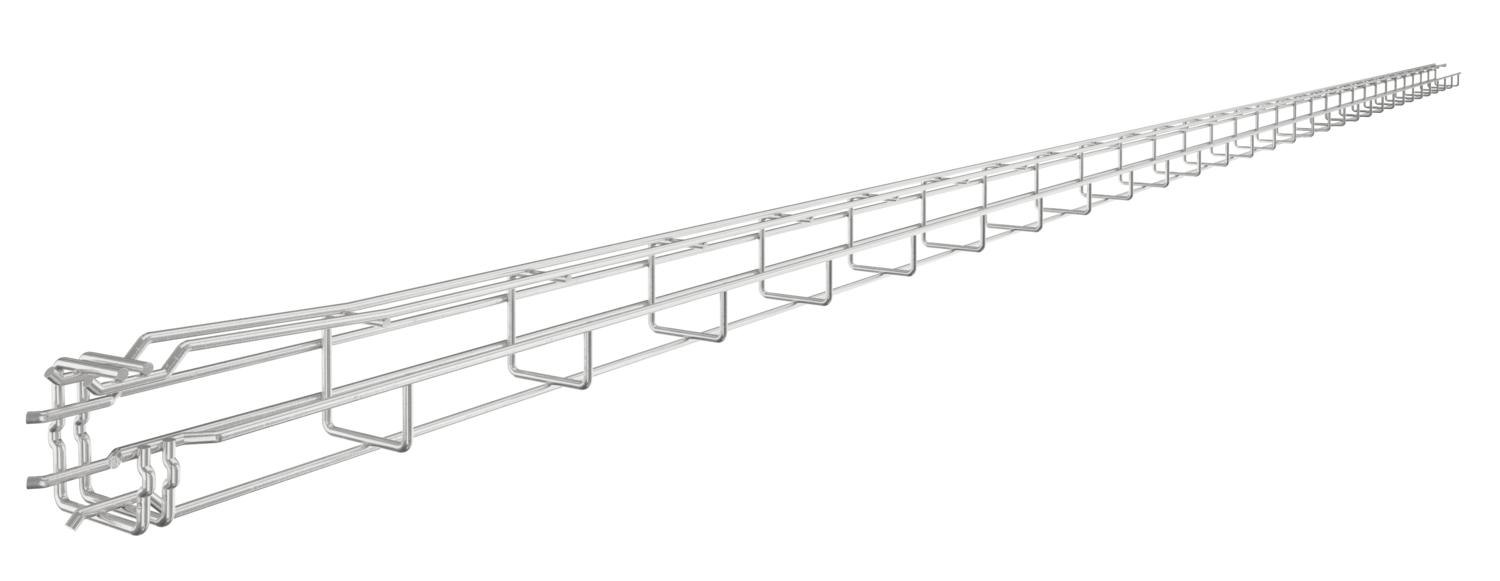

G-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.

Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.

Magnetic shield insulation 15 dB.

Technical data

Technical data

Connector version	Integrated connector

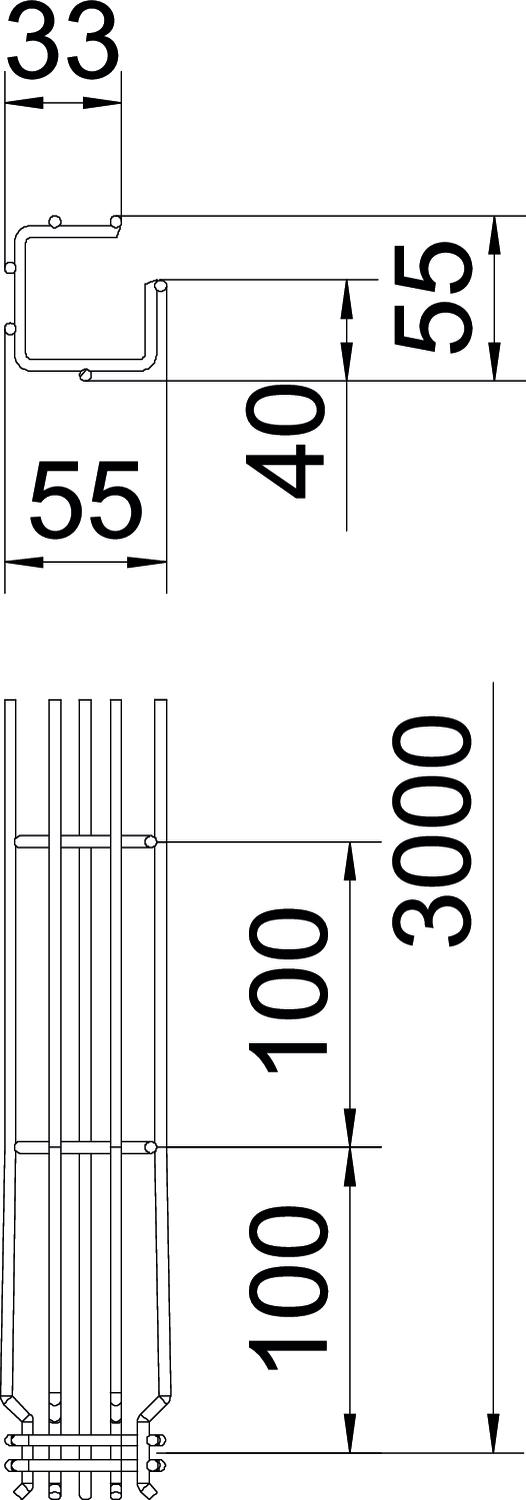

Dimension	50x50x3000
Dimension A	38 mm
Dimension B	55 mm
Dimension C	33 mm
Dimension H	55 mm
Height	1,97 in
Height	50 mm
Integrated partition	Without
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no

Material	Stainless steel
Profile shape	G-shaped
Rustproof steel, pickled	yes
Screwless connector	yes
Surface	Bright, treated
Type of connector, cable support system	Click fastening
Usable cross-section	17 cm²
Usable cross-section	1700 mm²
Wide-span version	no
Width	50 mm
Width	1,97 in
Wire diameter	3,9 mm
