G mesh cable tray Magic® 150 G
Item no. 6005544 | EAN 4012195686460
- Product description
-
Product description

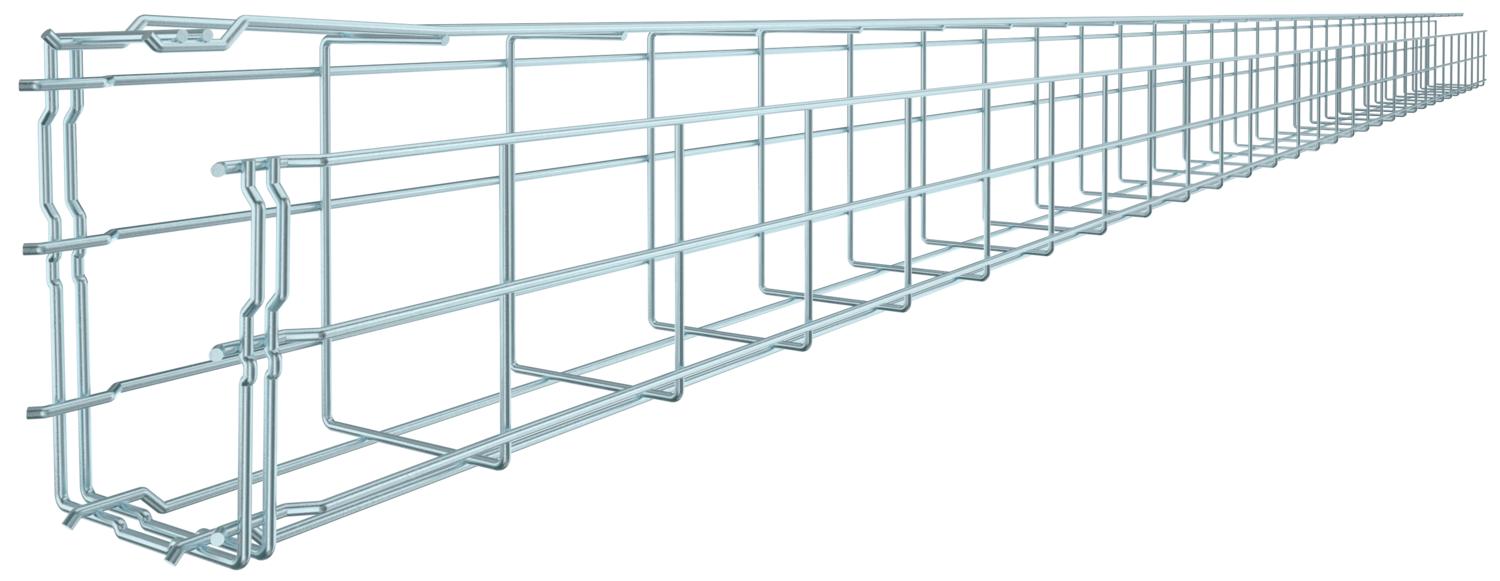

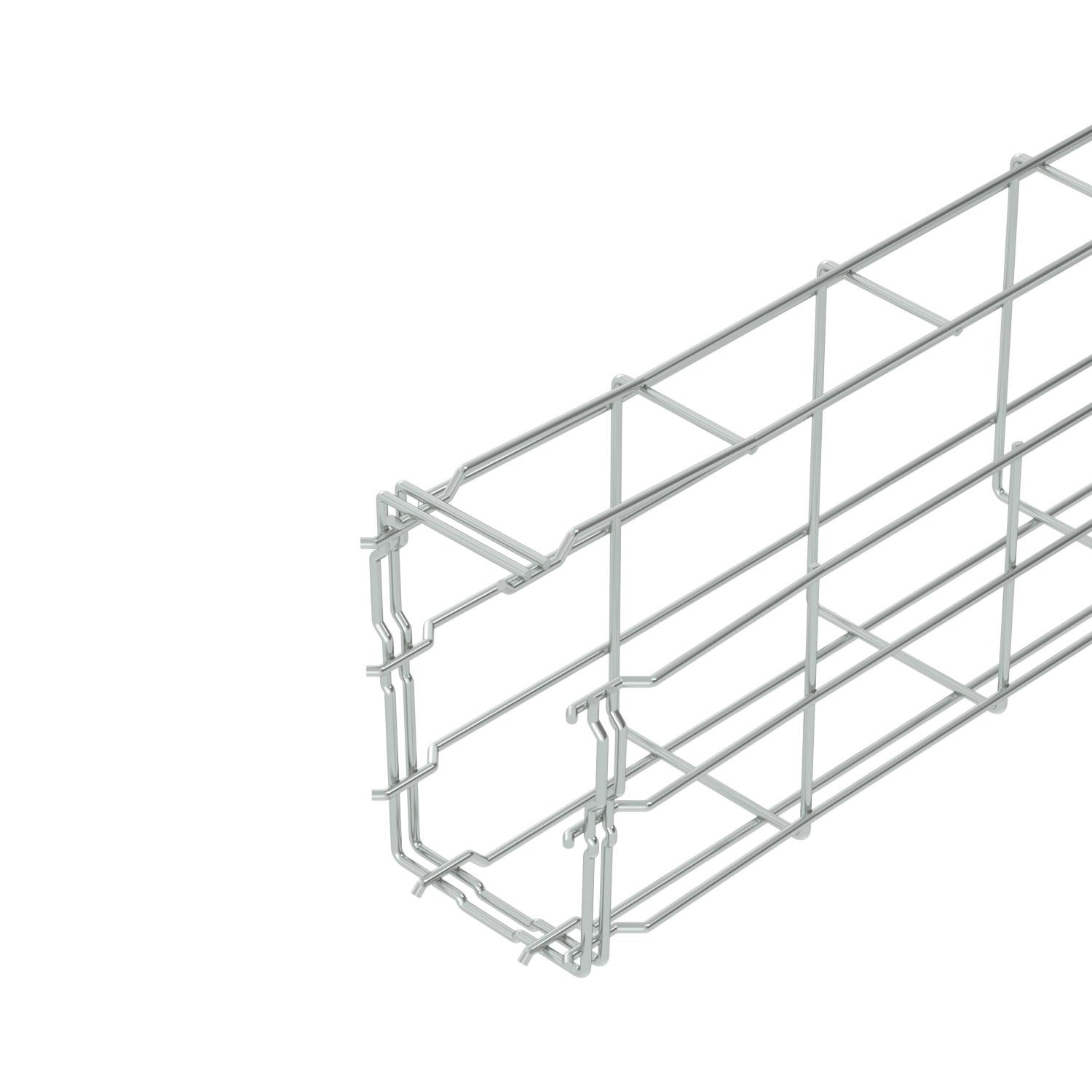

G-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.
Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.
Magnetic shield insulation 15 dB.
-
- Technical data
-
Technical data

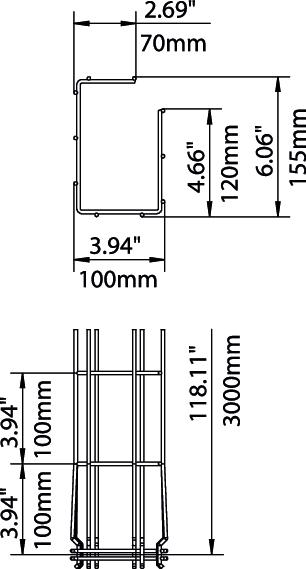

Connector version Integrated connector Dimension 150x100x3000 Dimension A 120 mm Dimension B 100 mm Dimension C 68 mm Dimension H 155 mm Height 150 mm Height 5,91 in Integrated partition Without Length 3000 mm Load test type according to IEC 61537 Type II Maintain electrical functions yes Material Steel Profile shape G-shaped Rustproof steel, pickled no Screwless connector yes Support spacing 1.0 m 0,6 kN/m Support spacing 1.5 m 0,5 kN/m Support spacing 2.0 m 0,35 kN/m Support spacing 2.5 m 0,3 kN/m Surface Electrogalvanized Type of connector, cable support system Click fastening Usable cross-section 10700 mm² Usable cross-section 107 cm² Wide-span version no Width 3,94 in Width 100 mm Wire diameter 3,9 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Joint connector FT
GSV 34 FT 6016634 20 piece
Wall clamp and central hanger FT
WB GR FT 6017160 20 piece - Downloads
-
Data sheet G-GRM 150 100 G / 6005544 , 0.23MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity G-GRM 150 100 G / 6005544 , 0.13MB , pdfREACH Declaration of conformity G-GRM 150 100 G / 6005544 , 0.12MB , pdfRoHS Declaration of conformity G-GRM 150 100 G / 6005544 , 0.12MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfSelection aid GR-Magic® , 2.00MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
