Fuse holder for FireBox T series

Item no. 7205570 | EAN 4012195993162

7205570 / TE-FH 520
Screw connection
Product description

Product description

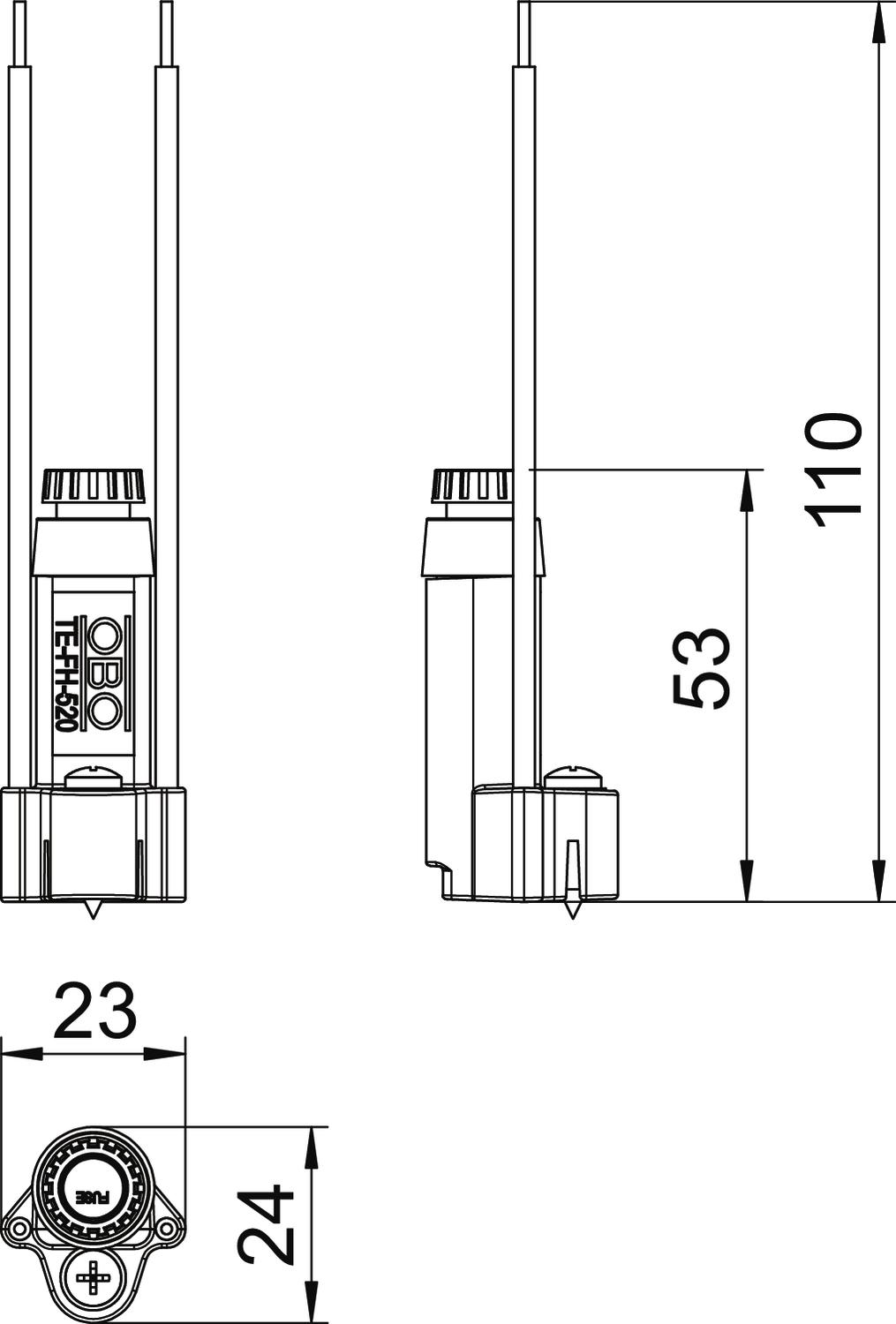

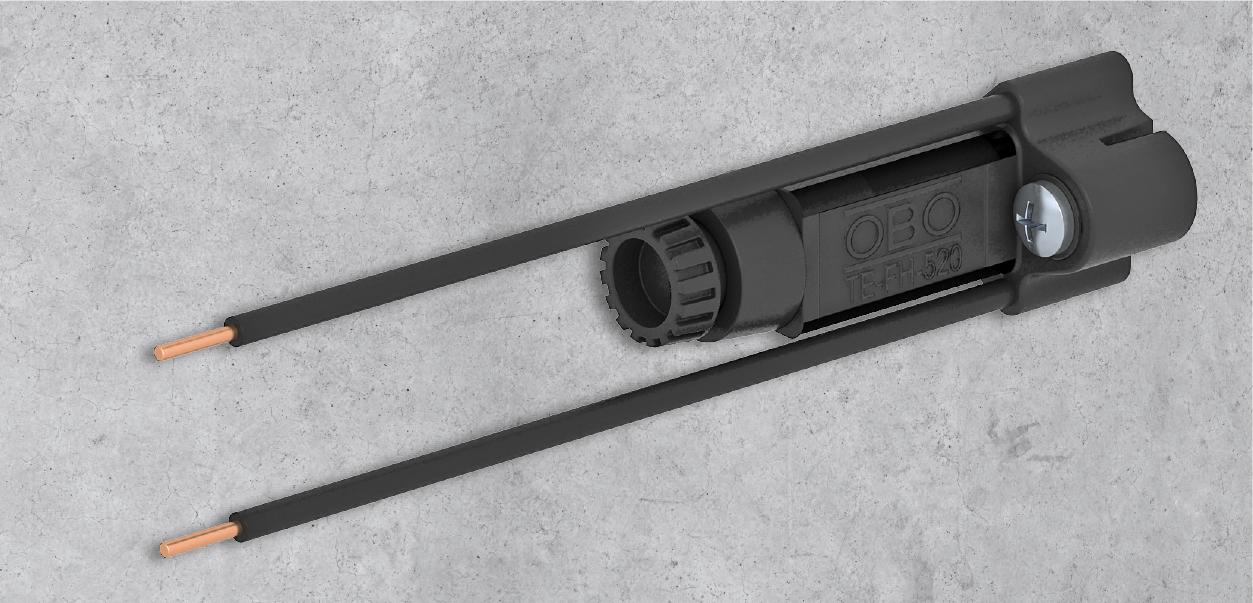

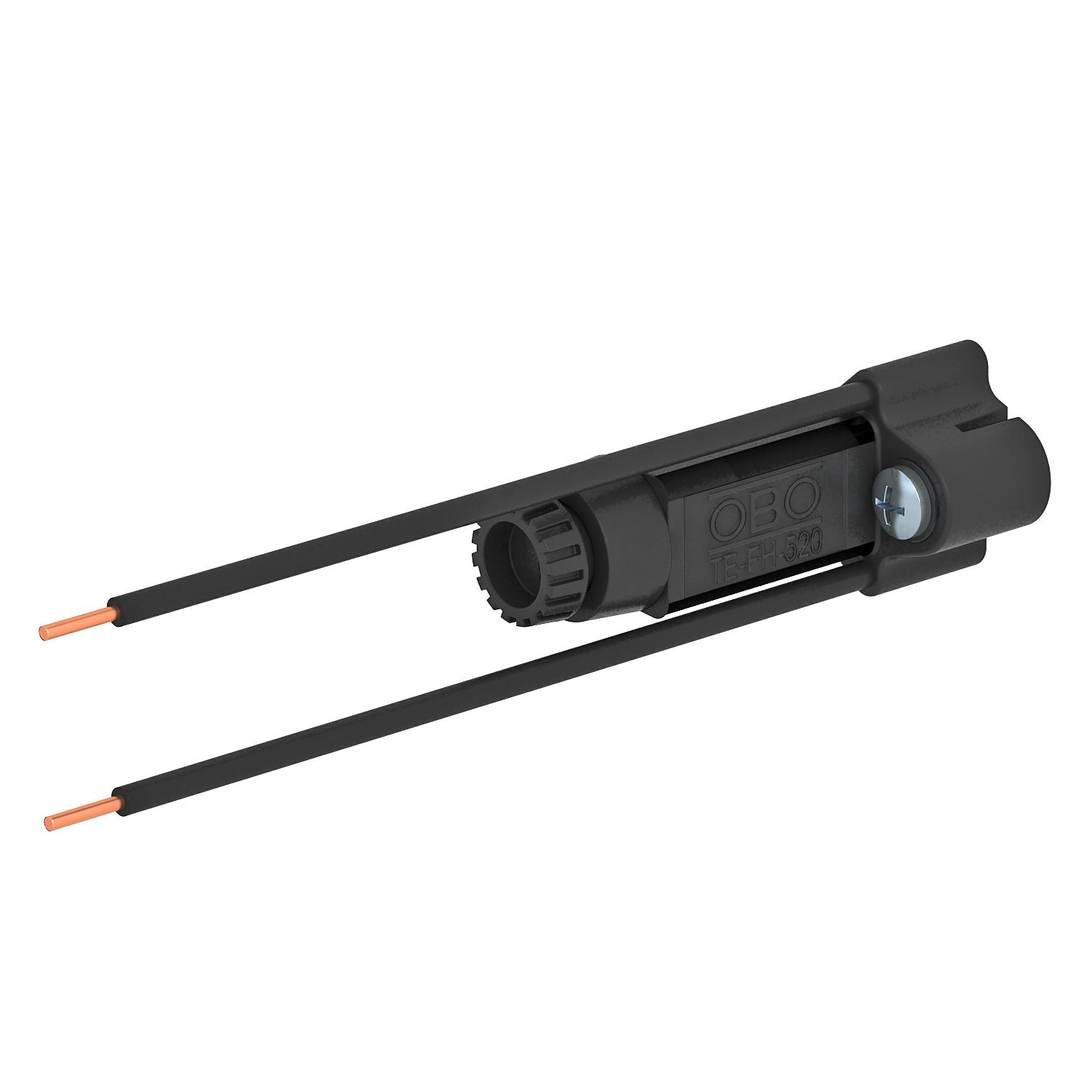

Fuse holder with bayonet lock for fine-wire fuse for dimensions Ø 5 x 20 mm. Connection wires that maintain electrical functionality with nominal cross-section 2.5 mm², ready-stripped. For mounting on one of the exposed domes in the junction box of the FireBox T series using the supplied screw.
Technical data

Technical data

Connection type Screw connection
Dimensions of the fine-wire fuse 5 x 20 mm
Maintain electrical functions yes
All types

All types

Types Connection type Item no. Quantity SSU
TE-FH 520 Screw connection 7205570
1 piece
Downloads

Download

Declaration of conformity TE-FH 520 / 7205570 , 0.11MB , pdf
Download
REACH Declaration of conformity TE-FH 520 / 7205570 , 0.12MB , pdf

No invitation to tender text is available for this product.
