Frame eyelet 2 | M8

morepic-1

morepic-2

Frame eyelet

Item no. 3472086 | EAN 4012195309550

Item no. / Types	3472086 / 869 M8X40 G

Breaking load	2 kN

Thread	M8

Product description

Product description

Frame eyelet M8 x 40mm

Technical data

Technical data

Breaking load	2 kN
Dimension	M8x40mm
hook diameter	20 mm
Material	Steel
Plastic-covered	no

Shank length	40
Surface	Electrogalvanized
Thread	M8
Thread length	36 mm

Dimensions

Length	70 mm

All types

All types

Types	Breaking load	Thread	Item no.	Quantity	SSU
869 M8X40 G	2 kN	M8	3472086	piece	25 piece

Downloads

Data sheet 869 M8X40 G / 3472086 , 0.23MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

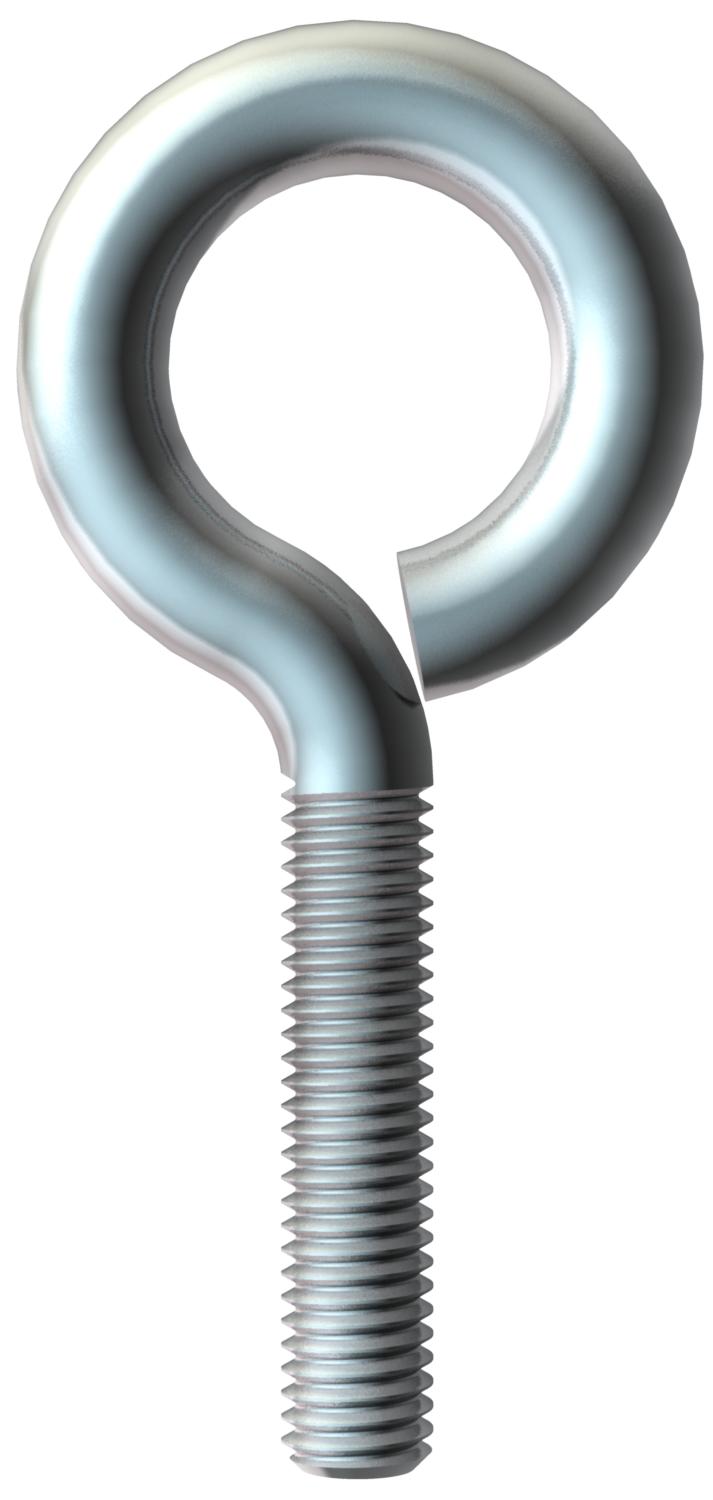

Product graphic 869 M8X40 G / 3472086, 52.72 kB, jpg

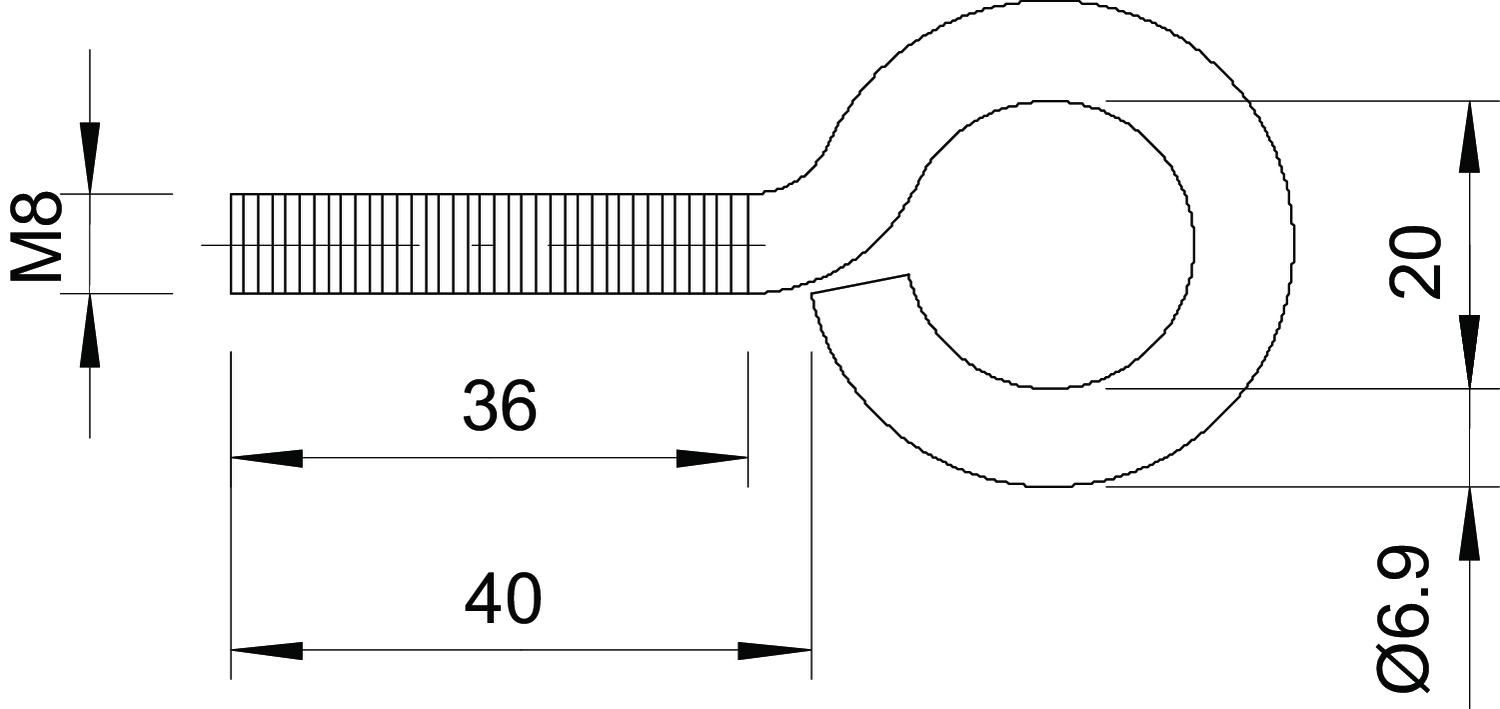

Scale drawing 869 M8X40 G / 3472086, 52.21 kB, jpg

869 M8X40 G / 3472086
