- Product description
-
Product description

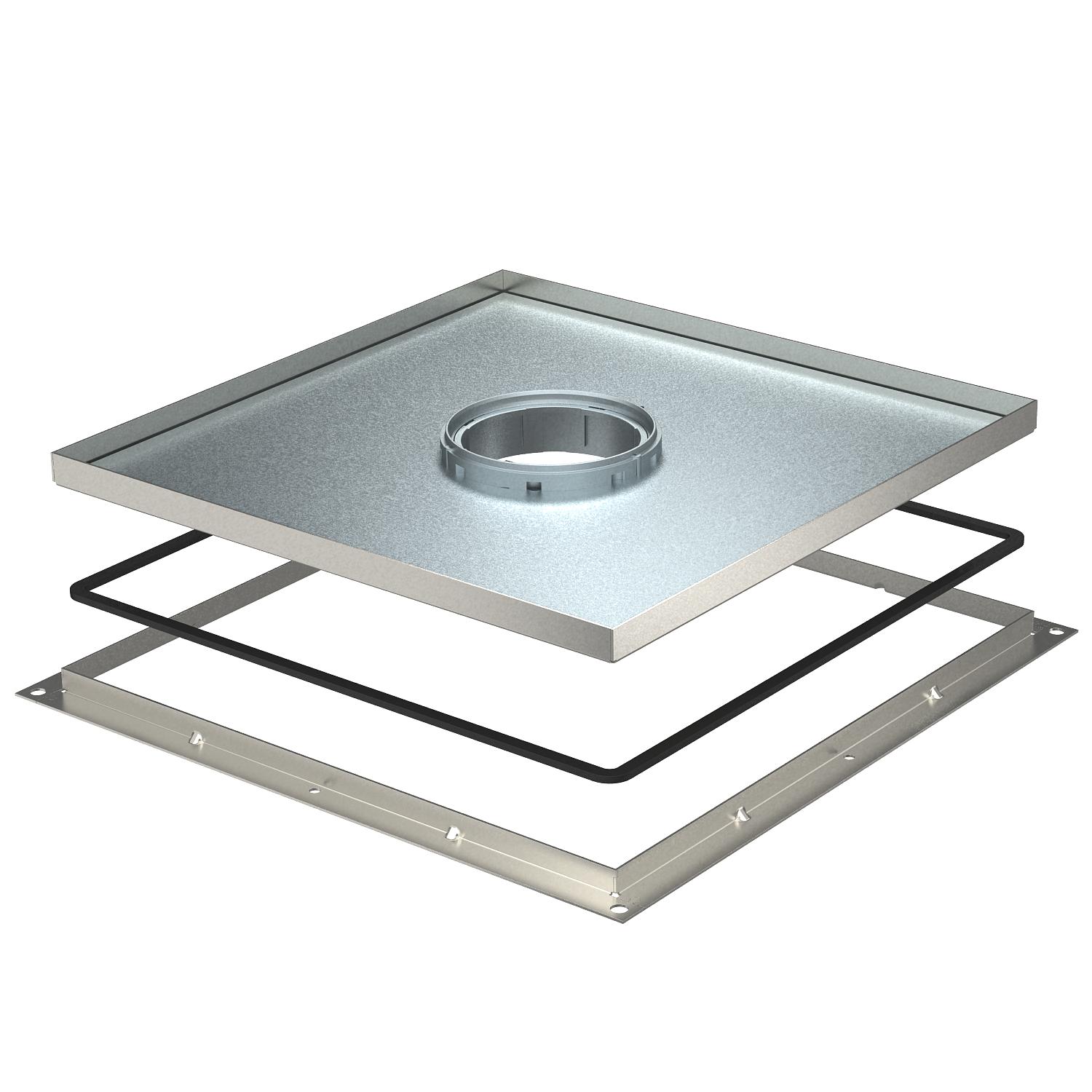

Frame cassette for tube body, for UZD350-3, for the installation of accessories in dry or wet-cleaned floors for indoor use.
- Technical data
-
Technical data
Cable outlet version Lowerable tube body Device support to accept mounting boxes no Dimension 383x383x20 Floor care Wet Floor covering thickness 18 mm Material Stainless steel Number of cable outlets 1 Dimensions

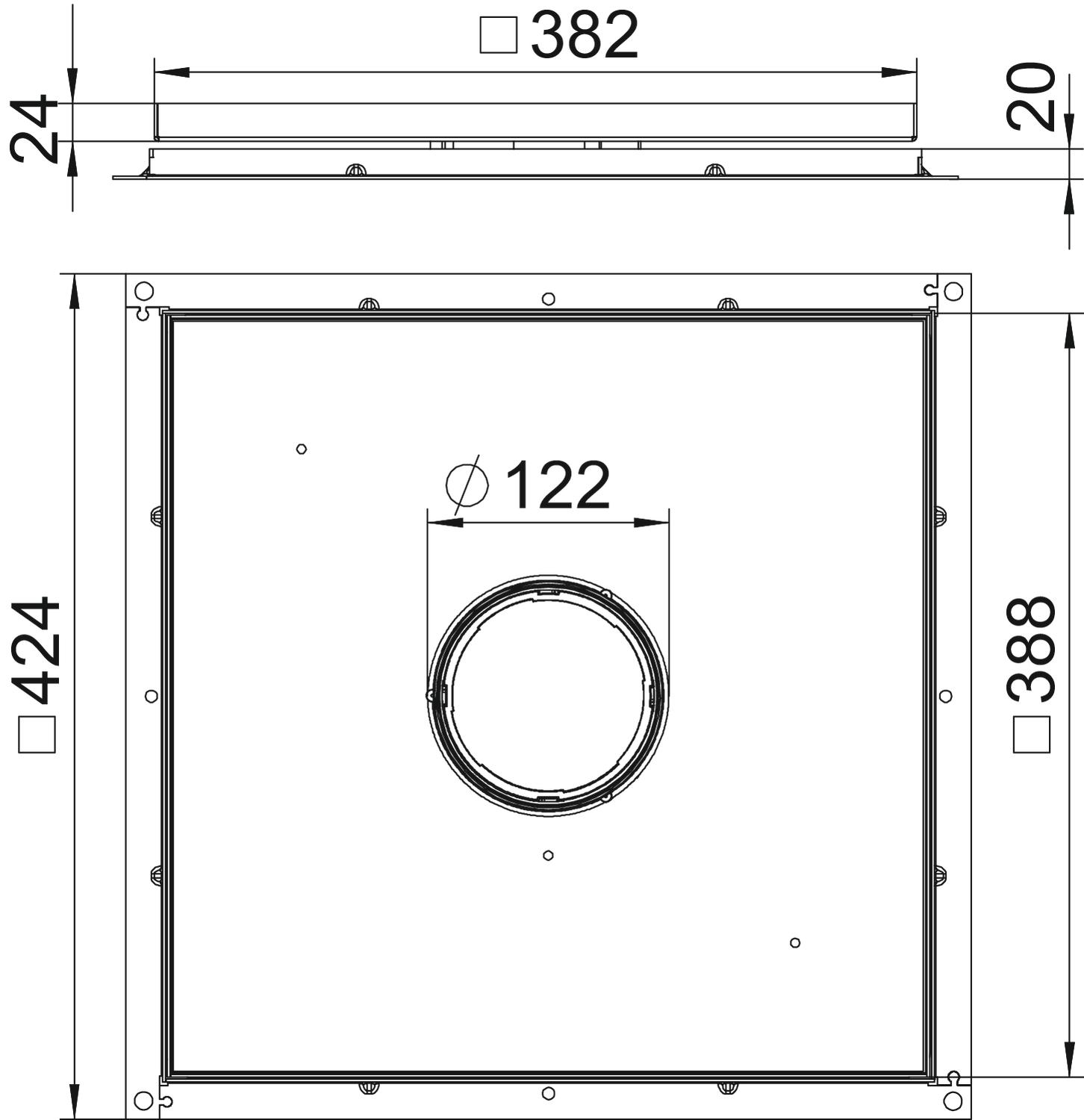

Dimension A 424 mm Dimension B 388 mm Dimension C 382 mm Dimension h 20 mm - All types
- Downloads
-
Data sheet RKF3 V3 20 / 7409416 , 0.20MB , pdfDeclaration of conformity RKF3 V3 20 / 7409416 , 0.06MB , pdfLabel approval VDE symbol approval, RK RKN , 0.18MB , pdfInstructions for use PF-G instructions for use , 2.00MB , pdf
