Folding clamp up to 7 mm plate thickness Cu Rd 8-10 | 7 |
morepic-1 morepic-2 video-1

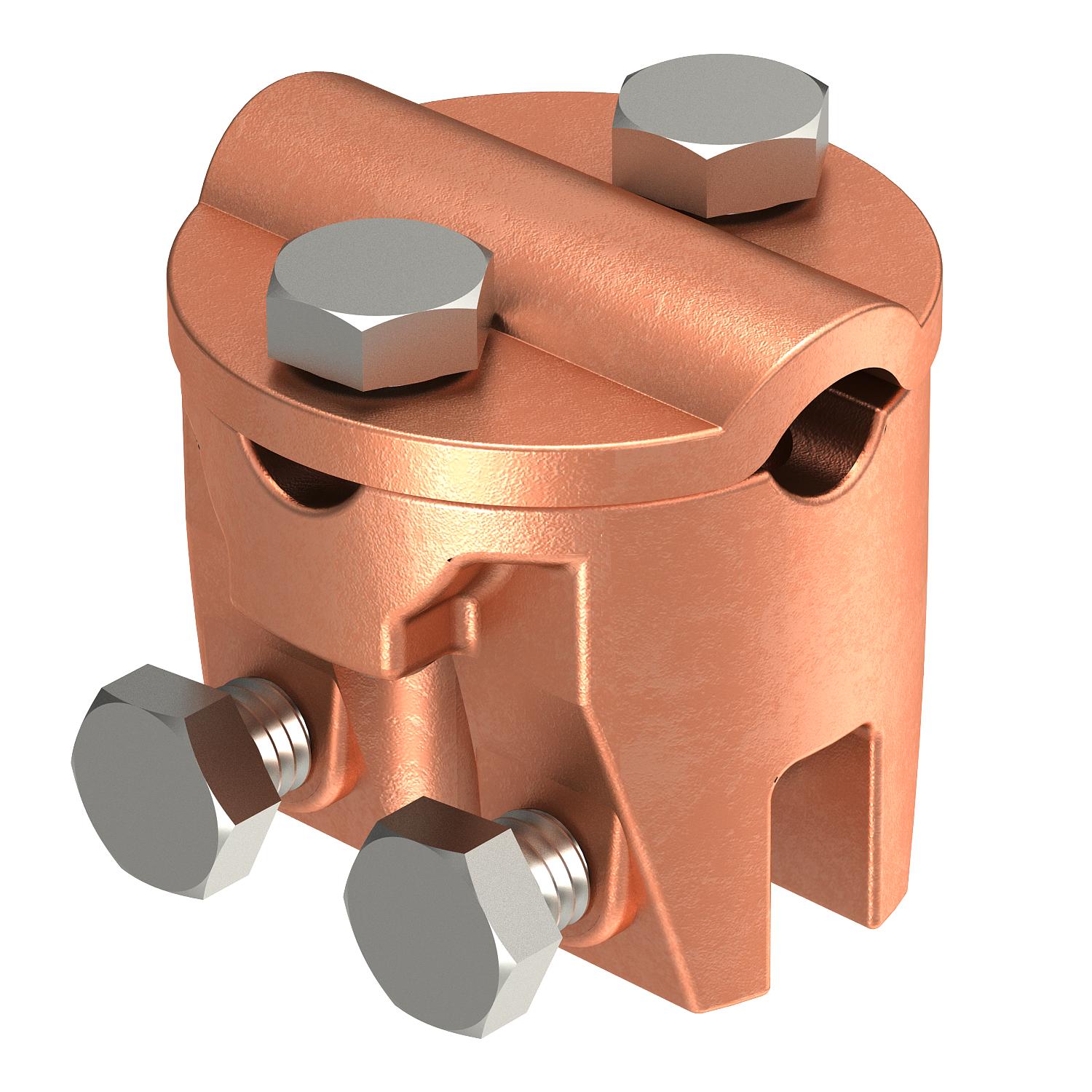

Folding clamp up to 7 mm plate thickness Cu

Item no. 5317053 | EAN 4012195420491

5317053 / 269 MS
Rd 8-10 mm
7 mm
Product description
Product description
• Plate thickness to 7 mm

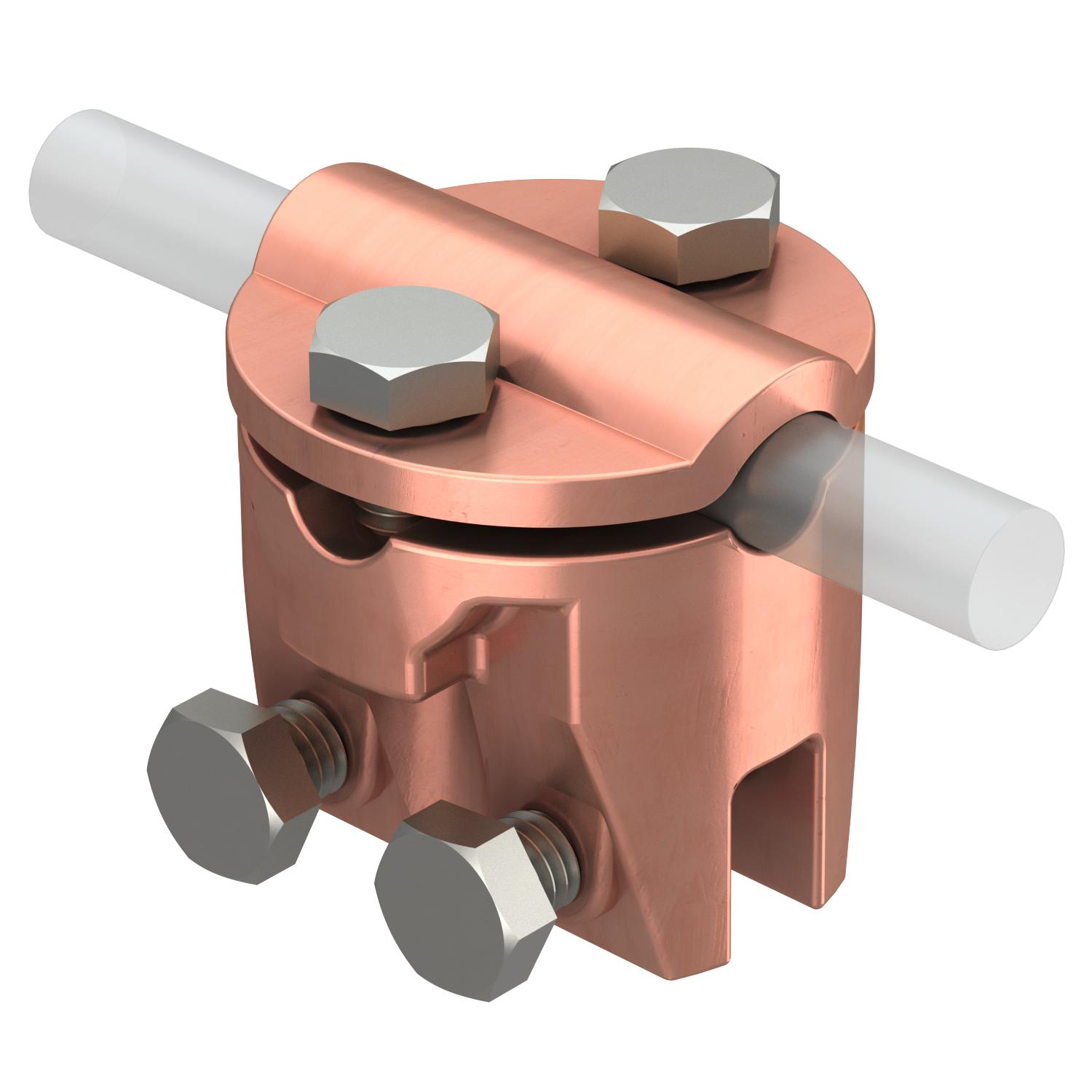

• For cable routing across and parallel to the plate with 4 hexagonal bolts M6 x 16
• Meets the requirements of VDE 0185-305 (IEC 62305)
  • Lightning current-tested
Technical data

Technical data

Clamping range, max. 7 mm
Dimension 8/10mm
Fit Rd 8-10 mm
Lightning current carrying capacity H/100 kA
Material Die-cast zinc
Surface Copper-plated
Type of connector Folding clamp
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Clamping range, max. Item no. Quantity SSU
269 MS Rd 8-10 mm 7 mm 5317053
10 piece
