Folding clamp up to 5 mm plate thickness FT
Item no. 5317401 | EAN 4012195420798
- Product description
-
Product description
• Plate thickness to 5 mm
• For conductor routing transverse and longitudinal to plate
• With 4 hexagonal bolts M6 x 12
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
• 271 Cu: with hexagonal bolts stainless steel (VA)
-
- Technical data
-
Technical data

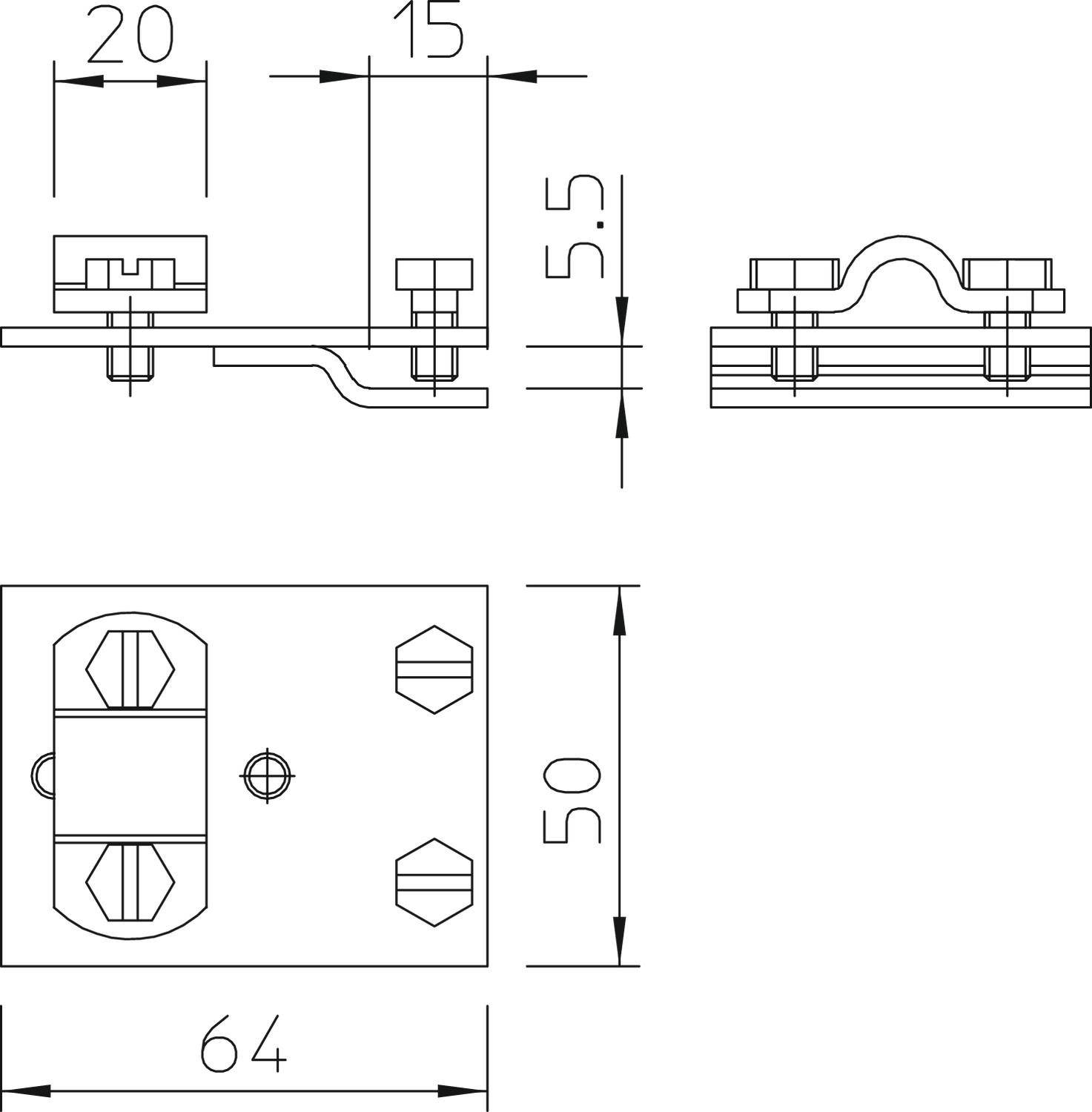

Clamping range, max. 5 mm Dimension 8/10mm Fit Rd 8-10 mm Lightning current carrying capacity N/50 kA Material Steel Surface Hot-dip galvanised Type of connector Folding clamp Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 271 8-10 / 5317401 , 0.14MB , pdfDeclaration of conformity 271 8-10 / 5317401 , 0.06MB , pdf
