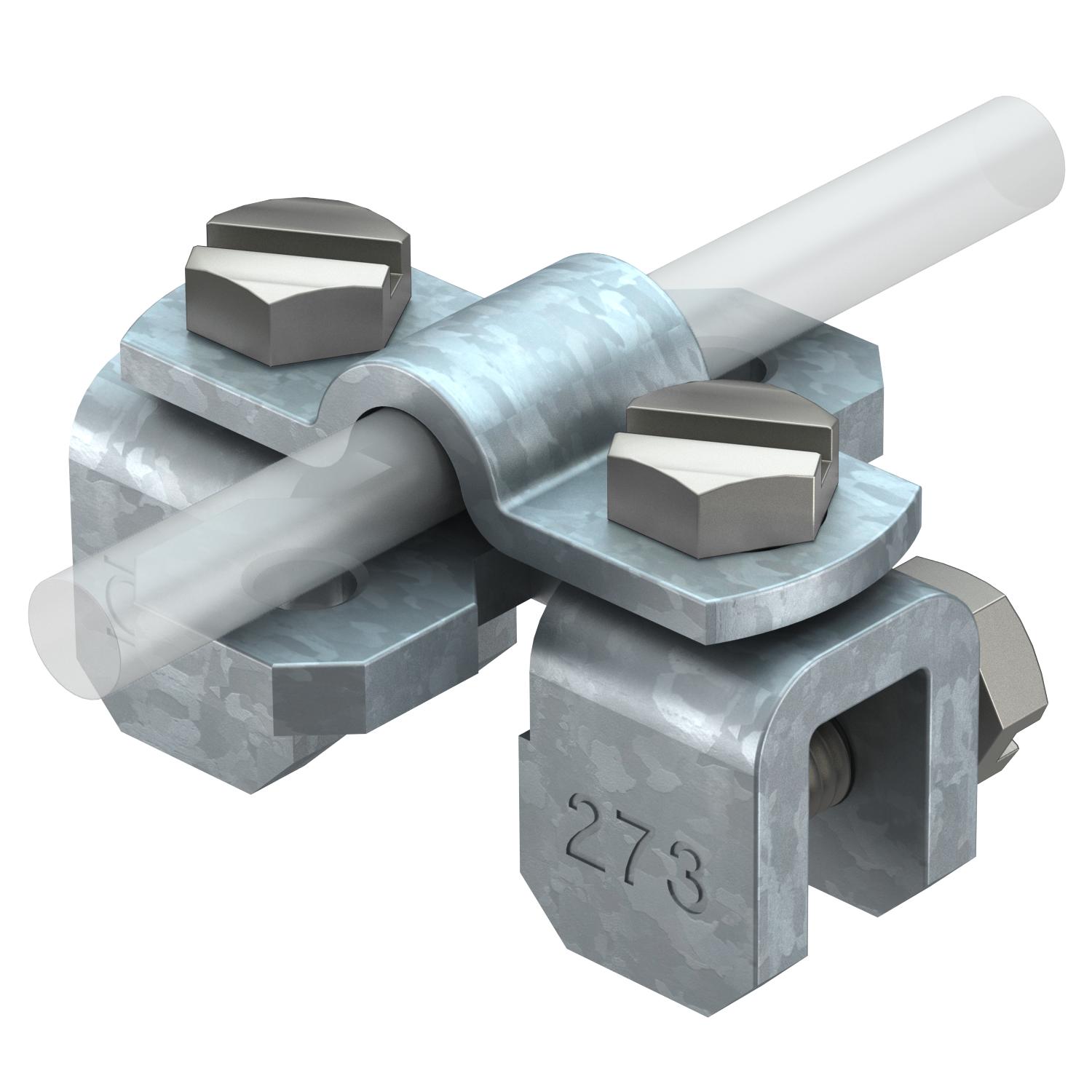

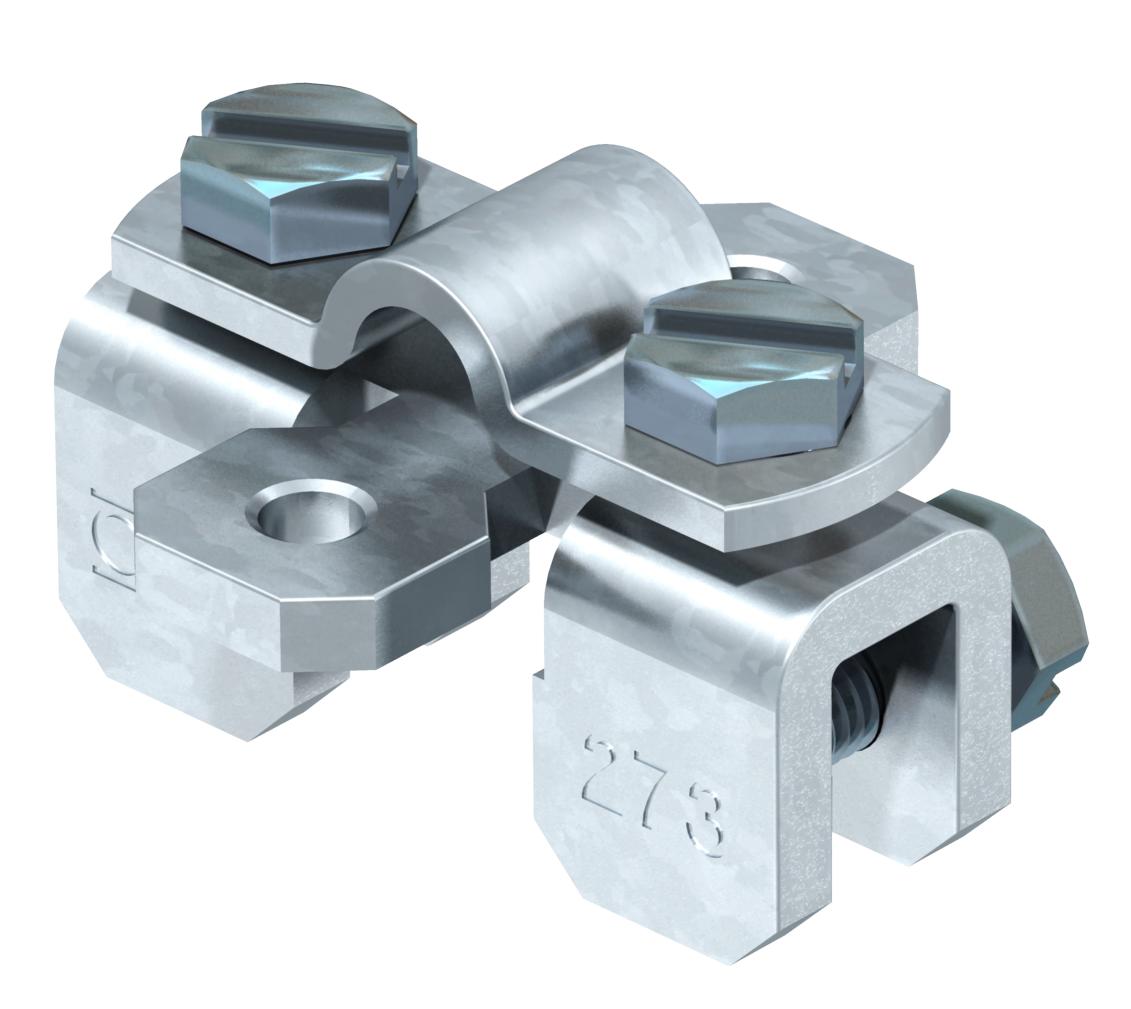

Folding clamp up to 10 mm plate thickness FT
Item no. 5317223 | EAN 4012195420613
- Product description
-
Product description
• Plate thickness to 10 mm
• Conductor routing transverse and longitudinal to plate with 2 hexagonal bolts M8 x 10 and 2 hexagonal bolts M8 x 16 (F)
• 273 Cu: with hexagonal bolts, stainless steel (VA)
-
- Technical data
-
Technical data

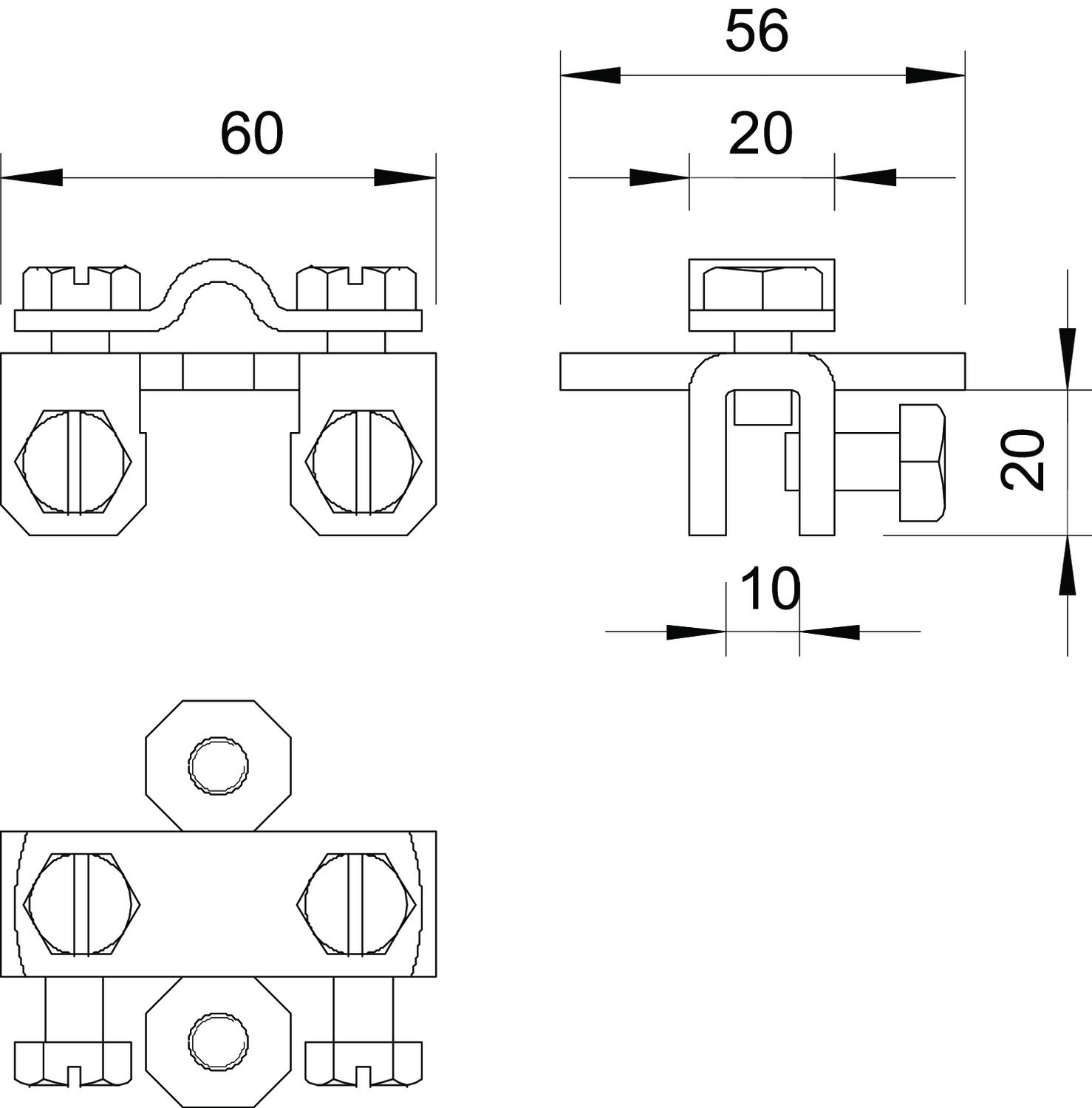

Clamping range, max. 10 mm Dimension 8/10mm Fit Rd 8-10 mm Lightning current carrying capacity N/50 kA Material Steel Surface Hot-dip galvanised Type of connector Folding clamp Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 273 8-10 / 5317223 , 0.15MB , pdfDeclaration of conformity 273 8-10 / 5317223 , 0.06MB , pdf
