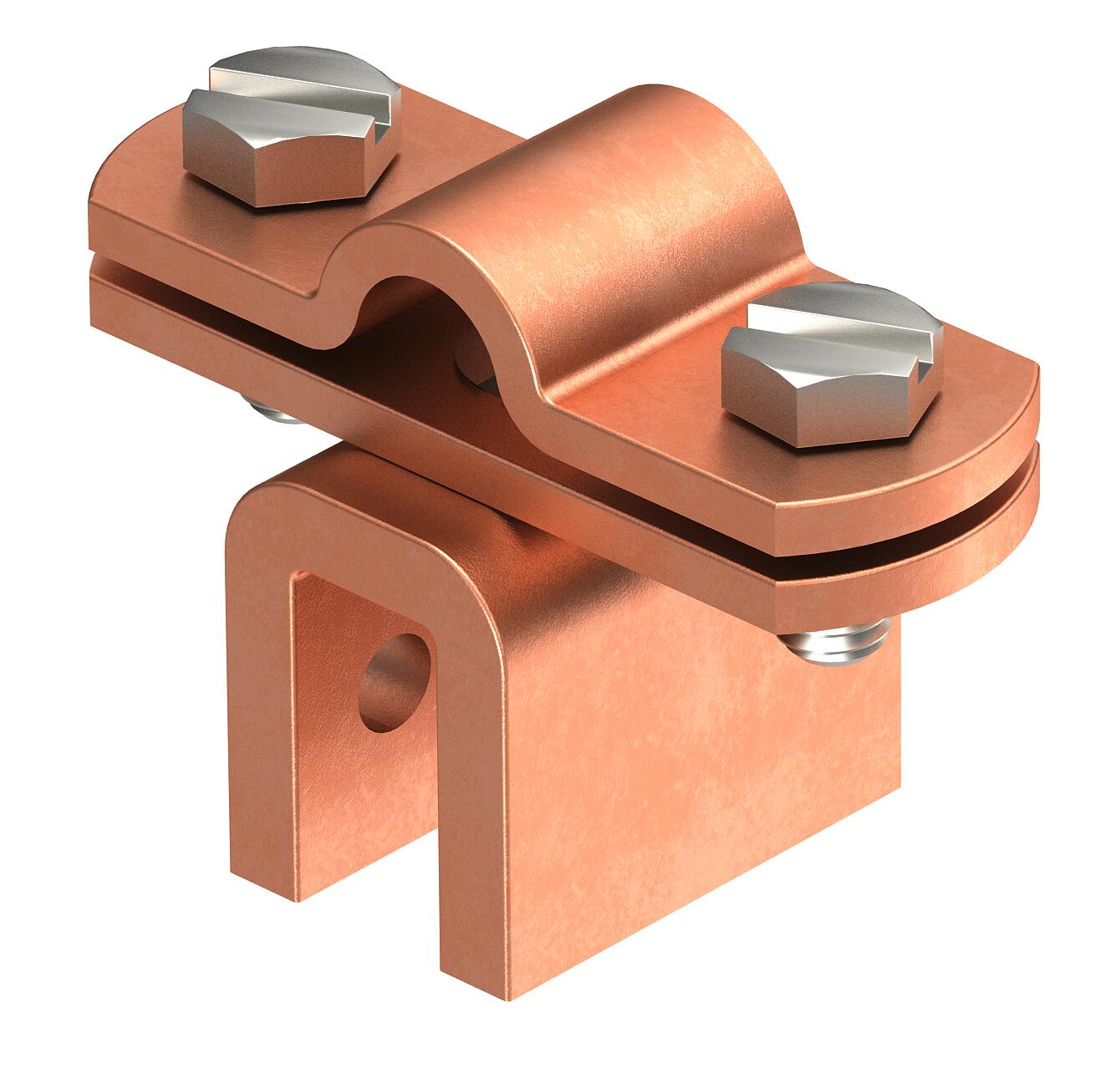

Folding clamp Rd 8-10 up to 10 mm plate thickness Cu

Item no. 5317258 | EAN 4012195420675

5317258 / 270 8-10 CU
Rd 8-10 mm
10 mm
Product description
Product description
• Metal thickness to 10 mm

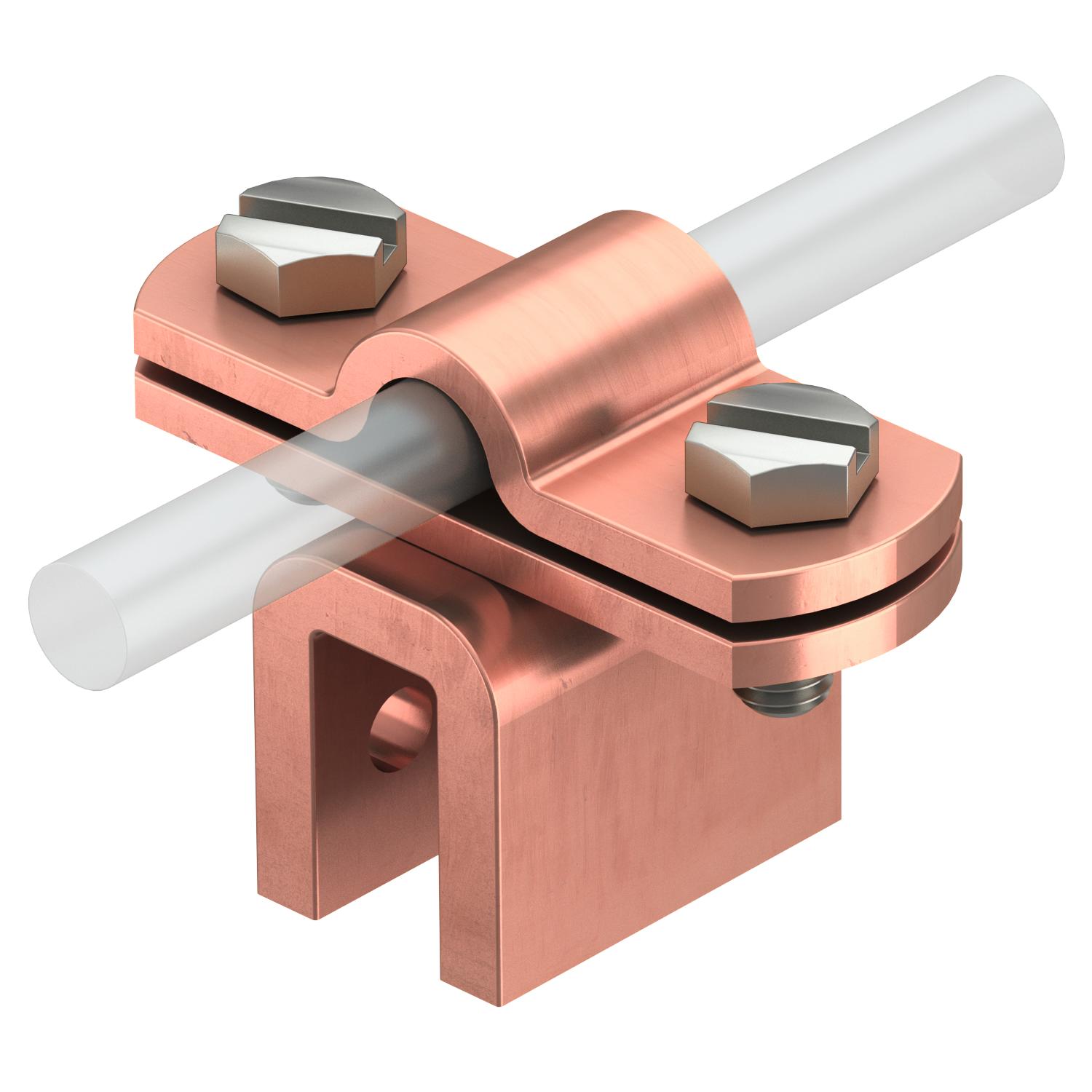

• For conductor routing transverse and in parallel to the plate

• Corresponds to the requirements to DIN V VDE V 0185-3 section 4.5
  • Lightning current-tested
Technical data

Technical data

Clamping range, max. 10 mm
Dimension 8/10mm
Fit Rd 8-10 mm
Lightning current carrying capacity H/100 kA
Material Copper
Type of connector Folding clamp
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Clamping range, max. Item no. Quantity SSU
270 8-10 CU Rd 8-10 mm 10 mm 5317258
10 piece
