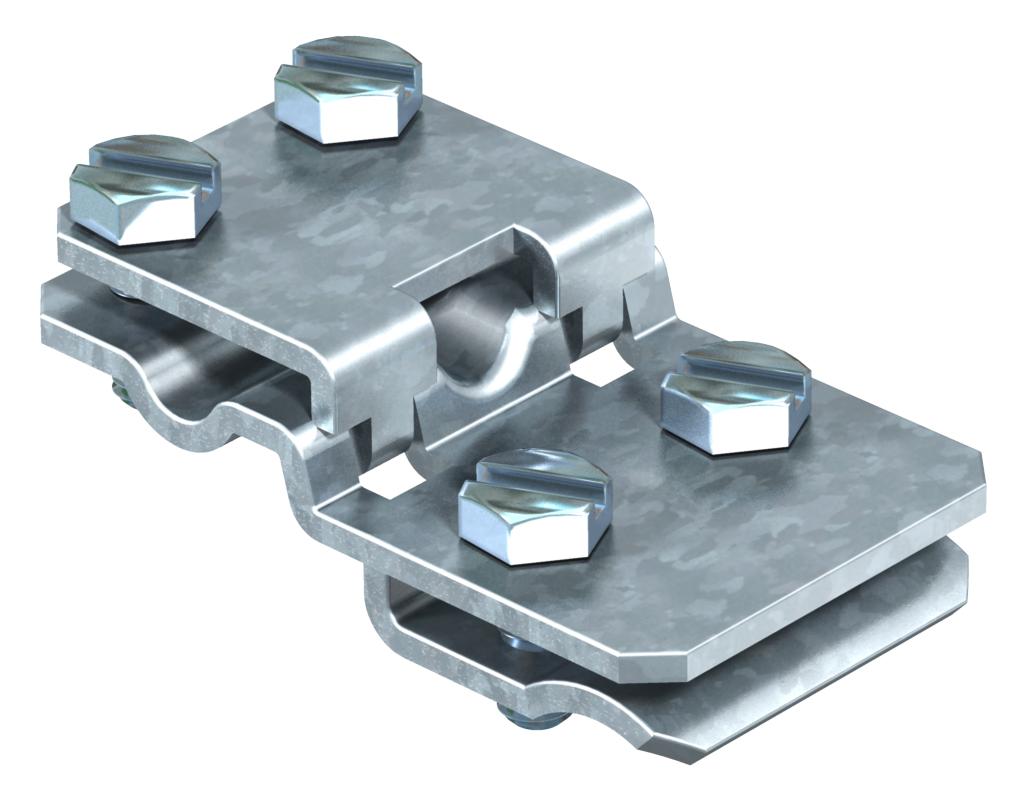

Folding clamp and connection terminal up to 5 mm FT plate thickness

Item no. 5317428 | EAN 4012195420859

5317428 / 274 FT
Rd 8 mm
5 mm
Product description
Product description
• Plate thickness to 5 mm

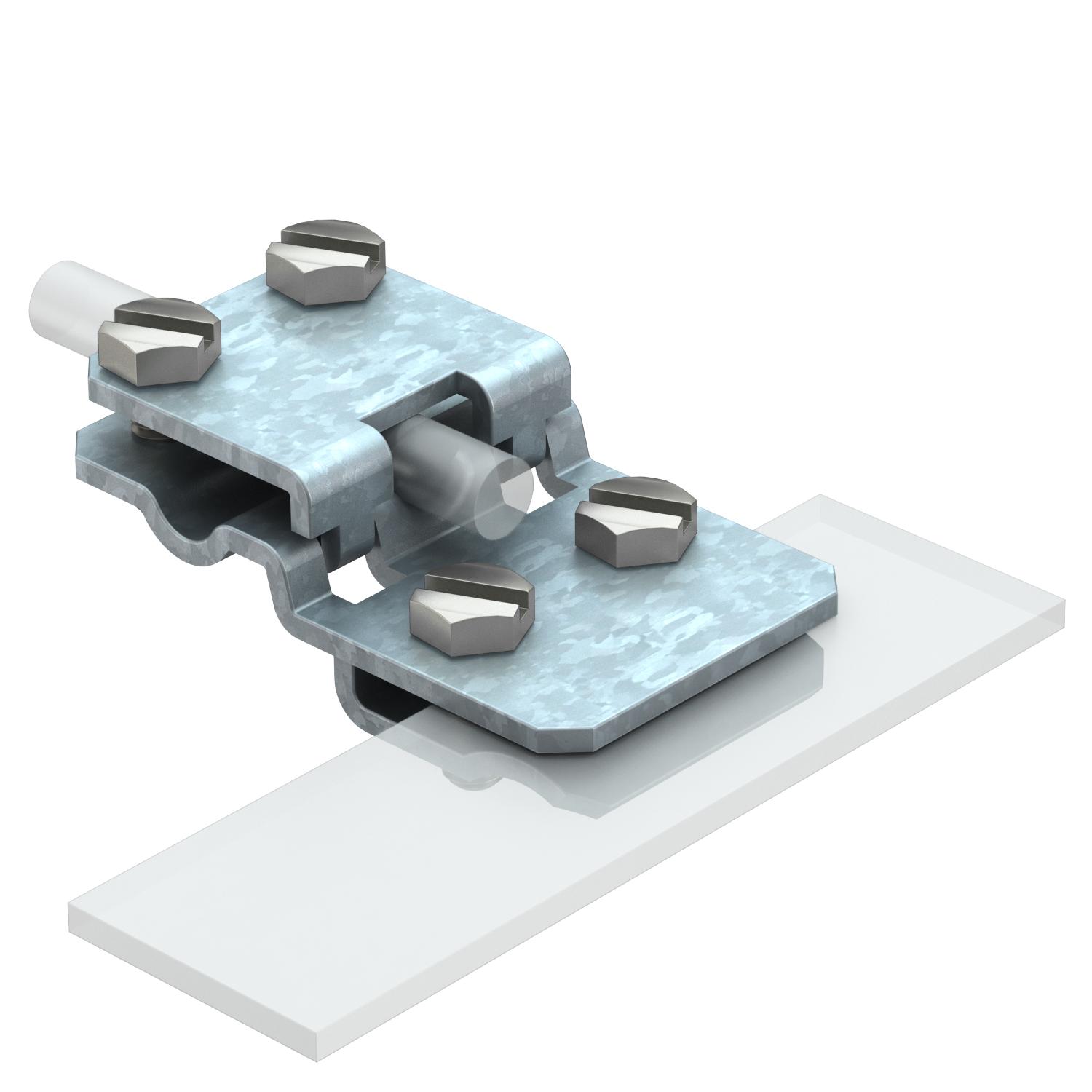

• For cable routing along and across the plate
• 4 hexagonal bolts M6 x 16
• Meets the requirements of VDE 0185-305 (IEC 62305)
  • Lightning current-tested
Technical data

Technical data

Clamping range, max. 5 mm
Dimension 8mm
Fit Rd 8 mm
Lightning current carrying capacity N/50 kA
Material Steel
Surface Hot-dip galvanised
Type of connector Folding clamp
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Clamping range, max. Item no. Quantity SSU
274 FT Rd 8 mm 5 mm 5317428
20 piece
Downloads

Download

Download
Download

EU declaration of conformity 274 FT / 5317428 , 0.06MB , pdf
Download
REACH Declaration of conformity 274 FT / 5317428 , 0.27MB , pdf
Download
RoHS Declaration of conformity 274 FT / 5317428 , 0.12MB , pdf
Download

274 FT / 5317428
Download
