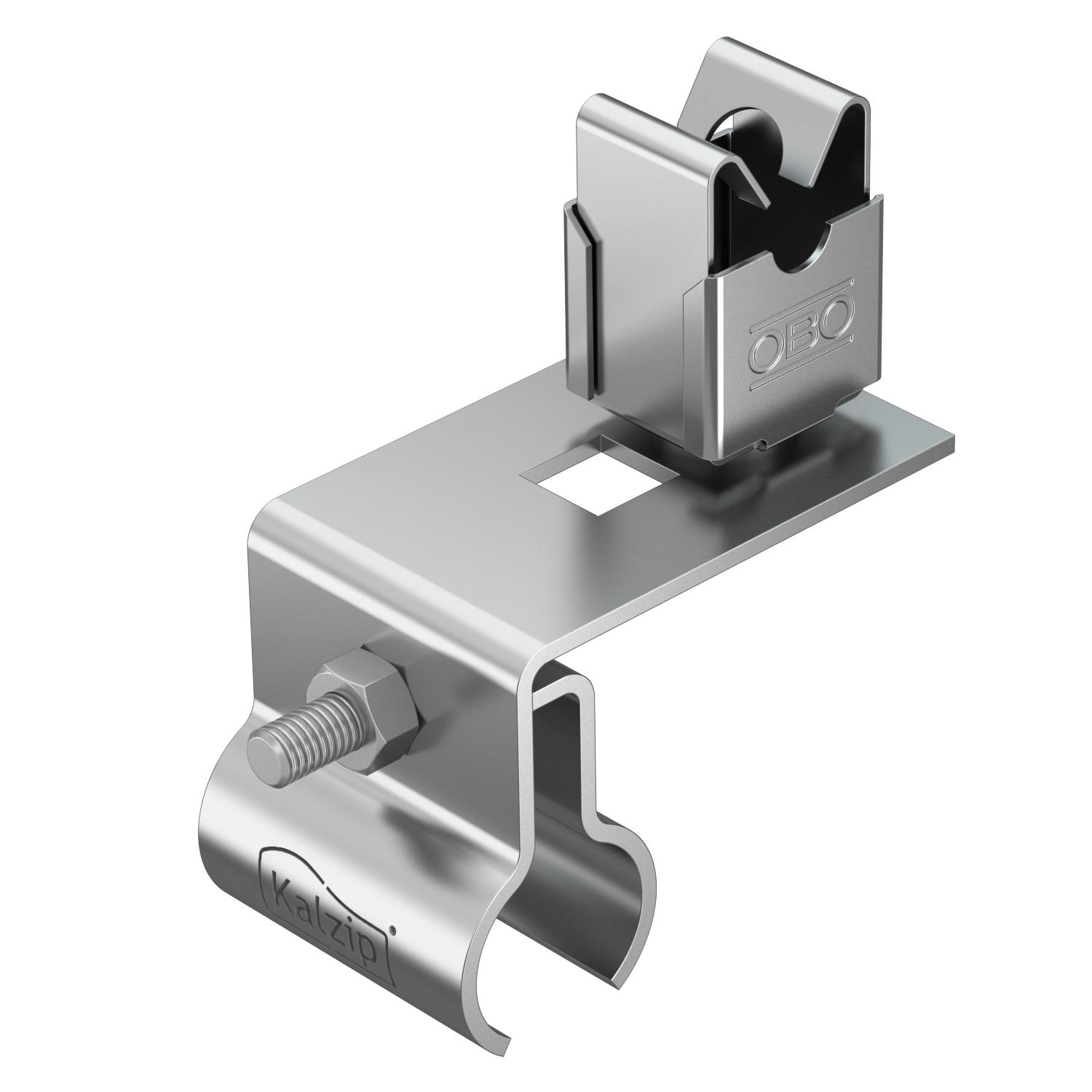

Folding and construction clamp

Item no. 5317512 | EAN 4012196622375

5317512 / RSF 177 20 VA M8
8 mm
8 mm
Product description
Product description
• For round standing seam systems, loose cable routing

• Manufacturer release by Kalzip

• Tested according to VDE 0185-561-4 (IEC/EN 62561-4)
  • Lightning current-tested
Technical data

Technical data

Clamping range, min. 8 mm
Dimension 8mm
Fit 8 mm
Material Stainless steel
Type of connector Folding clamp
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Clamping range, min. Item no. Quantity SSU
RSF 177 20 VA M8 8 mm 8 mm 5317512
50 piece
Downloads

Download

Download
Download

EU declaration of conformity RSF 177 20 VA M8 / 5317512 , 0.06MB , pdf
Download

RSF 177 20 VA M8 / 5317512
Download
