Folding and construction clamp, 10−20 mm Rd 8-10 | 20 | 10

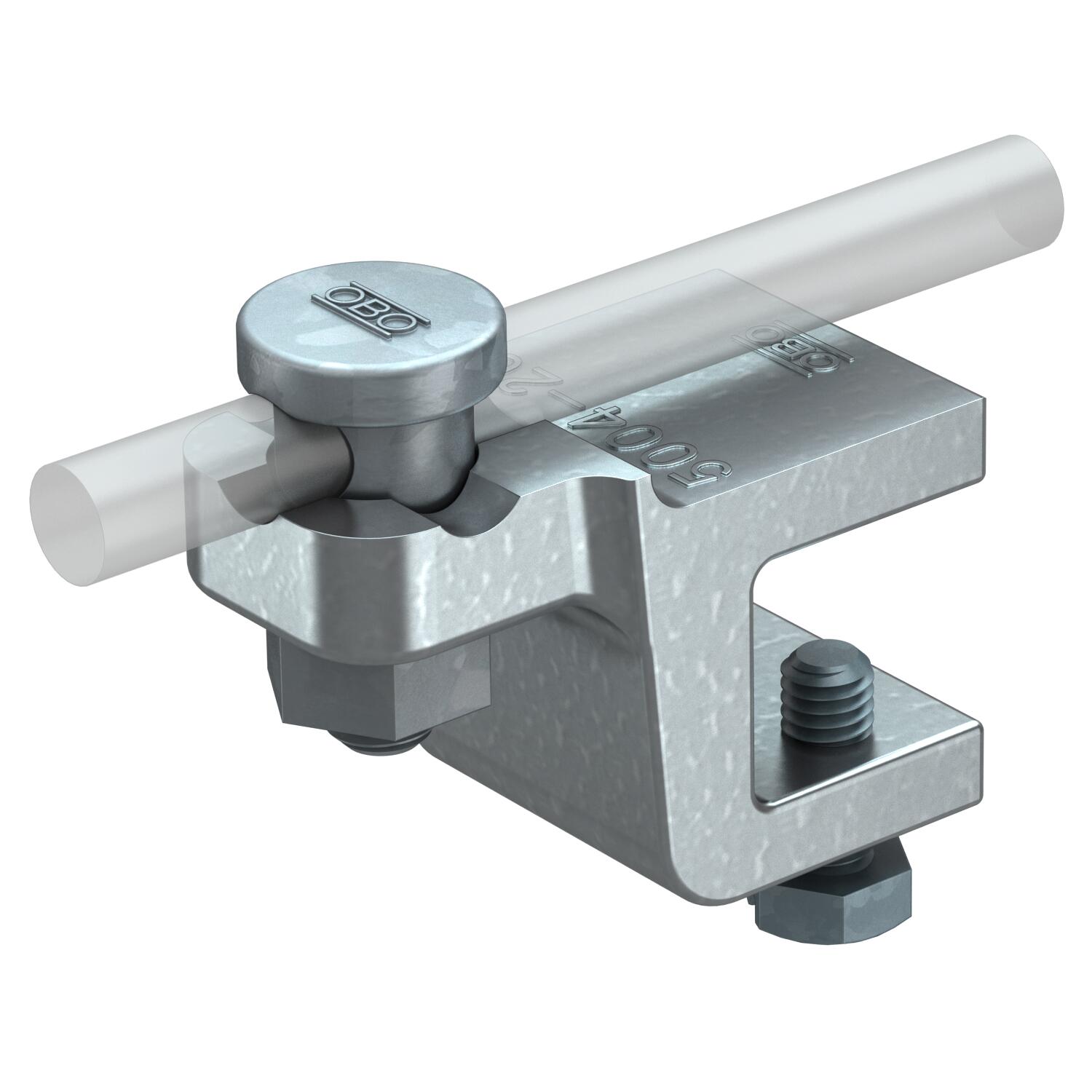

Folding and construction clamp, 10−20 mm

Item no. 5304504 | EAN 4012195416418

Item no. / Types

Fit	Rd 8-10 mm

Clamping range, max.

Clamping range, min.

Product description

Product description

• Flange thickness to 12 or 10−20 mm

• With pre-mounted fix contact clamping screw 5000

• 2 hexagonal bolts M8 x 20, bolts made of hot galvanised steel

• Terminal block made of malleable iron, hot galvanised

• Mounting of the round conductors either vertical or transverse to structure

• Corresponds to the requirements of DIN VDE 0185-305-3

Technical data

Technical data

Clamping range, max.	20 mm
Clamping range, min.	10 mm

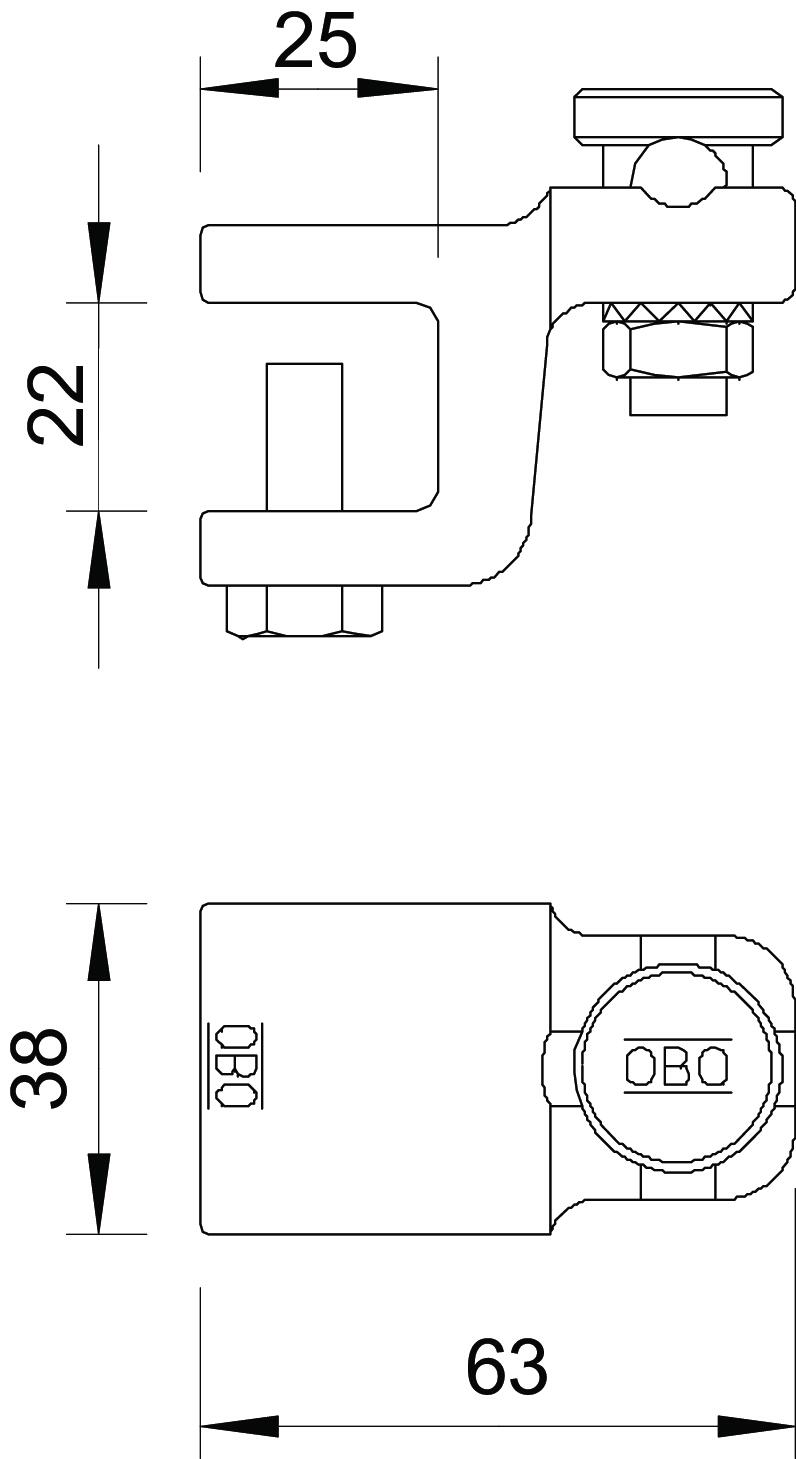

Dimension	20mm
Dimension L	63 mm
Dimension t	25 mm
Fit	Rd 8-10 mm
Intermediate plate	no

Lightning current carrying capacity	N/50 kA
Material	cast steel
Suitable for connection	Miscellaneous
Surface	Hot-dip galvanised
Type of connector	Clamp connector
Type of fastening screw	Clamping screw
