Flush-mounted connection box 80 45 | | 16/19 mm | 18

Flush-mounted connection box 80

Item no. 2003112 | EAN 4012195020479

Item no. / Types	2003112 / UV 80 K

Height	45 mm

for pipe diameter	16/19 mm

No. of entries	18

Product description

Product description

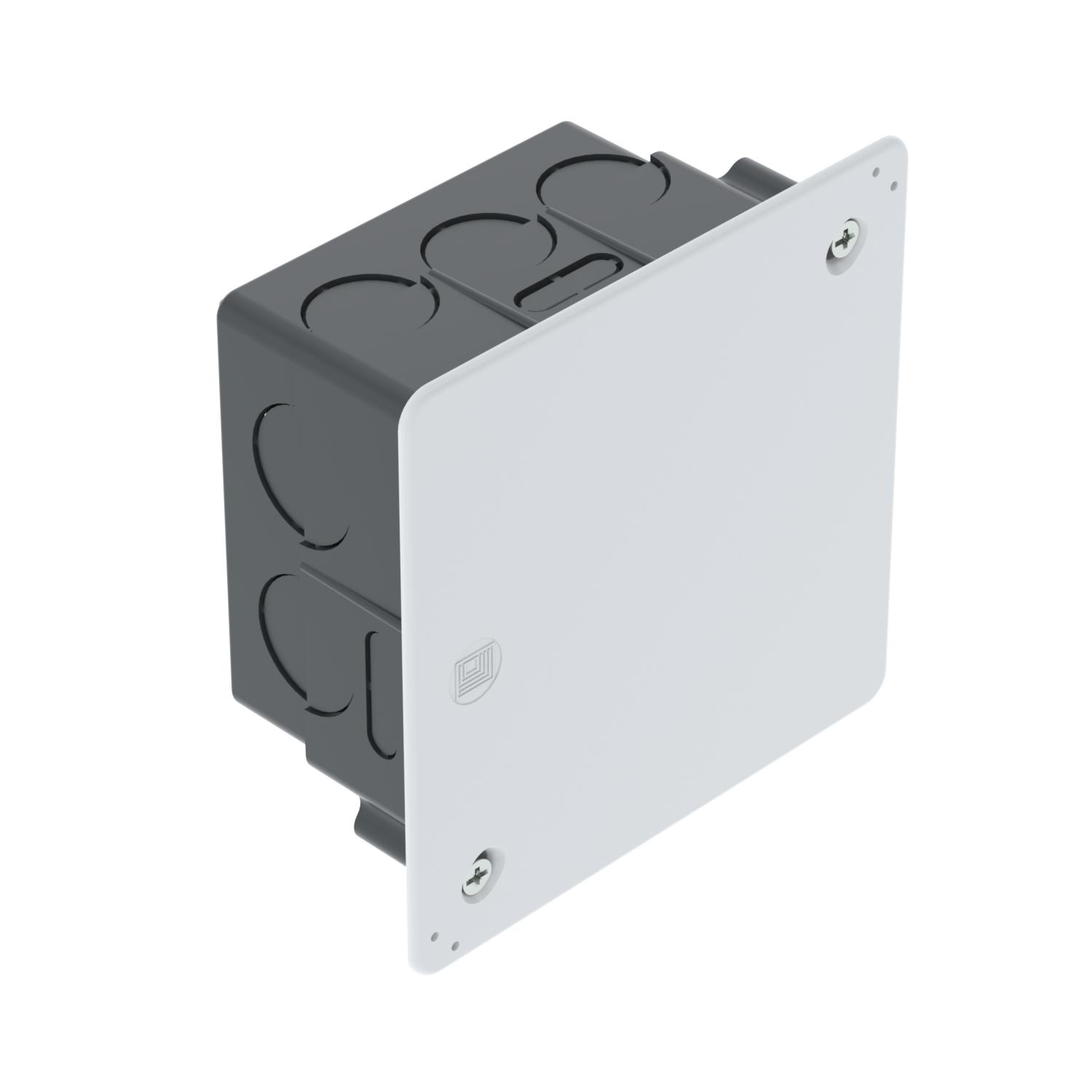

Flush-mounted connection box for clamping terminals, for use in masonry with an installation depth of at least 45 mm. With cover and cover screws (15 mm). Flat cover edge, roughened surface.

• 6 side entries of Ø 19 mm

• 4 side entries of Ø 21.5 mm

• 4 side entries for flat cables/ribbon cables

• 2 entries of Ø 21.5 mm in the base

• 2 entries for flat cables/ribbon cables at the base

Technical data

Technical data

Airtight	no
Colour	Black
Cover	Not transparent
Cover fastening	Screwed

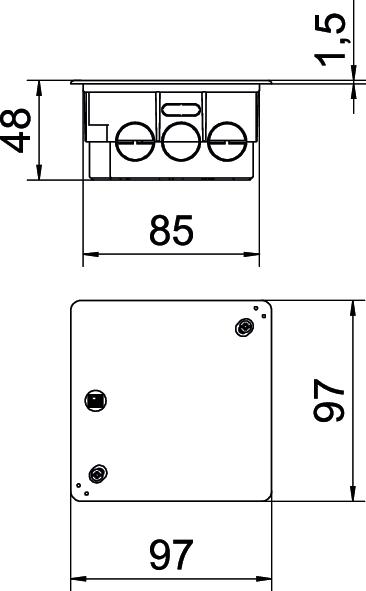

Dimension	80x80x45
Dimension A	102 mm
Dimension B	97 mm
Dimension H	45 mm
Dimension L	85 mm
Entries	18
Entry from rear	no
Equipment	Without
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Floor height, min.	47 mm
for pipe diameter	16/19 mm
Halogen-free	no
Height	45 mm

Impact-resistant	yes
Length	80 mm
Maintain electrical functions	Without
Material	Polystyrene
No. of entries	18
Nominal cross-section, min.	4 mm²
Protection rating	IP20
Rated voltage	400 V
Sealable	no
Shape	Square
Support	Without
Type of housing penetration	Pre-marking
Type of insertion…	NYM cables, data cables and corrugated pipes
Width	80 mm
With bolts	no
With nail strap	no
With screening	no
